USA TELECASTERS
Rarities Series (2019)
Decal:
Colors:
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 017-6505-821
BODY
Wood: Chambered Roasted Alder with Flame Maple Top
Lacquer: Gloss Urethane
Shape: Standard Telecaster
Pickguard: 4-Ply Tortoiseshell
Serial: Headstock Rear / US-serial
NECK
Wood: Maple
Fretboard Material: Maple
Neck Lacquer: Satin Urethane
Neck Profile: Modern "C"
Headstock: Standard Tele
Nut Width: 1.685" (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6105 Narrow / Tall
Trussrod: Bi-Flex Headstock Adjust 1/8" Hex (Allen)
MicroTilt: Yes
Contoured Heel: No
HARDWARE
Bridge: CBS Era Vintage 3 Saddle String Trough
Bridge Marking: FENDER Pat.No DES.164227 / 2.573.254"
Saddle: Compensated Steel Barrels
Tuners: Standard Fender Die Cast Sealed Tuners ⚙︎
String Tree: Ezy-Glide
Knobs: Knurled Chrome Flat-Top
Neckplate: 4-Bolt "Fender LIMITED EDITION"
ELECTRONICS
Switch: 3-Way Blade / Top-Hat Switch Tip
Wiring: Standard N/BN/B
Pickup Config: HS
Neck Pickup: Fender Shawbucker 1T
Bridge Pickup: Hot Vintage-Style Single-Coil
CASE: Brown Hardshell Case
DESCRIPTION:

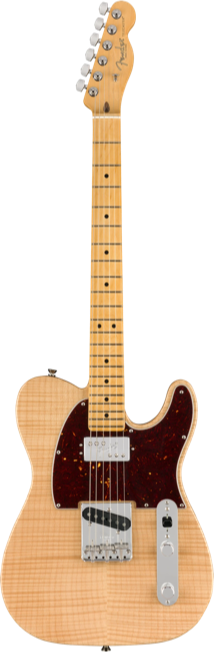

Combining exotic tone woods with premium pickups and appointments, the limited-edition Rarities Collection creates a truly unique musical experience. The Rarities Flame Maple Top Chambered Telecaster features a chambered, two-piece roasted alder body with a natural flame maple top, separated by a black center stripe. The Tim Shaw custom-designed '50s vintage-style bridge pickup adds a hotter classic voice to the sweet-sounding ShawBucker™ 1T humbucking pickup in the neck position.
Natural (821)
