USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

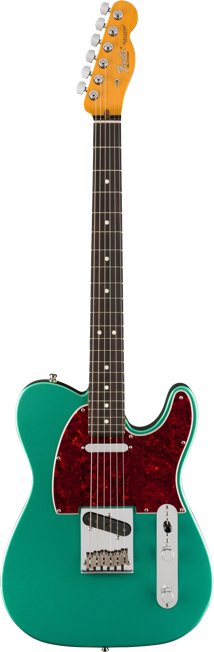

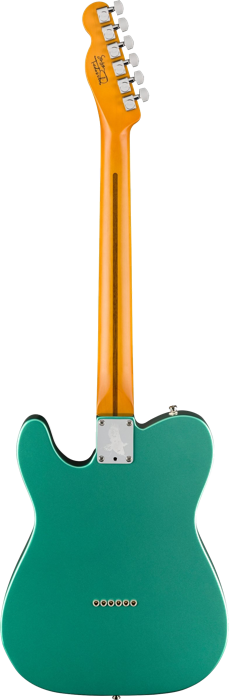

Model# 011-6800-794
BODY
Wood: Alder
Lacquer: Gloss Polyurethane
Shape: Standard Telecaster
Pickguard: 4-Ply Tortoise Shell
Serial: Front Headstock Under Decal / ST+6.digits
NECK
Wood: Maple
Fretboard: Slab Rosewood
Neck Lacquer: Satin Urethane
Neck Profile: Modern "C"
Neck Thickness .810 -.865 (20.6 - 22.0mm)
Headstock: Standard Tele
Nut Width: 1.66" (42.1 mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: Medium Jumbo
Trussrod: Headstock Adjust
MicroTilt: Yes
ContouredHeel: No
HARDWARE:
Bridge: Modern Flat 6-Saddle String-Thru
Bridge Marking: None
Saddle: Satin Block Steel Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners ⚙︎
StringTree: Ezy-Glide
Knobs: Knurled Flat Top
Neckplate: 4-Bolt / "Flying American Eagle" Laser engraved
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard B/BN/N - Master Volume / Master TBX Tone Control
PickupConfig: SS
Neck Pickup: Custom Susan Tedeschi Single-Coil / Chrome Cover
Bridge Pickup: Custom Susan Tedeschi Single-Coil
STRINGS Factory issue .010-.046 Nickel plated strings
CASE: Deluxe Black Hardshell (Black Crushed Velvet Interior)
Colors:
Caribbean Mist (847)
