USA TELECASTERS
American Standard Series (April 1988 - Aug. 2000)
COLORS:
Black (706)
Brown Sunburst (732)
Lipstick Red (715) 1993-1995
Vintage White (741) 1988-1996
Olympic White (705) 1997-
Candy Apple Red (709) 1996-
3-Tone Sunburst (700) 1998-
Purple Metallic (793) 1998-
Black (706)
Vintage White (741) 1988-1996
Brown Suburst (732)1988-1997
Gun Metal Blue (768) 1988-1992

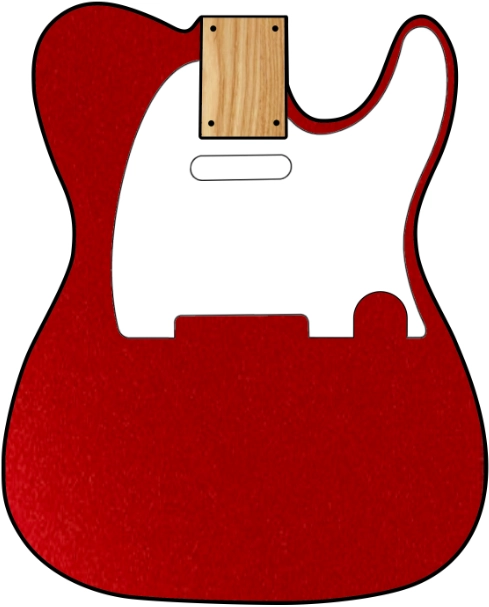

Crimson Metallic (725) 1989-1990
Midnight Blue (773) 1990-1996
Midnight Wine (775) 1990-1996
Frost Red (777) 1990-1992

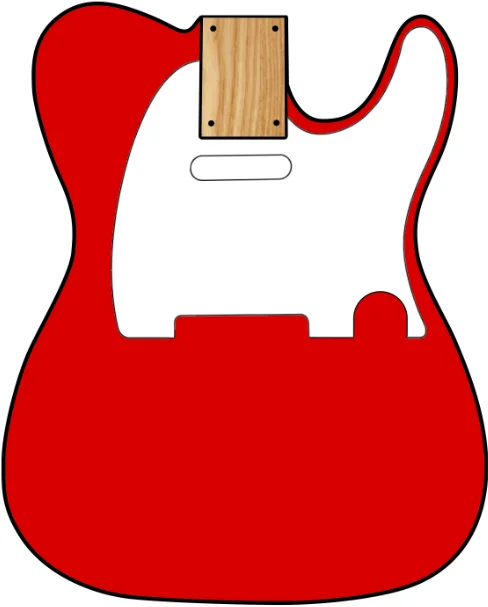

Lipstick Red (715) 1993-1995
Caribbean Mist (747) 1993-1995
Crimson Burst (728) 1995-1996
Electric Blue (787) 1995-1996
Candy Apple Red (709) 1996-1998
Sonic Blue (722) 1996 only
Lake Placid Blue (702) 1997-1998
Olympic White (705) 1997-2000

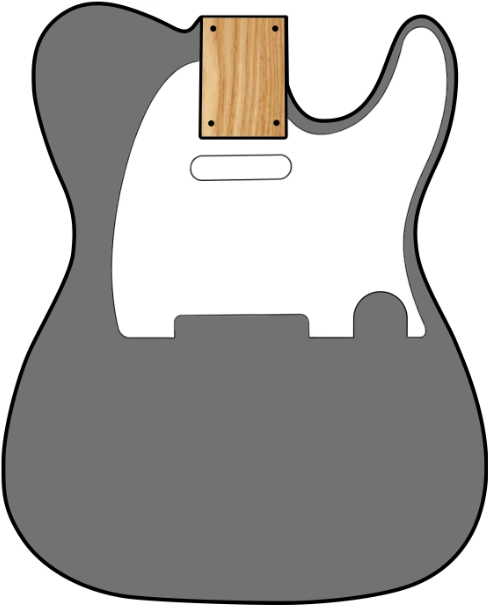

Inca Silver (724) 1997-2000
Natural (721) 1998-2000 Ash Body
3-Tone Sunburst (700) 1998-2000
Aqua Marine Metallic (774) 1998-2000
Purple Metallic (793) 1998-2000
White Blonde (701) 1999-2000 Ash Body
Model# 010-8400-XXX (Rosewood)
Model# 010-8402-XXX (Maple)
Model# 010-8422-XXX (Maple) (Left Handed) (1995-)
BODY
Wood: Alder / Ash (701) (721)
Lacquer: Polyurethane
Shape: Standard Telecaster
Serial: Front headstock N/Z-Serial
NECK
Wood: Maple
Fretboard: Maple / Rosewood
Neck Lacquer: Polyurethane
Neck Profile: Modern "C"
Neck Thickness .820”-.870” (20.8–22.1mm)
Headstock: Standard Tele
Nut Width: 1.685" (42.8mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo (.106–.036)
Trussrod: Standard Headstock-Adjust
MicroTilt: Yes
Contoured Heel: No
HARDWARE
Bridge: Modern 6-Saddle Flat String-Thru
Bridge Marking: None
Saddle: Offset Satin Block Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners
String Tree: Ezy-Glide
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt / Slanted "Fender" logo
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard Wiring (N/NB/B)
Pots:
Pickup Config: SS
Neck Pickup: Standard Hot single-coil
Bridge Pickup: Standard Hot single-coil
RWRP: No
ACCESSORIES & INFO
STORAGE: Molded Hardcase
PRICE: $649.99 (1988)
Successor: American Series Telecaster
Wiring Diagram
Service Manual
DECAL:
