COLORS:

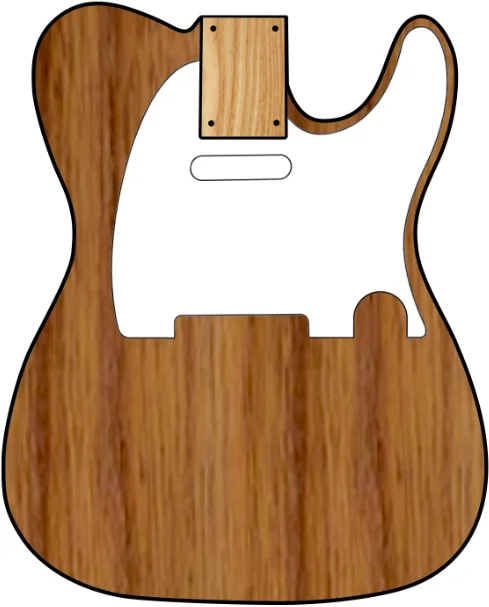

Natural Roasted Ash (821)
Model# 017-0232-821
BODY
Wood: Roasted Ash
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: Anodized Black Pickguard (5-Hole)
Serial: Stamped On Bridge / V+7 digits
NECK
Wood: Roasted Maple
Fretboard: Roasted Maple
Neck Lacquer: Satin Nitrocellulose Finish
Neck Profile: "U"-Shape
Neck Thickness .870”–.990” (22.1–25.15mm)
Headstock: Standard Tele
Nut Material: Bone
Nut Width: 1.650" (42mm)
Scale: 25.5"
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage Frets (.078–.043)
Trussrod: Bi-Flex - Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Vintage 3-Saddle String-Thru
Bridge Marking: Fender Pat.Pend + Serial
Saddles: Vintage Brass Barrel-Saddles
Tuners: Pure Vintage Gotoh SD91 Split Shaft (Single-Line)
String Tree: 50's Round Button
Knobs: Knurled Dome
Neckplate: 4-Bolt, Blank Plate
Control Plate: Chrome Standard
Strap Buttons: Standard
ELECTRONICS
Switch: 3-Way Blade / Barrel Switch-Tip
Wiring: Standard Modern Wiring (N/NB/B)
Potentiometers:
• 1x CTS 250k Master Volume
• 1x CTS 250k Master Tone
Pickup Config: SS
Neck Pickup: American Vintage '52 Single-Coil Tele
Bridge Pickup: American Vintage '52 Single-Coil Tele
ACCESSORIES & INFO
STORAGE: Updated Vintage Tweed Hardcase
STRINGS: Nickel Plated Steel .010-.046
200 Guitars made
Not to be confused with the George Harrison Tribute Telecaster
