COLORS:

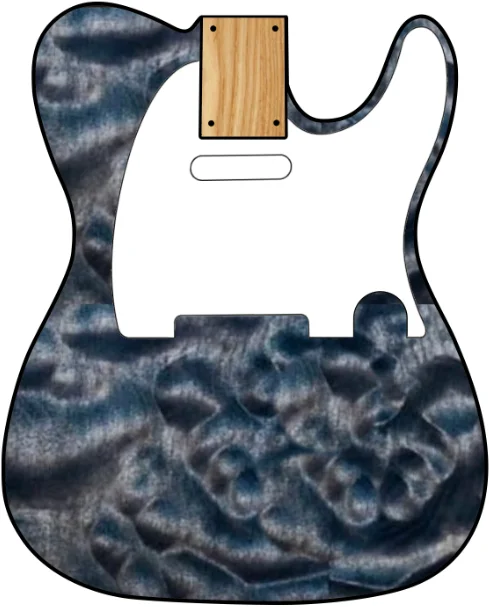

Blue Cloud (887) (Natural Backside)
Model# 017-5607-887
BODY
Wood: Ash with Quilted Maple Top / Natural Back
Lacquer: Gloss Nitrocellulose
Binding: Black Top Binding
Shape: Standard Telecaster
Pickguard: 3-Ply Black (8-Hole)
Serial: Stamped on Neckplate / LE + 5 digits
NECK
Wood: Quartersawn Maple
Fretboard: European Maple (Imported)
Neck Lacquer: Satin Urethane
Inlay: Black Pearloid Dots
Neck Profile: ‘60s "C"
Neck Thickness .825–.925 (21.0–23.5mm)
Headstock: Standard Tele
Nut Material: Natural Bone
Nut Width: 1.650" (42mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 21
Fretwire: 6150 Vintage Tall (.085-.045)
Trussrod: Single Actio, Heel-Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Vintage 3-Saddle String-Thru
Bridge Marking: 60's CBS FENDER Pat.No DES.164227 / 2.573.254
Saddles: Compensated Brass Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners
String Tree: Butterfly
Knobs: Knurled Flat-Top
Control Plate: Chrome Standard
Strap Buttons: Standard
Neckplate: 4-Bolt "Fender Limited Edition" plate
ELECTRONICS
Switch: 3-Way Blade / Top-Hat Switch Tip
Wiring: Standard Wiring (N/NB/B)
Potentiometers:
Pickup Config: SS
Bridge Pickup: Pure Vintage '64 Gray-Bottom Single-Coil Tele
Neck Pickup: Custom Shop '51 Single-Coil Nocaster pickup
ACCESSORIES & INFO
STORAGE: Brown Hardshell
STRINGS .009-.042 Nickel Plated Steel
