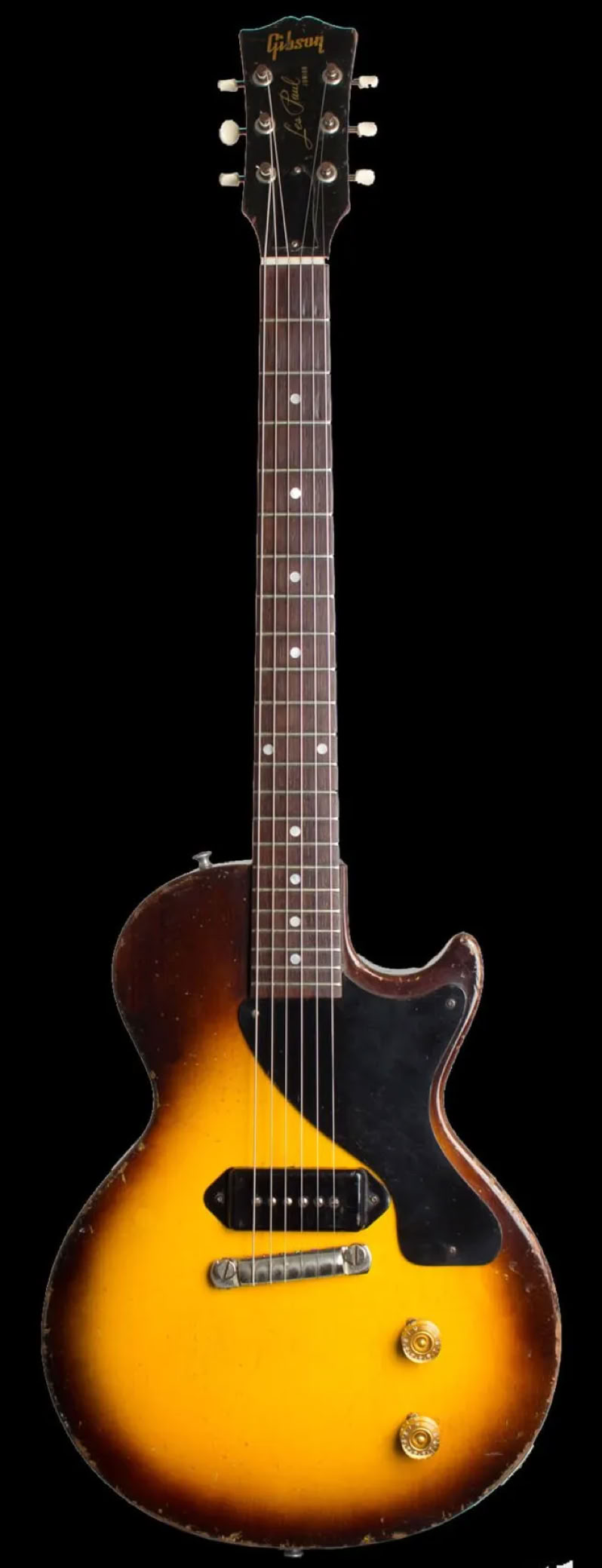

Les Paul Junior 1954

Kalamazoo 1954-1955

COLORS:

Sunburst

BODY:

Body Wood: Slab Mahogany (Few had Maple)

Binding: None

Top Wood: None

Lacquer: Color Lacquer

Finish: Nitrocellulose


NECK:

Neck Wood: Mahogany

Nut: Nylon (Molded)

Binding: None

Neck Angle: Very Low (0-1°)

Headstock Logo: Gold Gibson Silkscreen Print

Serial: Yellow Ink Stamped

Fretboard Material: Rosewood

Inlay: Pearloid Dot

Neck Lacquer: Black Nitrocellulose

Neck Top-Coat: Nitrocellulose

Neck Profile: Medium/Thick "C"

Nut Width: 1 11/16" (43 mm)

Scale: 24.75" (628.65mm)

Radius: 12"

#Frets: 22

OG Fretwire: NS Low Narrow Frets

Trussrod: Standard Headstock

Bolt-On Type: Glued Set-Neck (at 16th Fret)


HARDWARE:

Bridge Type: Nickel plated Zink, One piece Wraparound Tailpiece / 2-Stud

Tailpiece: None

Saddles: None (On Tailpiece)

Tuners: Kluson Strip (2 x 3 on-Plate tuners) with White Plastic buttons


PLASTIC:

Knobs: Gold Speed Knobs

Pickguard: Black Single Layer

Back Cover: Black Plastic

Trussrod Cover: Black Single Ply

Jack Cover: 3 Ply B/W/B Plastic


ELECTRONICS:

Switch: None

Pickup Config: S

Wiring: Standard: One Master Volume and One- Master Tone

Capacitor: Grey Tiger 0.22mfd

Pots: 500k Centralab

Bridge Pickup: Single-Coil P-90 "Dog Ear" Black Cover

INFO:

Released as a budget/student version with no binding, 2 Pots, 1 pickup and slab body. The Junior was a great success for Gibson. In later years, they were found to be a perfect tool for Punk music in the 80´s. Simple guitar for simple music..

If required, you could order this at a 3/4 scale. But these are very rare today, and not very collectible actually.

Color can vary between brown sunburst to bright Yellow Sunburst.


The '54 has the pickup very close to the bridge and short insert, which has proven to be prone to the bridge starting to break up the wood later on. This was corrected in 1956. Longer post were sunk into the body and pickup was slightly moved away.
