COLORS:
Goldtop Gold - Sunburst
Kalamazoo 1958
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage

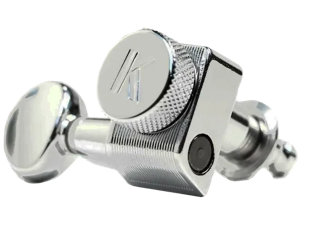

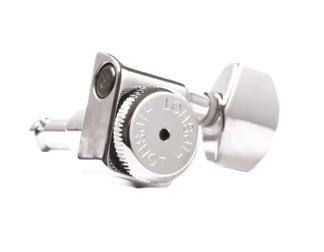

Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
BODY:
Body Wood: Mahogany
Binding: Royalite White Binding
Top Wood: Carved Maple Cap2-Piece
Lacquer: Color Nitrocellulose
Finish: Gloss Nitrocellulose
Rear Finish: Brown Tint Nitro Lacquer
NECK:
Neck Wood: Mahogany
Nut: Nylon (Molded)
Neck Angle: 4°
Headstock Logo: Pearl Inlay Gibson / "Les Paul Model" Gold Silkscreened
Serial: 8 xxxx
Binding: White Cellulose Acetate Butyrate Binding
Fretboard Material: Brazilian Rosewood
Inlay: Pearloid Trapezoid
Rear Neck Finish: Lacquer: Brown Tint Nitro (On Goldtop)
Lacquer Cherry Red (On Sunbursts)
Neck Top-Coat: Nitrocellulose
Neck Profile: Medium "C"
Nut Width: 1-11/16" (43mm)
Scale: 24 3/4"
Radius: 12"
#Frets: 22
OG Fretwire: NS Narrow Frets
Trussrod: Standard Headstock
Bolt-On Type: Glued Set-Neck
HARDWARE:
Bridge Type: ABR-1 Nickel plated Zink (No Wire Retainer)
Tailpiece: ABR Aluminum
Saddles: ABR Nickel-Plated Brass Saddles
Tuners: Kluson Unbranded / Single Ring Keystone Buttons
PLASTIC:
Knobs: Gold Speed Knobs (Tenite Butyrate Plastic)
Back Covers: Burgundy Plastic
Switch Plate: White Plastic
Trussrod Cover: White Plastic with Black Top-Ply
ELECTRONICS:
Switch: 3-Way Switchcraft / White Tip
Pickup Config: SS
Wiring: Vintage Wiring
Capacitor: Sprague Black Beauty (BumbleBee) 0.22mfd PIO
Pots: 500k Centralab
Neck Pickup: Seth Lover PAF Humbucker Pickups
Bridge Pickup: Seth Lover PAF Humbucker Pickups
Case: Lifton 4-Latch, Brown "California Girl" Hardcase w/ Pink Lining
INFO:

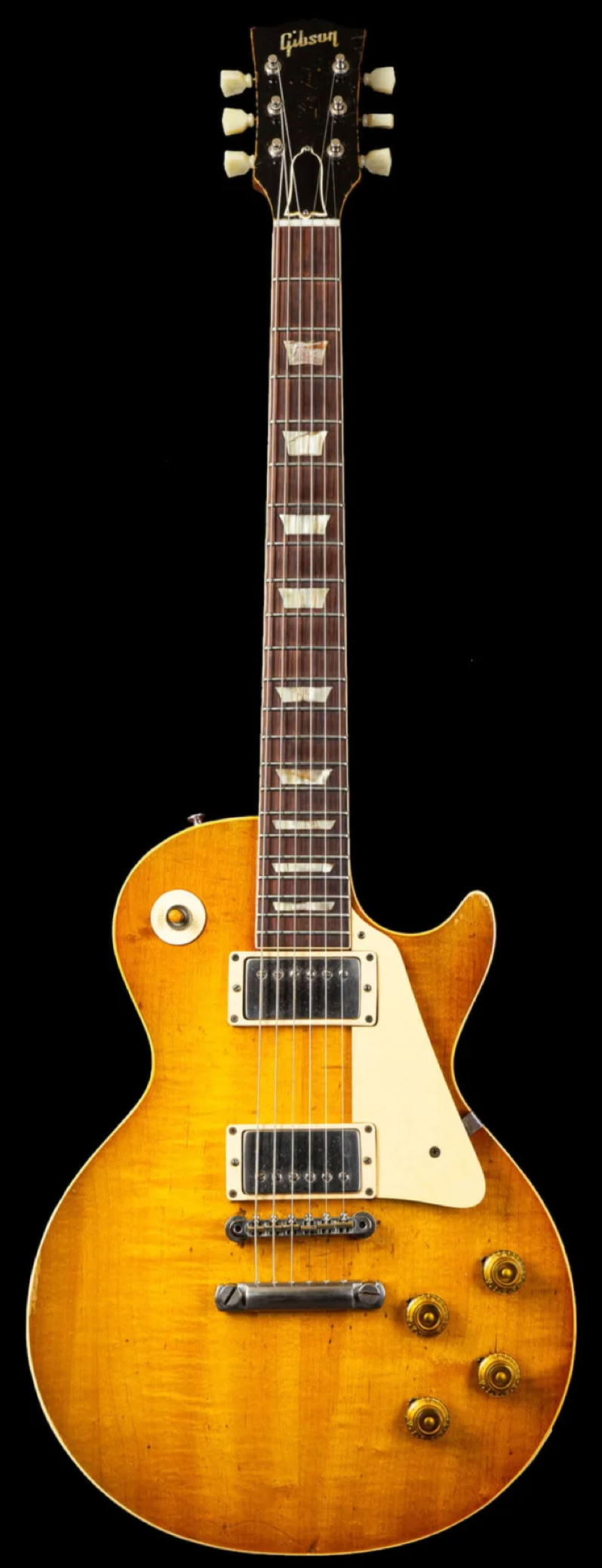

The Holy Grail Les Pauls are the 58s-60s fetching most of any solid body guitar.
Half of the '58s were Goldtop before Sunburst took over as main color.
NOTABLE FOR 58's:
- The neck was still a nice chunky rounded "C"
- Of both colors, small amount left the factory with a Bigsby B-7 Vibrato (Sells for less than hardtail)
