MEXICO TELECASTERS
Vintera Series (2019-2023)
Colors:

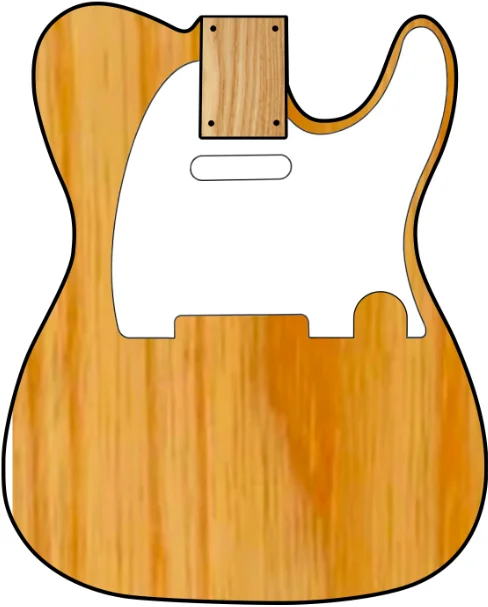

Aged Natural (328)
Candy Apple Red (309)
Vintage Blonde (307)
FSR:
Shell Pink (356) FSR for CME
Model# 014-9742-XXX
BODY
Wood: Alder
Lacquer: Gloss Polyester
Shape: Standard Telecaster Semi Hollow body
Pickguard: 4-Ply Aged Pearloid (12-Hole)
Serial: Headstock Rear / MX-serial
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Gloss Urethane
Position Markers: White Dot
Headstock: Standard Telecaster Shape
Neck Profile: Slim "C"
Neck Thickness: .850”—.900” (21.6-22.9mm)
Nut Width: 1.650" (42mm)
Nut Material: Synthetic Bone
Scale: 25.5”
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: ‘70s Bullet Headstock Adjust, Single Action Rod
Micro Tilt: Yes
HARDWARE
Bridge: 6-Saddle Hardtail Sting-Thru
Bridge Markings: None
Saddles: Vintage Bent-Steel (2-7/32 Spacing)
Tuners: Fender 70’s F-Style Tuners
String Tree: 2 X Butterfly
Knobs: Knurled Flat-Top
Neckplate: 3-Bolt / CBS Style "F" plate with Micro-Tilt
Strap Buttons: Standard Vintage Style
ELECTRONICS
Switch: 3-Way / Barrel Switch-tip
Wiring: Standard Modern Wiring (N/NB/B)
Pots:
• CTS 250k Master Volume Solid Shaft
• CTS 250k Master Tone Solid Shaft
Caps .05uf Ceramic Dime
Pickup Config: HH
Neck Pickup: Fender WideRange Humbucker
Bridge Pickup: Fender WideRange Humbucker
ACCESSORIES
BAG: Deluxe Gig Bag
STRINGS: Nickel Plated Steel .009-.042
DECAL:
