American Standard Aluminum Stratocaster
Standard Series (1994-1995)
Colors:
Blue Metal Burst (851)
Violet Metal Burst (852)

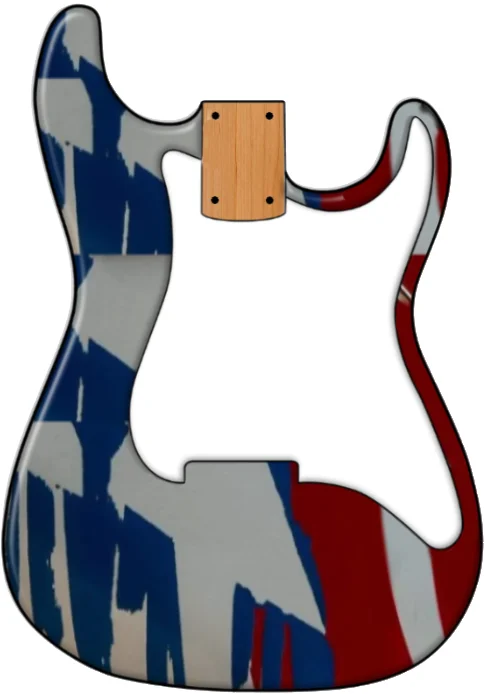

Stars & Stripes (853)
Model# 10-7400-XXX (Rosewood)
Model# 10-7402-XXX (Maple)
BODY
Material: Chromed Aluminum Anodized Finish
Lacquer: Urethane Protective Coat
Shape: Standard Stratocaster
Pickup Routing: Unknown
Serial: Headstock Rear | N+6 digits
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Fret Markers: White (RW) / Black Dots (Maple)
Neck Finish: Satin Urethane
Neck Profile: Standard “C”
Neck Depht .870”-.890”
Headstock: Classic Style Small
Nut Width: 1.687”” (42.8mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6150 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
HARDWARE
Bridge: 2-Point American Standard
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Saddle: Satin Stainless Block Saddles
Block: Milled Steel, Tapered
Trem Arm: 10-32
Tuners: Fender / Schaller Die Cast Sealed Standard
String Tree: 2 x Ezy Glyder
Neckplate: 4-Bolt
Strap Buttons: Standard
PLASTIC HARDWARE
Pickguard: 11-Hole Various:
- 1-Ply Stars & Stripe Acrylic (851)
- 3-Ply White (852, 853)
Rear Cover: 3-Ply White, Letterbox Slot
Knobs: White, Fender Standard Plastic, Gold Lettering
PU Covers: White, Standard Plastic
Trem-Arm & Switch Tip: White
ELECTRONICS
Switch: 5-Way Oak Grigsby / White Tip
Wiring: Modern Standard (N/NM/M/MB/B)
Pots: 3 Pots
- 1x CTS 250k Master Volume
- 1x CTS 250k Tone
- 1x CTS 250k TBX Tone (’87-97’) / CTS No-Load Delta Tone (‘97-’00)
Pickup Config: SSS
Neck Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
Middle Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
Bridge Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
ACCESSORIES & INFO
CASE: Standard Molded Case
INFO:
400 Units made in total with both neck configurations and are based on the American Standard model. But many was returned to Fender for finish-issues or dents in the body. Customers were never issued a new one because a) the mold was discarded. or b) Fender custom ordered these and did not order new for exchange, so all returns was refunded under warranty.
Because of this, there is less than 400 in circulation of these today.
These models was built and assembled at Fender, Scottsdale, Arizona HQ
Letter with Guitar:
Congratulations on your purchase of this unique Fender instrument.
This guitar is made from aluminum, utilizing a special manufacturing
and anodizing process. What might appear to be minor surface flaws
are a normal part of this special hard anodising process
Each Fender instrument is skillfully crafted to represent the finest
available instrument of its type. Each guitar is coated with a protective urethane finish and hand rubbed to a high luster.
Fender takes pride in our ability to continually offer products that are
not only innovative, but inherently musical as well. The unique beauty,
aesthetically and sonically, of these unique instruments is available
only by using the processes we have utilized. Once you examine and
then play this instrument we are certain that you will agree.
-Fender Musical Company Industry
-Scottsdale, Arizona 85258
Also exsists for Strat Plus, Deluxe Strat Plus and the Strat Ultra as well as 100 Telecaster unit built.
