Strat Ultra

Model# 10-9800-XXX (Ebony)

BODY

Wood: Alder with Figured Maple Cap on Top & Bottom)

Lacquer:  Polyurethane

Shape: Standard Stratocaster

Pickguard: 3-Ply White / 4-Ply White Shell (Some Colors since 1994)

Pickup Routing: Swimming Pool

Serial:

E+6 digits (1990) (Front under Decal)

N+6 digits (1991-2000) (Headstock Rear)

NECK

Wood: Maple

Fretboard: Ebony

Fret Markers: Abalone White Dot

Neck Finish: Satin Urethane

Neck Profile: Modern “C”

Neck Depht .810-.880 (+/- Hand finished until 1993)

Headstock: Classic Style Small

Nut Width: 1.687” (43 mm)

Nut Material:

• Wilkinson Split Roller Nut (1989-1990)
• Wilkinson Roller Nut (Revised) (1990-1993)
• LSR Roller Nut (1993-1998)

Scale: 25.5"

Radius: 9.5”

#Frets: 22

Fretwire: 6100 Jumbo

Trussrod: Bi-Flex Headstock Adjust

MicroTilt: Yes

Neck Stamps: Penciled Date

HARDWARE

Bridge:

• 2-Point American Deluxe Tremolo
• 2-Point Floyd Rose Mini

Saddle:

Trem Arm:

Tuners:

• Sperzel Locking Tuner Chrome or Frosted (1987-mid’88)
• Fender / Schaller Locing Tuners (Frosted) (mid’88 - 1999)

String Tree: None (by factory default)

Knobs: Standard White Knobs

Neckplate: 4-Bolt  | Slanted “Fender”

Strap Buttons: Standard

Other: Hipshot Tremsetter (On most models)

ELECTRONICS

Switch: 5-Way SuperSwitch / White Tip

Wiring: Custom Wiring  N/NM/M/MB/B

Pots: 3 Pots

• 1 x CTS 250k Master Volume
• 1x CTS 250k Tone
• 1x CTS 250k /.1 megTBX Tone

AUX: 3-Way DPDT Swith for Humbucker

• UP: Humbucker Out Of Phase

• MIDDLE: Humbucker in Series

• DOWN: Coil Split to Single Coil

Pickup Config: HSS

Neck Pickup: Lace Sensor Blue

Middle Pickup: Lace Sensor Silver

Bridge Pickup: Dual Lace Sensor Red (Silver in 1989)

ACCESSORIES & INFO

CASE: Standard Molded Case

INFO:

1989 had Silver/Silver/Blue Lace Sensors.

Colors:

STANDARD COLORS:

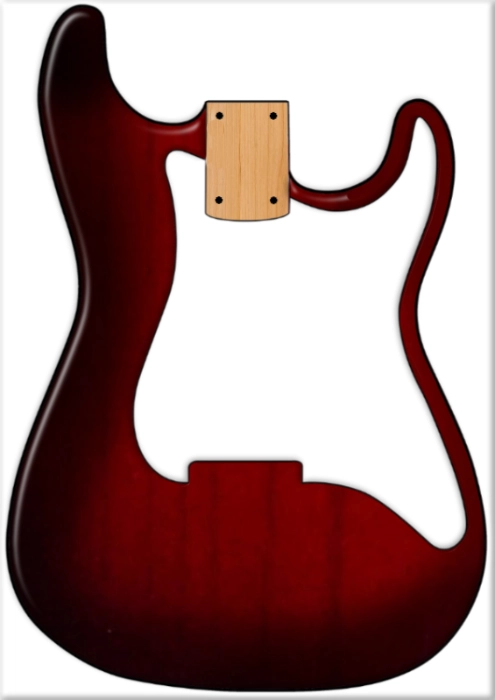

Crimson Burst (828)

Blue Burst (836)

Antique Burst (837)

Ebony Burst (835) (1990-1992)

Firestorm Red (878) (1991-1992)

Mystic Black (819) (1993-1997)

Black (806) (1997-1998)

ALUMINUM BODIES (1995): 400$ Upcharge

Blue Metal Burst (851)

Violet Metal Burst (852)

Stars & Stripes (853)

Assembled in Fender Arizona
