Model# Unknown (Rosewood)
Model# Unknown (Maple)
BODY
Wood: Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Pickguard: 3-Ply Pearloid 11 Hole
Pickup Routing: Swimming Pool (Early) or HSH
Serial:
• E+6 digits (1987-1994) (Front under Decal)
• N+6 digits (1995-2000) (Headstock Rear)
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Fret Markers: White (RW) / Black Dots (Maple)
Neck Finish: Satin Urethane
Neck Profile: Standard “C”
Neck Depht .870”-.890”
Headstock: Classic Style Small
Nut Width: 1.687” (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6150 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
HARDWARE (Gold Plated)
Bridge: 2-Point American Standard
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Saddle: Gold Plated Stainless Block Saddles
Block: Milled Steel, Tapered
Trem Arm: 10-32 w/ Tip
Tuners: Fender / Schaller Die Cast Sealed Standard
String Tree: 2 x Ezy Glyder
Knobs: Standard White Knobs
Neckplate: 4-Bolt Commemorative “Special Edition 1993”
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way / White Tip
Wiring: Modern Standard N/NM/M/MB/B
Pots: 3 Pots
Pickup Config: SSS
Neck Pickup: Custom Shop Texas Special Single Coil
Middle Pickup: Custom Shop Texas Special Single Coil
Bridge Pickup: Custom Shop Texas Special Single Coil
RWRP: Yes
ACCESSORIES & INFO
CASE: Deluxe Case
INFO:
400 Guitars made in total
A custom luxury issue of an American Standard. with features like:
• Gold plated Hardware
• Pearloid Pickguard
• Texas Special Pickups
• 8 Different colors
• Deluxe case
Colors:
Montego Black (764)
Antique Burst (737)
Vintage White (741)
Candy Green (772)
Frost Red (701)
Burgundy Mist (766)
Ocean Turquoise (707)

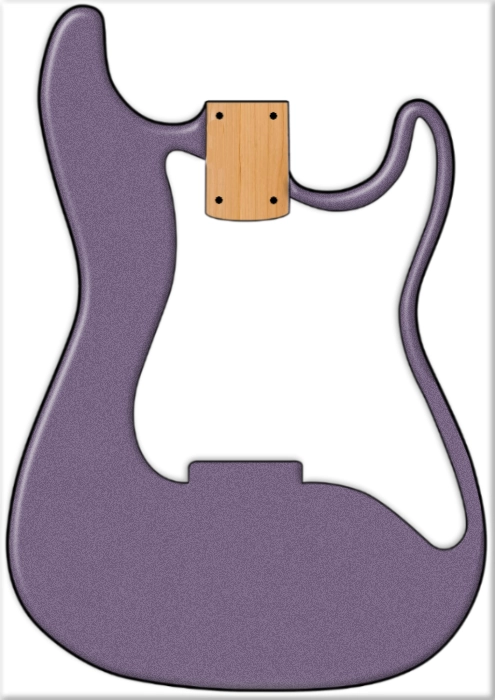

Midnight Purple (776)
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing (GOLD)
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the Dervice Manulal of this guitar (if any)
Some bridges that fit:
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are:
Gotoh SD510 Series
Kluson K2PT
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
