USA STRATOCASTERS
American Standard Series (1995-1997)
Colors:

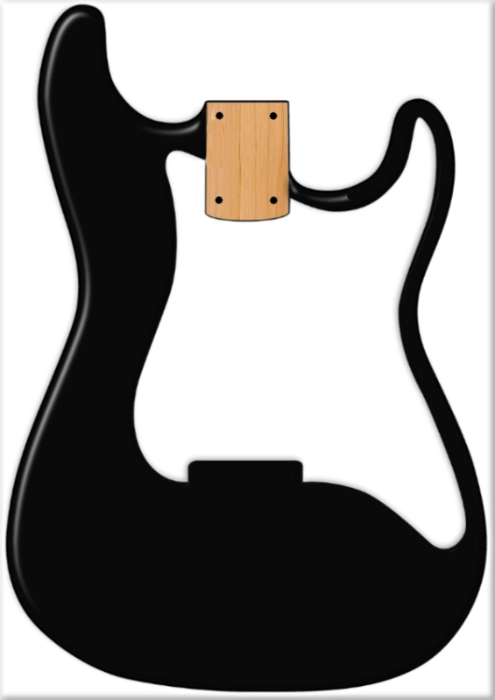

Black (706)

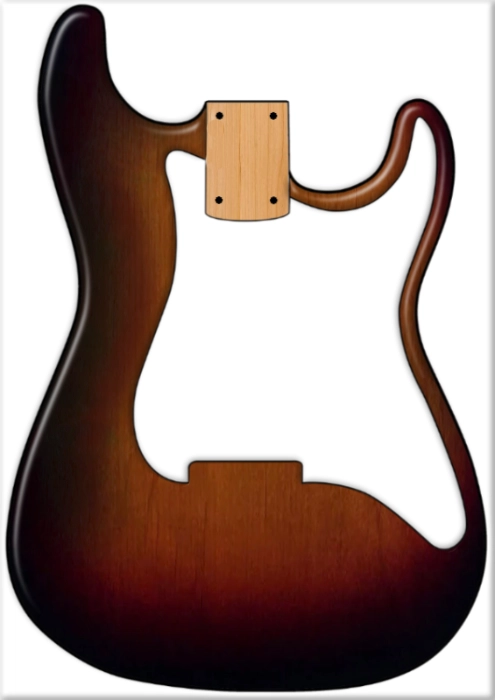

Brown Sunburst (732) Ash Body +$50

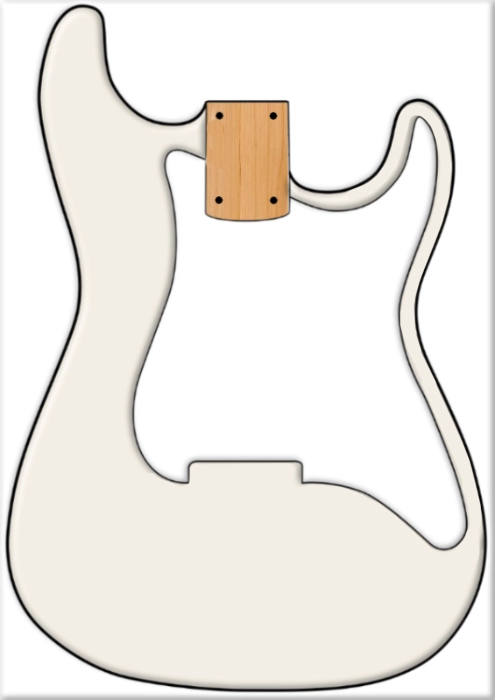

Arctic White (780)
Lipstick Red (715)

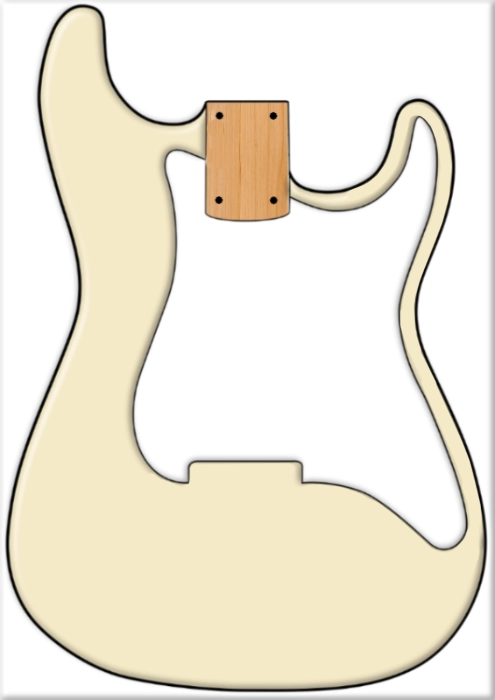

Olympic White (715) (7/1997-) Replaces (780)
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model# 10-7460-XXX (Rosewood)
Model# 10-7462-XXX (Maple)
BODY
Wood: Alder / Ash (732)
Lacquer: Polyurethane
Shape: Standard Stratocaster
Pickguard: 3-Ply White 11 Hole
Pickup Routing: ?
Serial: Headstock Rear | N+6 Digits
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Fret Markers: White (RW) / Black Dots (Maple)
Neck Finish: Polyurethane (Satin (-1994) / Gloss (1995-)
Neck Profile: Standard “C”
Neck Depht .820”-.870”
Headstock: Classic Style Small
Nut Width: 1.687”” (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6150 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
HARDWARE
Bridge: 2-Point American Standard
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Saddle: Satin Stainless Block Saddles
Block: Milled Steel, Tapered
Trem Arm: 10-32
Tuners: Fender / Schaller Die Cast Sealed Standard
String Tree: 2 x Ezy Glyder
Knobs: Standard White Knobs
Neckplate: 4-Bolt “FENDER”
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way / White Tip
Wiring: Modern Standard N/NM/M/MB/B
Pots: 3 Pots
Pickup Config: SSS/S
Neck Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
Middle Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
Bridge Pickup: 016730 Plastic Bobbin, Flush Pole Pickups
CASE: Standard Molded Case
Wiring Diagram
Bridge Info
Service Manual
DECAL:
