USA STRATOCASTERS
Highway One Series (2003-2006)
Successor: Highway One (2nd Version)
Original Specs for the bridge on this guitar is:
American Vintage Spacing
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2-7/32 (56.4mm)
Saddles: 11.2mm
These will fit this guitar: (Vintage String Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
Vintage/Narrow bridge
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2/1-16 (56.4mm)
Saddles: 10.4mm
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Colors:
Amber (320)
Cocoa Transparent (339)
Ebony Transparent (339) Replaces Cocoa but same color

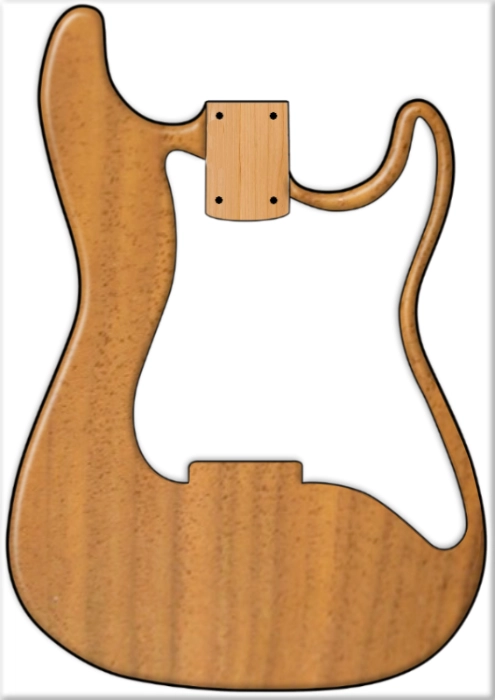

Walnut (392)
INFO:
The Highway One series together with its successors was a marketing move to provide “Made in USA” Stratocaster for lower price. To achieve low pricing, the hardware was PING (Taiwan parts used in MIM Guitars) mounted on Necks and Bodies cut in USA and sent to Mexico for finishing.
All finished parts was assembled in USA. with Mexico wound pickups. To cut cost more, they only came with a deluxe gig bag.
For bridge upgrade, Please check your bridge measurements if it is a 2006 model.
2002-2005 models can follow regular guidance if you click the Bridge Info below
Model# 010-1700-XXX (Rosewood)
BODY
Wood: Alder
Lacquer: Satin Polyurethane
Shape: Standard Stratocaster
Pickguard: 3-Ply White, 11-hole
Pickup Routing: HSS
Serial: Rear Headstock Z+6 digits
NECK
Wood: Maple
Fretboard: Rosewood
Fret Markers: White Dots
Neck Finish: Satin Urethane
Neck Profile: “C” Shape
Neck Depht .800”-.870”
Headstock: ´70s CBS Style Large
Nut Width: 1.687" (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Single Action Headstock Adjust
Contured Heel: No
MicroTilt: No
Neck Markings: Stamped Date at Heel
HARDWARE
Bridge: 6-Screw PING Synchronized Vintage Tremolo (2002-2005)
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
• Saddles: Nickel Plated Bent Steel Saddles “FENDER”
Bridge: 6-Screw PING Synchronized V/N Tremolo (2006)
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
• Saddles: Chrome Plated Bent Steel Saddles “FENDER”
Block: Cast Iron Block
Trem Arm: 10-32 w/ Tip
Tuners: Schaller/Fender Standard Sealed Diecast
String Tree: 2 x Ezy-Glyde
Knobs/Covers: Standard White
Neckplate: 4-Bolt Blank
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / White Tip
Wiring: Modern Standard N/NM/M/MB/B
Pots: 3 Pots
Treble Bleed: Greasebucket Mod
Pickup Config: HSS
Neck Pickup: 016730 Vintage Single Coil Staggered (5.7k)
Middle Pickup: 016730 Vintage Single Coil Staggered (5.7k)
Bridge Pickup: Fender Atomic Humbucker (5.7k)
CASE: Deluxe Gig Bag Included
Factory Strings: Standard Nickel Plated .009-.042 Gauge
Wiring Diagram
Bridge Info
Service Manual
DECAL:
