 Model# 017-0612-830 (Maple)

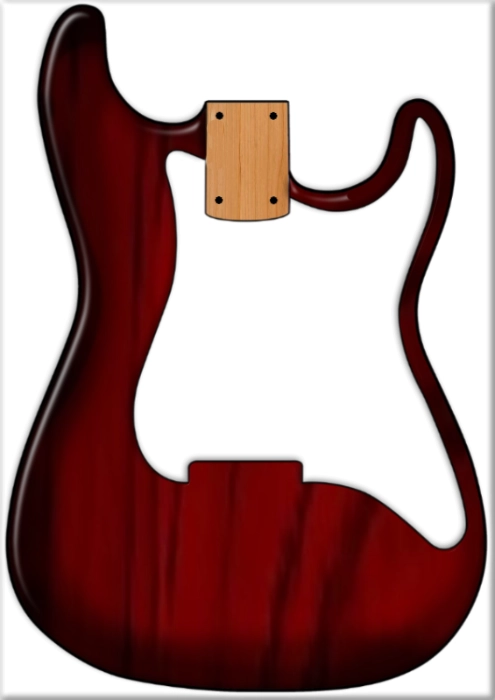

BODY

Wood: Select Alder w/ 3A Exotic Flame Maple Top

Lacquer: Hand Stained Gloss Lacquer

Shape: Standard Stratocaster

Contours: Modern Contours

Pickguard: 3-Ply Parchment, 11-hole

Pickup Routing: ?

Serial: Neckplate | SE + 5 digits

NECK

Wood: Rosewood

Fretboard: Channel Bound Birdseye Maple

Fret Markers: Black Pearloid Dots

Neck Finish: Handrubbed Oil

Neck Profile: Modern “C”

Neck Depht: ?

Headstock: Standard Small / Gloss Nitro. Wood engraved Logo and coin emblem on the rear headstock.

Nut Width: 1.685” (42.8 mm)

Nut Material: Synthetic Bone

Scale: 25.5"

Radius: 9.5” -14” Compound

#Frets: 21

Fretwire: 6130 Medium Jumbo (.046-.103)

Trussrod: Bi-Flex Headstock Ajust

MicroTilt: Yes

Contoured Heel: Yes

HARDWARE

Bridge: 2-Point American Standard  Tremolo

• Mount Spacing: 2–7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Saddles: Nickel Plated Bent Steel

Block: Copper Infused High Mass Block

Trem Arm: 10-32 w/ Tip

Tuners: Schaller/Fender Deluxe Staggered Locking

String Tree: Ezy-Glyde

Knobs/Covers: Standard Aged White

Neckplate: 4-Bolt  “Fender Corona California” + Serial

Strap Buttons: Schaller Strap Lock

ELECTRONICS

Switch: 5-Way Oak Grigsby / Aged White Tip

Wiring: Standard Modern (N/NM/M/MB/B)

Pots: 3 Pots

•  1 x CTS  250k Master Volume

• 1x CTS 250k Tone Control  (Neck)

•  1x CTS 250k Tone Control (Middle + Bridge)

Capacitor .022uf (T1>T2)

Pickup Config: SSS

Neck Pickup: 016730 PB Fender Select Custom Single Coil

Middle Pickup: 016730 PB Fender Select Custom Single Coil

Bridge Pickup: Fender Twin-Head Humbucker

CASE: Custom G&G Tweed Case with Red Velvet lining.

STRINGS .009-.042 Nickel Plated Steel
