LTD American Deluxe Mahogany Stain

Model #: 017-1509-750 (Maple)

BODY

Wood: 2-Piece Mahogany

Lacquer: Gloss Polyurethane

Shape: Standard Stratocaster

Contours: Modern USA Contours

Pickguard: 3-Ply Mint Green, 11-hole

Pickup Routing: ?

Serial: Rear Headstock | US + 8 digits

NECK

Wood: Flatsawn Maple

Fretboard: Rosewood

Fret Markers: White Pearloid Dots

Neck Finish: Satin Urethane

Neck Profile: Modern “C”

Neck Depht .810” - .860”

Headstock: Original Standard | Gloss Urethane

Nut Width: 1.685 (42.8 mm)

Nut Material: Synthetic Bone

Scale: 25.5"

Radius: 9.5” - 14” Compound

#Frets: 22

Fretwire: 6130 Medium Jumbo (.046-.103)

Trussrod: Bi-Flex Headstock Adjust

MicroTilt: Yes

Contoured Heel: Yes

HARDWARE

Bridge: 2-Point American Standard Synchronized Bridge

• Mount Spacing: 2–7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Block: Copper Infused Steel Block, Tapered

Saddles: Nickel-plated Bent Steel

Trem Arm: 10-32 / Aged White Tip

Tuners: Fender/Schaller Staggered Locking Tuners

String Tree: Ezy-Glyde

Knobs/Cover: Standard Aged White Plastic

Neckplate: 4-Bolt  “Fender Corona Limited Edition# Plate

Strap Buttons: Schaller Strap Locks

ELECTRONICS

Switch: 5-Way, 4-pole Descrete Super Switch,  / Aged White Tip

Wiring: Modified Wiring (N/NM//M/MB/B Parallel  on S1 Off)

With S1 On (Down):

• Pos.1: Neck + Middle (In Series)
• Pos.2: Neck + Middle (In Parallell with 0.22 Cap)
• Pos.3: Neck + Middle (In Series) + Bridge (Paralell)
• Pos.4: Middle + Bridge (In Parallell with 0.22 Cap)
• Pos.5: Middle + Bridge (In Series)

Pots: 3 Pots

• 1 x CTS  250k Master Volume S1 Switch
• 1x CTS 250k Tone (Neck)
• 1x CTS 250k Tone (Middle+Bridge)

AUX: Mini Toggle Switch (Sends Bridge PU Direct Out -Bypass)

Capacitor: 3 x 022uf

Pickup Config: HSS

Neck Pickup: Fender N3 Noiseless Single Coil

Middle Pickup: Fender N3 Noiseless Single Coil

Bridge Pickup: Fender Shawbucker Humbucker.

ACCESSORIES & INFO

CASE: ABS Molded Case

INFO: 500 Units Made

Colors:

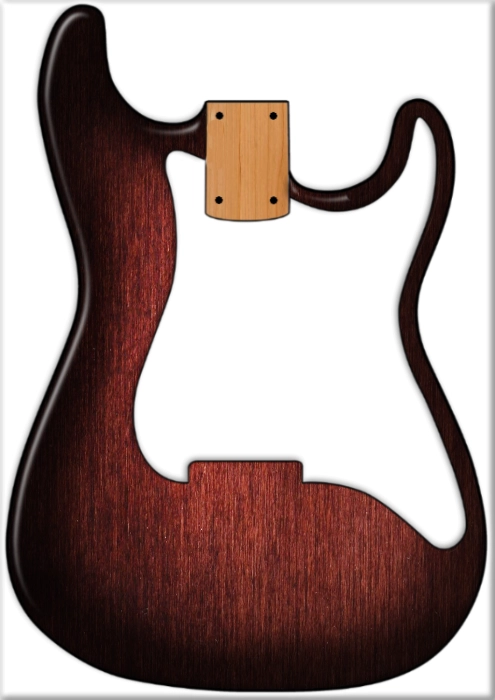

Mahogany Stain (750)
