USA STRATOCASTERS
American Elite Series (2016-2019)
Colors:
ALDER BODY:
3-Tone Sunburst * (700)
Mystic Black (710)
Olympic Pearl (723)
Sky Burst Metallic (736)

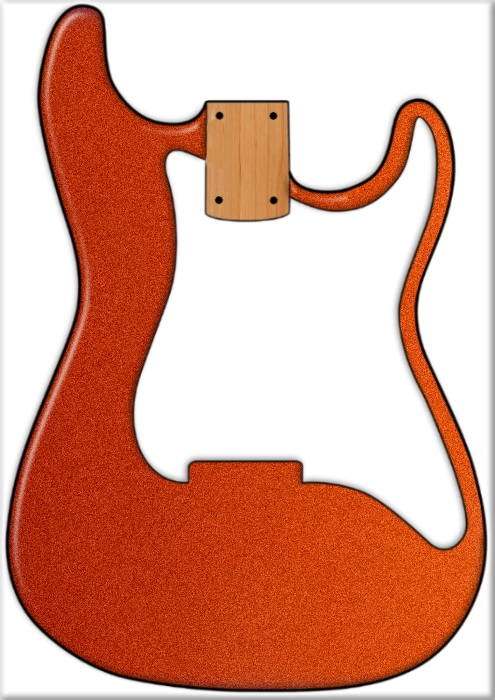

Autumn Blaze Metallic (796)
Ocean Tuquoise (708)
Champagne (774) Maple / Ebony FB
Satin Ice Blue Metallic (783) Maple / Ebony FB
Satin Jade Pearl Metallic (719) Maple / Ebony FB
ASH BODY:
Aged Cherry Burst (731)

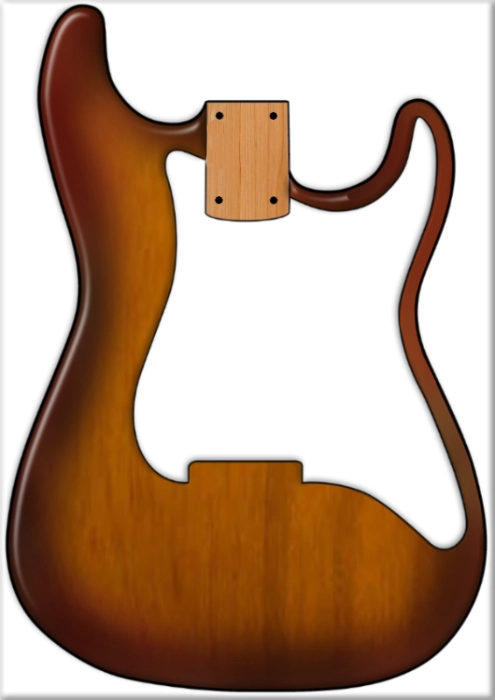

Tobacco Sunburst (752)
* = Left Handed Version
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model# 011-4000-XXX (Rosewood)
Model# 011-4001-XXX (Ebony)
Model# 011-4002-XXX (Maple)
Model# 011-4020-XXX (Rosewood Left-Handed) (700)
BODY
Wood: Alder or Ash (731, 752)
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickguard: Various , 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple , Rosewood or Ebony
Fret Markers: White or Black Pearloid Dot
Neck Finish: Satin Urethane
Neck Profile: Modern “C” to “D”
Neck Depht .820”–.890”
Headstock: Standard Classic | Satin Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5” - 14” Compound
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Spoke-Wheel Heel Adjust
MicroTilt: No
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point Deluxe Synchronized Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Saddles: Chrome Polished Steel Offset Block Saddles
Trem Arm: Pop-In, Tip-less
Tuners: Fender/Schaller Staggered Locking Tuners
String Tree: Modern T-Wing
Knobs/Cover: Soft-Touch Knobs Aged White Plastic
Neckplate: 4-Bolt “Fender Corona California”
Strap Buttons: Schaller Strap Lok
ELECTRONICS
Switch: 5-Way/ 4-Pole Descrete Super Switch, / Aged White Tip
Wiring: Modified Parallel / Series Wiring
S-1 Off: (Up)
• Standard: N/NM//M/MB/B)
S-1 On: (Down)
• Pos 1: All three pickups in Series
• Pos 2: Middle + Neck in Series
• Pos. 3: Bridge + Middle in Series
• Pos. 4: Bridge in Series w/Mid + Neck in Parallel
• Pos. 5: Bridge in Parallel w/ Mid + Neck in Series
Pots: 3 Pots
• 1 x CTS 250k Master Volume S-1 Switch
• 1 x CTS 250k Tone Control (Neck)
• 1x CTS 250k No-Load Tone Control (Middle+Bridge)
Capacitor .022Uf (T2) / .1uf+47k Resistor (Switch)
Pickup Config: SSS
Neck Pickup: 4th Generation Noiseless Single Coil (10.0-10.6k)
Middle Pickup: 4th Generation Noiseless Coil (10.0-10.6k)
Bridge Pickup: 4th Generation Noiseless Coil (10.0-10.6k)
CASE: Elite Molded Case
STRINGS .009 -.042 Nickel Plated Steel
