American Professional HH Shawbucker

Model# 011-3050-XXX (Rosewood)

BODY

Wood: Alder

Lacquer: Gloss Urethane

Shape: Standard Stratocaster

Contours: Modern Contours

Pickguard: Various 3-Ply, 11-Hole

• 3-Ply Mint Green (700, 706)

• 3-Ply Parchment (708, 776, 748)

Pickup Routing: HSH

Serial: Rear Headstock | US + 8 digits

NECK

Wood: Flatsawn Maple

Fretboard: Rosewood

Fret Markers: White Dot

Neck Finish: Satin Urethane

Neck Profile: Modern Deep “C”

Neck Depht .820”–.920”

Headstock: Standard Classic | Gloss Urethane

Nut Width: 1.685” (42.8 mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5”

#Frets: 22

Fretwire: 6105 Narrow Tall (.054-.094)

Trussrod: Bi-Flex Headstock Adjust

MicroTilt: Yes

Contoured Heel: No

HARDWARE

Bridge: 2-Point American Professional Tremolo

• Mount Spacing: 2–7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Block: Steel Block Tapered

Saddles: Nickel Plated Bent Steel

Trem Arm: Pop-In, w/ Tip

Tuners: Fender/Schaller Standard Diecast Sealed

String Tree: Ezy Glyde

Knobs/Cover: Standard Aged White Plastic

Neckplate: 4-Bolt “Fender Corona California”

Strap Buttons: Standard

ELECTRONICS

Switch: 5-Way Super Switch  / Std. Tip

Wiring: Split Mode (N/NM/M/MB/B)

• Pos. 1: Neck Humbucking
• Pos. 2: Neck + Bridge (Outer Coils) Single Coil Mode
• Pos. 3: Neck + Bridge Full Humbucking
• Pos. 4: Neck + Bridge (Inner Coils) Single Coil Mode
• Pos. 5: Bridge Humbucking

Pots: 3 Pots

• 1 x CTS 500k Master Volume
• 1 x CTS 500 Tone Control (Neck)
• 1x CTS 500 Tone Control (Bridge)

Treble Bleed: PCB or Capacitor

Capacitor .022uf (T1+T2)

Pickup Config: HH

Neck Pickup: Fender Tim Shaw Humbucker (Shawbucker)

Bridge Pickup: Fender Tim Shaw Humbucker (Shawbucker)

ACCESSORIES & INFO

CASE: Elite Molded Case

STRINGS .009 -.042 Nickel Plated Steel

Colors:

3-Tone Sunburst (700)

Black (706)

Olympic White (705) Maple Only

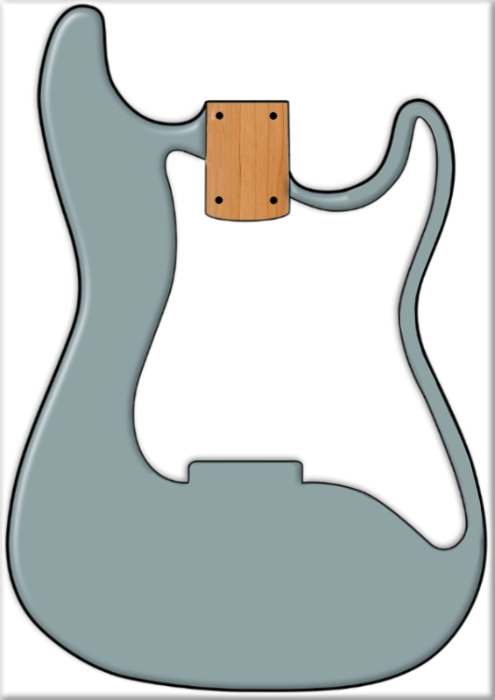

Sonic Gray (748) Rosewood Only

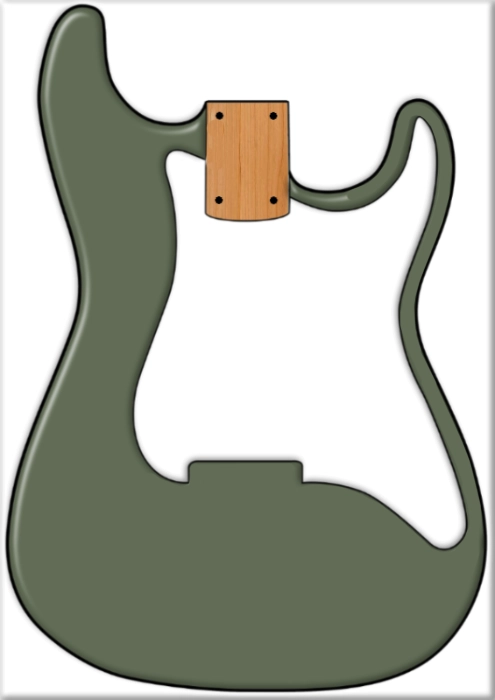

Antique Olive (776)
