USA STRATOCASTERS
American Performer Series (2018 - 10/2025)
Colors:
Arctic White (380)
Honey Burst (342)
Satin Lake Placid Blue (302)

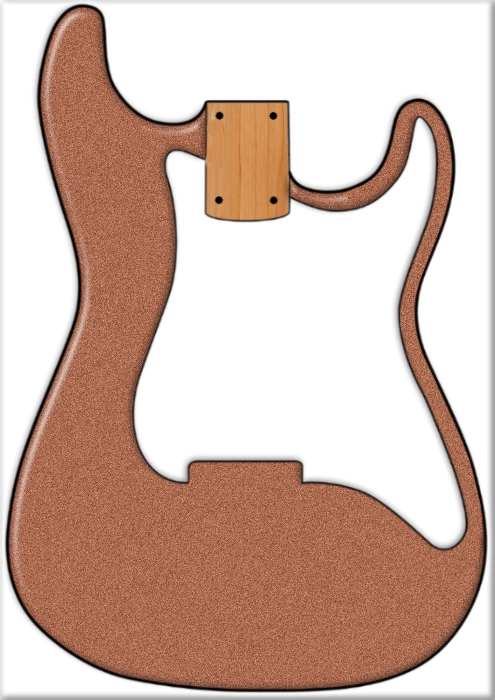

Penny (384) (2018-2020)
LIMITED EDITIONS
Olympic White (705) (2019-2021) Maple Only
Walnut (392) (2020) Maple Only
Natural (321) (2020) Maple Only
Original Specs for the bridge on this guitar is:
Vintage / Narrow Spacing
Mount Spacing: 2-7/32 (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
American Vintage
Mount Spacing: 2-7/32 (56.2mm)
String Spacing: 2/7-32 (56.2mm)
Saddles: 11.2mm
These will also fit this guitar: (Vintage Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
(Keep in mind, this will widen your spacing and move the outer strings closer to the fretboard edge)
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model# 011-4910-XXX (Rosewood)
Model# 011-4912-XXX (Maple)
Model# 017-4932-392 (LTD Natural)
Model# 011-4912-321 (LTD Walnut)
Model# 017-4702-705 (LTD Olympic White)
BODY
Wood: Alder (Std.Models) or Ash (392, 321)
Lacquer: Gloss Polyurethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickguard: Various , 11-Hole
• 3-Ply Mint Green (342, 302)
• 3-Ply Black (380, 384, 321, 392)
• 3-Ply Parchment (705)
Pickup Routing: HSS
Serial: Headstock Rear | US + 8 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple or Rosewood
Fret Markers: White or Black Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .820”–.870”
Headstock: CBS ‘70s Large
Nut Width: 1.685” (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6200 Jumbo (.045”- .083”)
Trussrod: Single Action, Headstock Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: 6-Screw PING Synchronized V/N Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Steel Block
Saddles: Chrome Plated Bent Steel PING
Trem Arm: 10-32 w/Tip
Tuners: Fender ClassicGear Vintage Split Shaft
String Tree: 2 x Ezy Glyde
Knobs/Cover: Standard Plastic
Neckplate: 4-Bolt Slanted “Fender” Plate
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Standard Tip
Wiring: Modified Modern, 7-Way Wiring
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck + Middle)
• 1x CTS 250k Tone Control Push/Pull (Bridge)
AUX: Push/Pull Engages Neck Pickup in Pos. 4&5
Capacitor .022uf (T1), Greasebucket PCB (T2)
Pickup Config: SSS
Neck Pickup: Fender Yosemite Single Coil
Middle Pickup: Fender Yosemite Single Coil
Bridge Pickup: Fender Yosemite Single Coil
CASE: Deluxe Gigbag
STRINGS .009 -.042 Nickel Plated Steel
INFO:
Performer Walnut (392) and Natural (321), does not come with Push/Pull feature
Wiring Diagram
Bridge Info
Service Manual
DECAL:
