USA STRATOCASTERS
American Professional Series (10/2025 -Today)
Replaces: American Performer
Limited Edition
Limited Edition
Colors:
Original Specs for the bridge on this guitar is:
Vintage / Narrow Spacing
Mount Spacing: 2-7/32 (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
American Vintage
Mount Spacing: 2-7/32 (56.2mm)
String Spacing: 2/7-32 (56.2mm)
Saddles: 11.2mm
These will also fit this guitar: (Vintage Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
(Keep in mind, this will widen your spacing and move the outer strings closer to the fretboard edge)
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
MAPLE FRETBOARD:
Faded Firemist Gold (384)
Faded Lake Placid Blue (379)
3-Tone Sunburst (300)
ROSEWOOD FRETBOARD:
Faded Black (322)

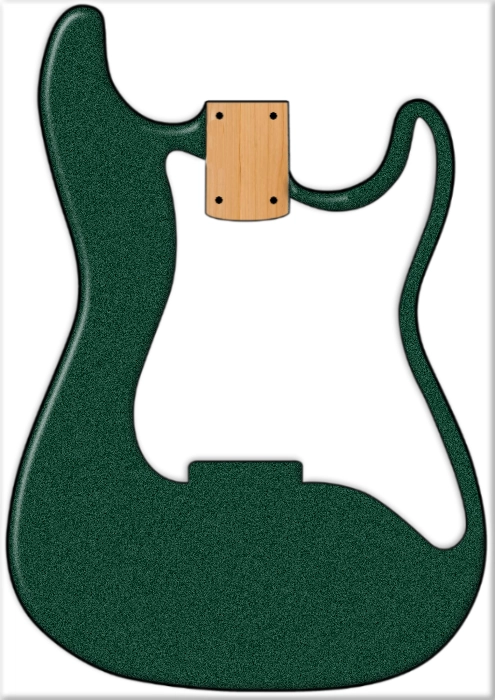

Faded Sherwood Green Metallic (374)
Faded Dakota Red (375)
LIMITED EDITION / FSR:
Mystic Ice Blue Metallic (362) RW (Fender Exclusive)
Olympic Pearl (323) RW
Model# 011-4942-XXX (Maple)
Model# 011-4940-XXX (Rosewood)
BODY
Wood: Alder
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Pickguard: Various, 11-Hole
• 3-Ply Black (300)
• 3-Ply Mint Green (375, 284, 379, 362)
• 4-Ply Tortoise Shell (322, 374)
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digit
NECK
Wood: Maple
Fretboard: Rosewood or Maple
Fret Markers: White or Black Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830” - .870”
Headstock: Classic Style Small
Nut Width: 1.685” (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Single-Action, Headstock Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: 6-Screw PING Synchronized V/N Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Saddle: Chrome Plated Bent Steel
Block: Steel Block
Trem Arm: 10-32 w/ Tip
Tuners: PING/Fender ClassicGear Staggered
String Tree: Butterfly
Knobs/Covers: Standard Aged White Knobs
Neckplate: 4-Bolt Slanted ”Fender”
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Aged White Tip
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1x CTS 250k Tone Control (Neck+Middle)
• 1x CTS 250k Tone Control (Bridge)
Treble Bleed: Greasebucket Circuit
Pickup Config: SSS
Neck Pickup: Fender Coastline ’57 Single Coil
Middle Pickup: Fender Coastline ’57 Single Coil
Bridge Pickup: Fender Coastline ’57 Single Coil
RWRP: Yes
CASE: Deluxe Gig Bag
STRINGS: .009 - .042 Nickel Plated Steel
Wiring Diagram
Bridge Info
Service Manual
DECAL:
