USA STRATOCASTERS
American Standard Series (2012-2016)
Replaces: American Standard Version 2 | Succesor: American Professional
Colors:
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
3 Tone Sunburst* (700)
Olympic White* (705)
Black* (706)
Sienna Sunburst (747) Ash Body

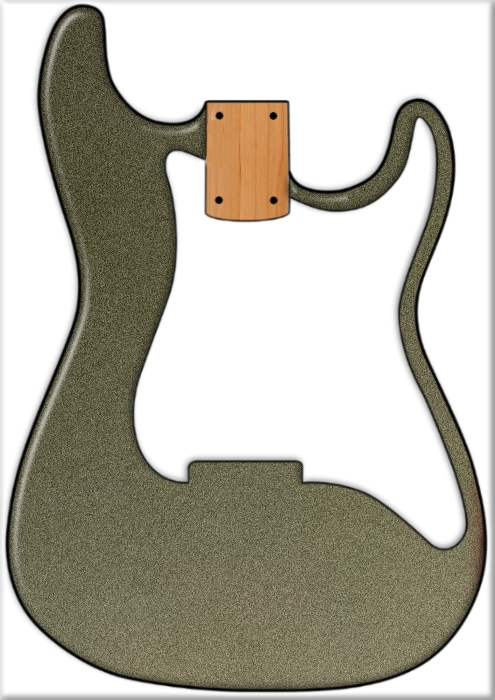

Jade Pearl Metallic (719) (2013)
Mystic Red* (794) (2013-2015)
Mystic Blue* (795) (2013-2015)
Ocean Blue Metallic (773) (2015)
Bordeaux Metallic (775) (2015)
LTD:
Mystic Aztek Gold (750) (2014-2015)
Vintage White (741) (2014-2015)
Left Handed Versions:

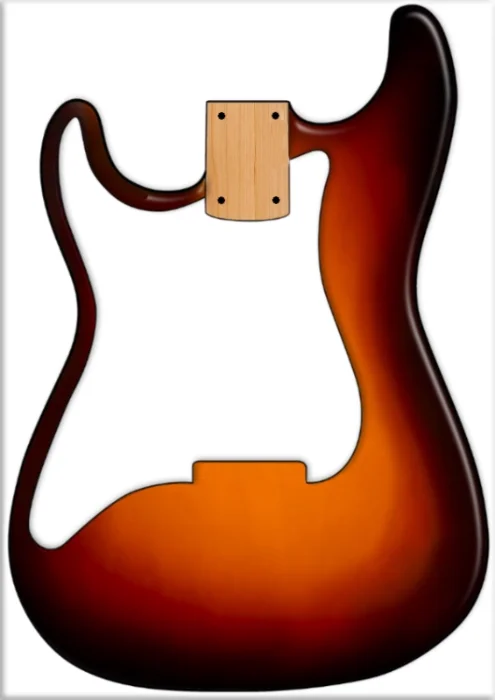

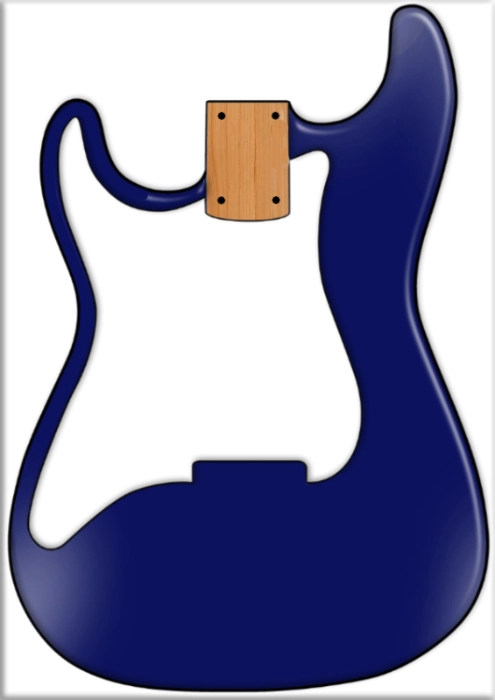

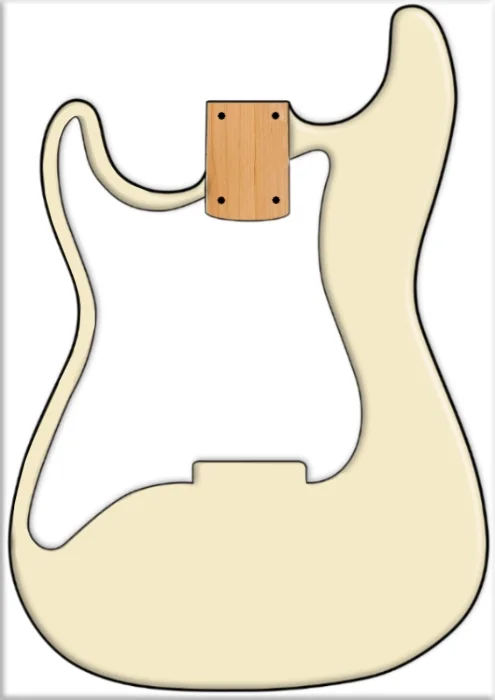

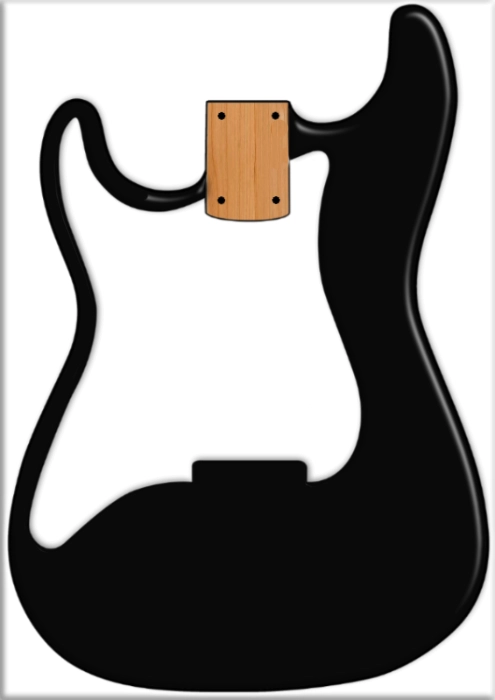

3-Tone Sunburst, Black, Olympic White, Mystic Red, Mystic Blue
Model# 011-3000-XXX (Rosewood)
Model# 011-3002-XXX (Maple)
Model# 011-3020-XXX (Left-Hand Rosewood)
Model# 011-3022-XXX (Left-Hand Maple)
Model# 017-0218-750 (Mystic Aztek Gold 60th Anniversay) (2015)
Model# 017-0219-741 (Vintage White 60th Anniversay) (2015)
BODY
Wood: Alder (Ash on 747)
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Standard Modern USA Contours
Pickguard: 3-Ply Parchment, 11-hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Black or White Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830”-.880”
Headstock: Standard Small / Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point Synchronised Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Tapered High Mass Copper Infused Block
Saddles: Nickel Plated Bent Steel Saddles
Trem Arm: 10-32 Stainless w/Tip
Tuners: Standard Schaller/Fender Die Cast Sealed Staggered
String Tree: Ezy-Glyde
Knobs/Cover: Aged White Plastic
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Std. Tip
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pots
Pickup Config: SSS
Neck Pickup: Custom Shop Fat 50’s Single Coil
Middle Pickup: Custom Shop Fat 50’s Single Coil
Bridge Pickup: Custom Shop Fat 50’s Single Coil
CASE: SKB Hardshell Case
