USA STRATOCASTERS
American Professional Series (2020 - Today)
Replaces: American Professional
Colors:
3-Tone Sunburst (700)
Black (706) Maple Only
Dark Knight (761)
Mercury (755) Rosewood Only
Miami Blue (719)
Mystic Surf Green (718)
Natural Aged (763) Rosewood Only, Roasted Pine Body
Olympic White (705)
Sienna Sunburst (747) Maple Only, Roasted Pine Body
FSR & LIMITED EDITION:
Sonic Blue (772) (2023) Rosewood FB
Candy Apple Red (709) (2023) Ebony, Black HS, Hot Noisless
Fiesta Red (740) Roasted Neck, CS69 pickups
Surf Green (757) (2023) Matching Headstock,- 50 Made
Firemist Gold (757) (2024)
Burguny Mist Metallic (766) (2024) Matching Headstock
2-Tone Sunburst (703) (2023) 70th Annv. Rosewood
2-Tone Sunburst (703) (2023) 70th Annv. Maple
2-Tone Sunburst (703) (2023) 70th Annv. Roasted Maple
Left Handed Versions:

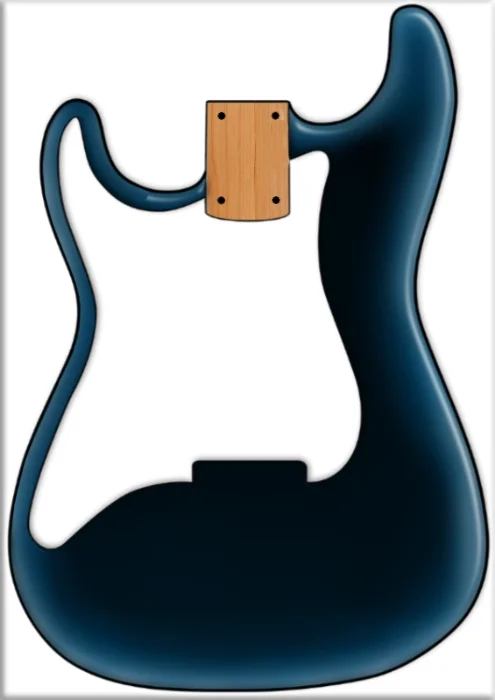

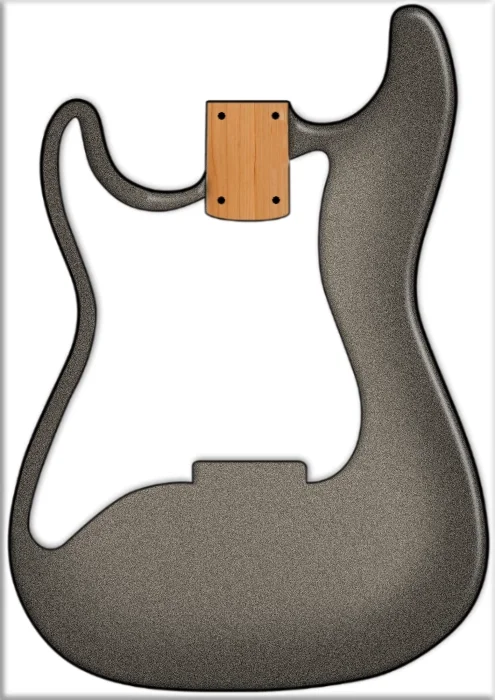

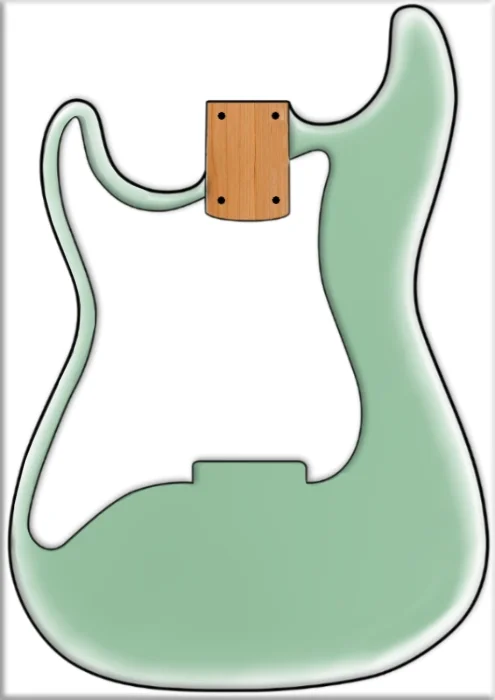

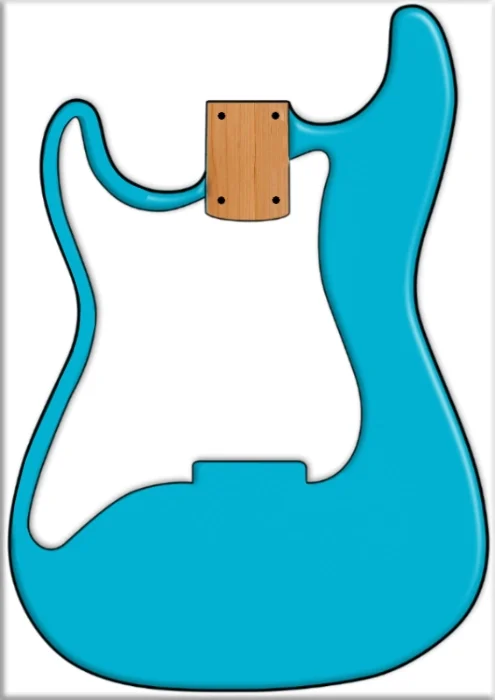

3-Tone Sunburst, Dark Knight, Olympic White, Mystic Surf Green, Mercury, Miami Blue
Model# 011-3910-XXX (Rosewood)
Model# 011-3912-XXX (Maple)
BODY
Wood: Alder or Roasted Pine (763, 747)
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickguard: Various, 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 or 9 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple, Rosewood or Ebony (709)
Fret Markers: White or Black Dot
Neck Finish: Super Satin Urethane
Neck Profile: Deep “C”
Neck Depht .820”–.920”
Headstock: Classic Style | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6105 Narrow Tall (.054-.094)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Professional Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Steel Block Tapered
Saddles: Nickel Plated Bent Steel
Trem Arm: Pop-In w/ Tip
Tuners: Fender/Schaller Standard Staggered Tuners
String Tree: Modern-T
Plastic: Standard (Aged White or Black)
Neckplate: 4-Bolt “Fender American Professional”
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Std. Tip
Wiring: 7-Way Wiring (N/NM/M/MB/B)
Pots: 3 Pots
AUX: Push/Pull adds Neck in pos 4 & 5
Capacitor .022uf (T1+T2)
Treble Bleed: PCB Unit
Pickup Config: SSS
Neck Pickup: Fender V-Mod II Single Coil (Alnico 2&3)
Middle Pickup: Fender V-Mod IISingle Coil (Alnico 5&2)
Bridge Pickup: Fender V-Mod II Single Coil (Alnico 5)
RWRP: Yes
CASE: Deluxe Molded Case
STRINGS .009 -.042 Nickel Plated Steel
LIMITED EDITIONS
Colors:
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Comet Burst (864)
Model# 011-7000-864 (Rosewood)
BODY
Wood: Alder w/ Flame Maple Cap
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickguard: 4-Ply Tortoise Shell, 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Flatsawn Maple
Fretboard: Rosewood
Fret Markers: White Dot
Neck Finish: Super Satin Urethane
Neck Profile: Deep “C”
Neck Depht .820”–.920”
Headstock: Classic Style | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6105 Narrow Tall (.054-.094)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Professional Tremolo
Block: Steel Block Tapered
Saddles: Nickel Plated Bent Steel
Trem Arm: Pop-In w/ Tip
Tuners: Fender/Schaller Standard Staggered Tuners
String Tree: Modern-T
Knobs/Cover: Standard Plastic (Aged White or Black)
Neckplate: 4-Bolt “Fender American Professional”
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Aged White Tip
Wiring: Standard Modern w/ 7-Way (N/NM/M/MB/B)
Pots: 3 Pots
AUX: Push/Pull adds Neck in pos 4 & 5
Capacitor .022uf (T1+T2)
Treble Bleed: PCB Unit
Pickup Config: SSS
Neck Pickup: Fender V-Mod II Single Coil (Alnico 2&3)
Middle Pickup: Fender V-Mod IISingle Coil (Alnico 5&2)
Bridge Pickup: Fender V-Mod II Single Coil (Alnico 5)
RWRP: Yes
CASE: Deluxe Molded Case Inca Silver w/ Blue Interior
STRINGS .009 -.042 Nickel Plated Steel
