USA STRATOCASTERS
American Professional Series (2024)
Colors:
Eclipse (771)
Limited Eclipse
Model# 017-3912-771 (Maple)
BODY
Wood: Alder
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Flatsawn Roasted Maple
Fretboard: Roasted Maple
Fret Markers: Black Dot
Neck Finish: Super Satin Urethane
Neck Profile: Deep “C”
Neck Depht .820”–.920”
Headstock: Classic Style | Satin Finish
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6105 Narrow Tall (.054-.094)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE (BLACK)
Bridge: 6-Saddle American Standard Hardtail Bridge
• String Spacing: 2–1/16 (52.4mm)
• Mount Spacing: 1–21/32 (42mm)
Saddles: Black Steel Block
Block: None
Trem Arm: None
Tuners: Black Fender/Schaller Staggered Locking
String Tree: Black Modern-T
Neckplate: Black 4-Bolt “Fender American Professional”
Strap Buttons: Black Standard
PLASTIC HARDWARE
Pickguard: 3-Ply Black, 11-Hole
Rear Cover: None (Ferrules)
Knobs: Black, Fender Standard Plastic
PU Covers: Black, Standard Plastic
Switch Tip: Black
ELECTRONICS
Switch: 5-Way Oak Grigsby / Aged White Tip
Wiring: Standard Modern w/ 7-Way (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck+Middle)
• 1x CTS 250k PP Tone Control (Bridge) (Push/Pull)
AUX: Push/Pull adds Neck in pos 4 & 5
Capacitor: 0.22uf (T1+T2)
Treble Bleed: PCB Unit
Pickup Config: HSS
Neck Pickup: Fender V-Mod II Single Coil (Alnico 2&3)
Middle Pickup: Fender V-Mod IISingle Coil (Alnico 5&2)
Bridge Pickup: Fender V-Mod Double Tap Humbucker
ACCESSORIES & INFO
CASE: Deluxe Molded Case
STRINGS .009 -.042 Nickel Plated Steel
INFO:
400 Units made
Wiring Diagram
Bridge Info
Service Manual
DECAL:
USA STRATOCASTERS
American Professional Series (2020-2026)
Colors:
3-Tone Sunburst (700)
Olympic White (705)

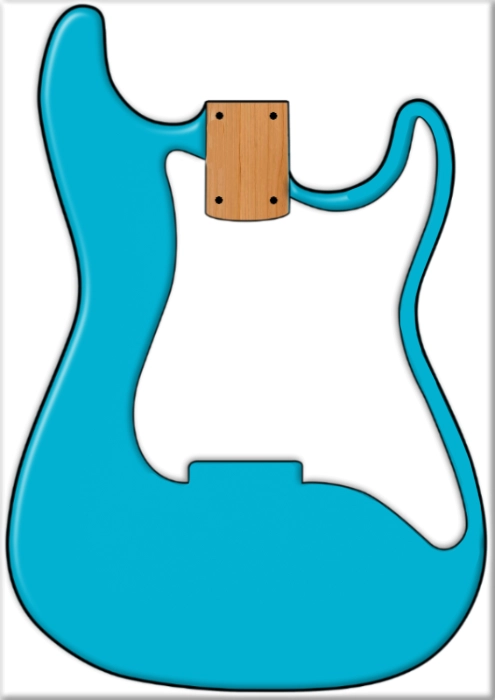

Miami Blue (719) Rosewood Only

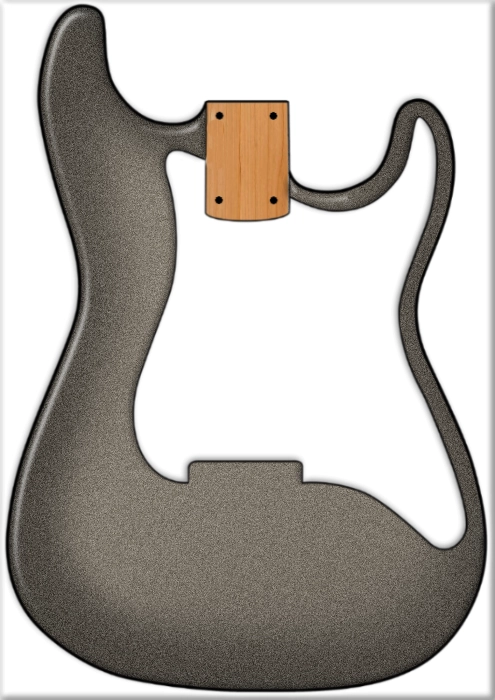

Mercury (755) Rosewood Only

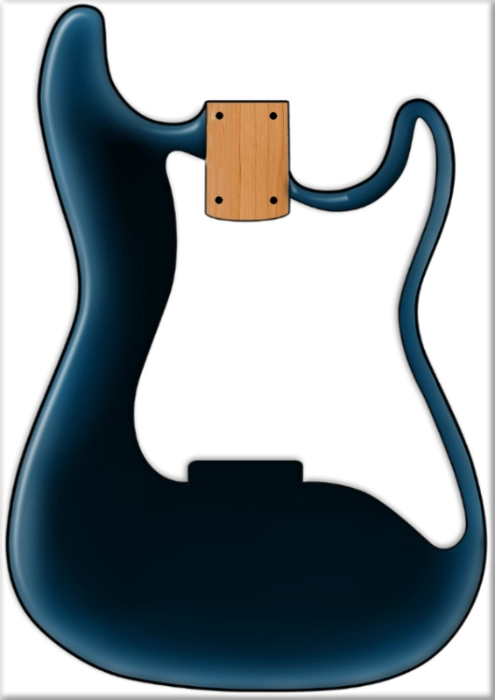

Dark Knight (761) Rosewood Only

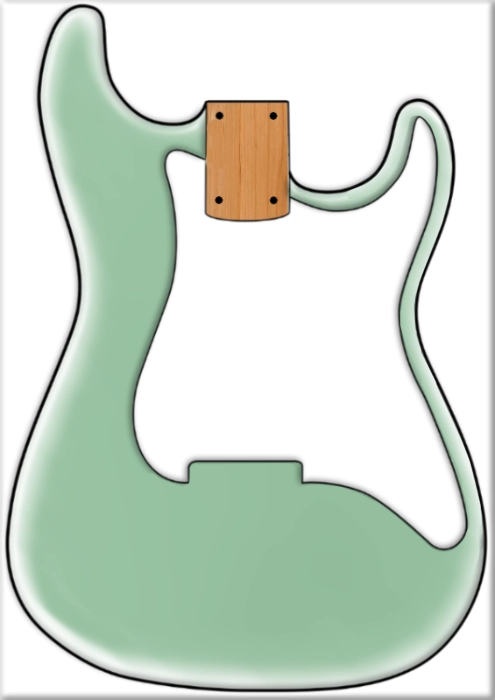

Mystic Surf Green (718) Maple Only
Sienna Sunburst (747) Maple Only, Roasted Pine Body
Natural Aged (763) Maple Only, Roasted Pine Body
FSR & LIMITED EDITION:
Shell Pink (756 ) Maple Neck
Standard
Model# 011-3900-XXX (Rosewood)
Model# 011-3902-XXX (Maple)
BODY
Wood: Alder or Roasted Pine (763, 747)
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 or 9 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple, Rosewood or Ebony (709)
Fret Markers: White or Black Dot
Neck Finish: Super Satin Urethane
Neck Profile: Deep “C”
Neck Depht .820”–.920”
Headstock: Classic Style | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6105 Narrow Tall (.054-.094)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Professional Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Steel Block Tapered
Saddles: Nickel Plated Bent Steel
Trem Arm: Pop-In w/ Tip
Tuners: Fender/Schaller Standard Staggered Tuners
String Tree: Modern-T
Neckplate: 4-Bolt “Fender American Professional”
Strap Buttons: Standard
PLASTIC HARDWARE
Pickguard: Various, 11-Hole
Rear Cover: Same as Pickguard (Letterbox Slot)
Plastic Kit Knobs: (PU Covers, Trem-Arm and Switch Tip)
ELECTRONICS
Switch: 5-Way Grigsby Blade / Std. Tip
Wiring: Standard Modern w/ Coil-Split (N/NM/M/MB/B)
Pots: 3 Pots
Aux: Push/Pull Splits Humbucker
Capacitor .022uf (T1+T2)
Treble Bleed: 2 x PCB Unit
Pickup Config: HSS
Neck Pickup: Fender V-Mod II Single Coil (Alnico 2&3)
Middle Pickup: Fender V-Mod IISingle Coil (Alnico 5&2)
Bridge Pickup: Fender V-Mod II Double-Tap Humbuceker (Alnico 5)
RWRP: Yes
ACCESSORIES & INFO
CASE: Deluxe Molded Case
STRINGS .009 -.042 Nickel Plated Steel
Replaces: American Professional HSS
Wiring Diagram
Bridge Info
Service Manual
DECAL:
