USA STRATOCASTERS

Model# 017–7512-833 (Maple)

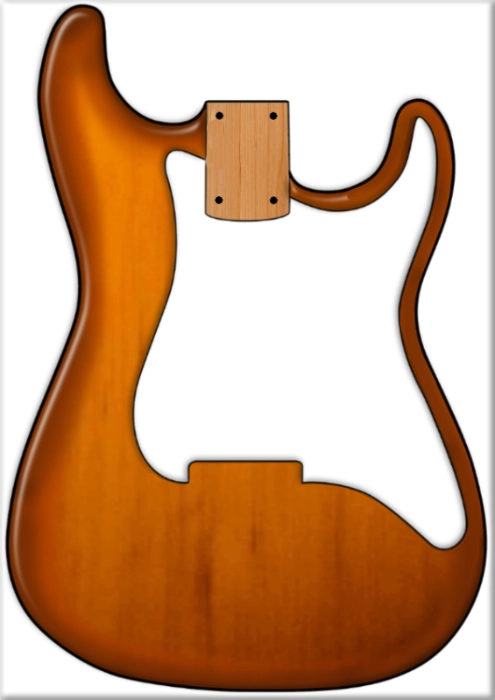

BODY

Wood: Ash

Lacquer: Gloss Urethane

Shape: Standard Stratocaster

Contours: Modern USA Contours

Pickguard: 3-Ply Mint Green, 11-Hole

Pickup Routing: HSH

Serial: Rear Headstock | US + 8 or 9 digits

NECK

Wood: Flatsawn Maple

Fretboard: Maple

Fret Markers: Black Dot

Neck Finish: Satin Urethane

Neck Profile: Deep “C”

Neck Depht .820”–.920”

Headstock: Classic Style Small | Gloss Urethane

Nut Width: 1.685” (42.8 mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5”

#Frets: 22

Fretwire: 6105 Narrow Tall (.054-.094)

Trussrod: Bi-Flex Headstock Adjust

MicroTilt: Yes

Contoured Heel: Yes

HARDWARE  (GOLD PLATED)

Bridge: 2-Point American Professional Tremolo

• Mount Spacing: 2–7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Block: Steel Block Tapered

Saddles: Gold Plated Bent Steel “FENDER”

Trem Arm: Pop-In w/ Tip

Tuners: Fender/Schaller Locking Tuners / Pearloid Buttons

String Tree: Ezy-Glyde

Knobs/Cover: Standard Plastic (Aged White)

Neckplate: 4-Bolt “Fender 75 Years” Commemorative

Strap Buttons: Standard

ELECTRONICS

Switch: 5-Way Oak Grigsby  / Std. Tip

Wiring: Standard Modern (N/NM/M/MB/B)

Pots: 3 Pots

• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck)
• 1 x CTS 250k Tone Control (Middle + Bridge)

Capacitor .022uf (T1+T2)

Treble Bleed: PCB Unit

Pickup Config: SSS

Neck Pickup: Custom Shop Fat ‘60s Single Coil

Middle Pickup: Custom Shop Fat ‘60s Single Coil

Bridge Pickup: Custom Shop Fat ‘60s Single Coil

RWRP: Yes

CASE: Deluxe Molded Case in Inca Silver w/ Blue Interior

STRINGS .009 -.042 Nickel Plated Steel

NOTE:

Based on a American Professional model.
