USA STRATOCASTERS

Model# 011–6862-877 (Maple)

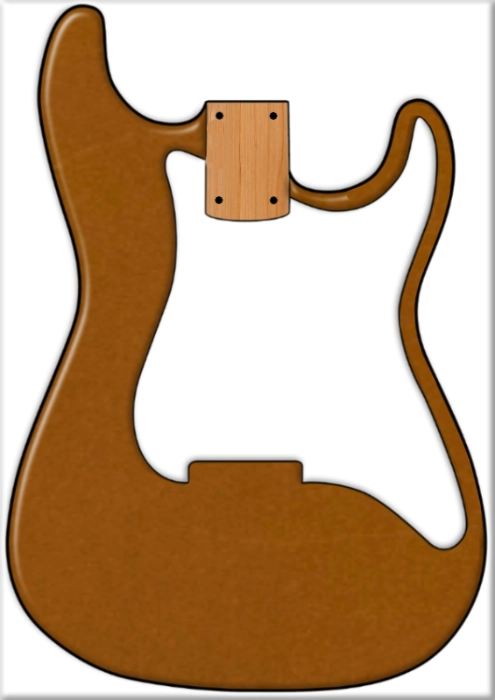

BODY

Wood: Ash

Lacquer: Aged Nitrocellulose

Shape: Standard Stratocaster

Contours: Deep Contours / Contoured Upper Horn

Pickup Routing: ?

Serial: Rear Headstock | US + 8 digits

NECK

Wood: Flatsawn Maple

Fretboard: Maple

Fret Markers: Black Dot

Neck Finish: Aged Nitrocellulose

Neck Profile: Custom “C”

Neck Depht .840”–.920”

Headstock: CBS Large | Gloss Nitro

Nut Width: 1.650” (42.0mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5”–12” Compound

#Frets: 21

Fretwire: 6130 Medium Jumbo Stainless Steel (.046-.103)

Trussrod: Single Action Heel Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE (Gold Plated)

Bridge: 2-Point American Professional Tremolo

• Mount Spacing: 2-7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Block: Slanted Cold-Rolled Steel Block

Saddles: Gold Plated Bent Steel “FENDER”

Trem Arm: Pop-In w/ w. Tip

Tuners: Fender/Schaller Short-Post Locking Tuners

String Tree: Butterfly

Neckplate: 4-Bolt Classic “F” Plate

Strap Buttons: Non-Slip Buttons

PLASTIC HARDWARE

Pickguard: 3-Ply Black, 11-Hole

Rear Cover: 3-Ply Black, Elongated  Slots

Knobs Aged White, Fender Standard Plastic

PU Covers: Aged White, Standard Covers

Trem Arm / Switch Tip: Aged White

ELECTRONICS

Switch: 5-Way Grigsby Blade / Std. Tip

Wiring: Standard Modern (N/NM/M/MB/B)

Pots: 3 Pots

• 1x CTS 250k Master Volume
• 1x CTS 250k Tone Control (Neck+Middle)
• 1x CTS 250k Tone Control (Bridge)

Capacitor .022uf  (T1+T2)

Treble Bleed: No

Pickup Config: SSS

Neck Pickup: Custom Bruno Mars Single Coil (Alnico 5, Non Bevel)

Middle Pickup: Custom Bruno Mars Single Coil (Alnico 5, Non Bevel)

Bridge Pickup: Custom Bruno Mars Hot Noiseless

RWRP: Yes

ACCESSORIES & INFO

CASE: Deluxe Brown Hardshell Case

STRINGS .010 -.046 Nickel Plated Steel
