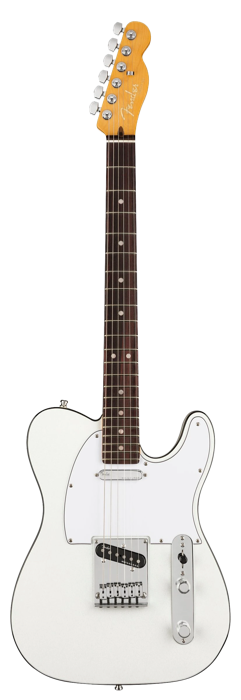

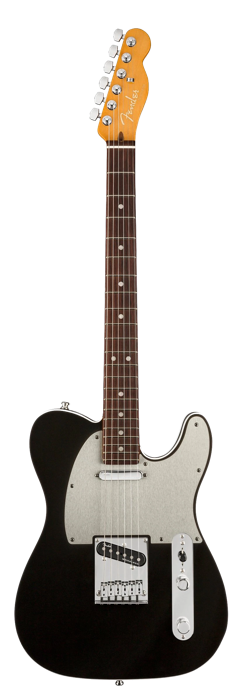

American Ultra Telecaster

Model# 011-8032-XXX (Maple)

Model# 011-8030-XXX (Rosewood)

BODY

Wood: Alder

Lacquer: Gloss Urethane

Binding: Top Bound

Shape: Standard Telecaster | Belly Cut | Rear Horn Contoured Carve

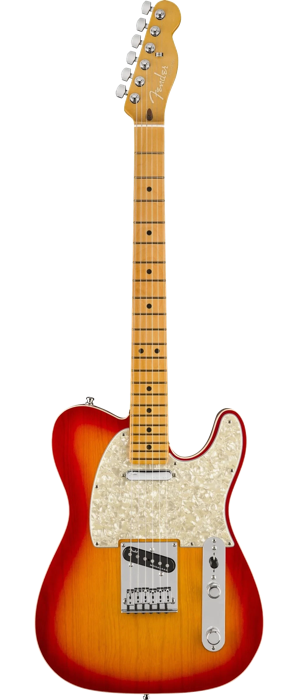

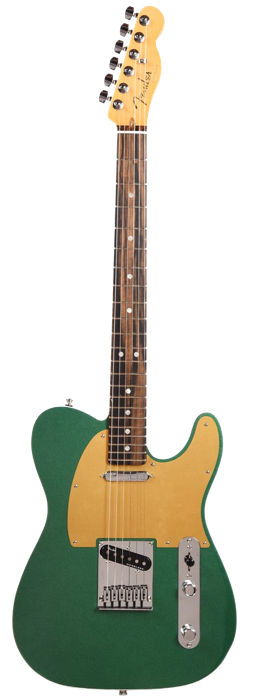

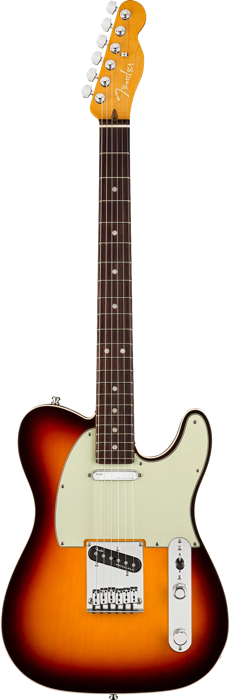

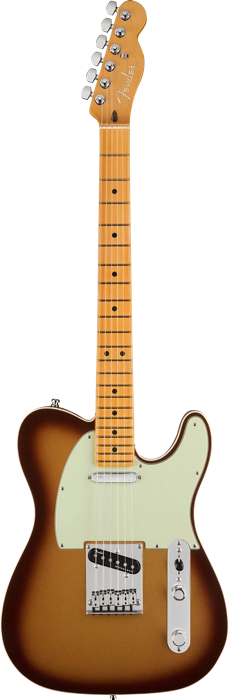

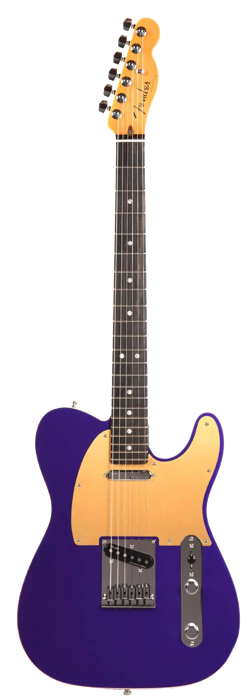

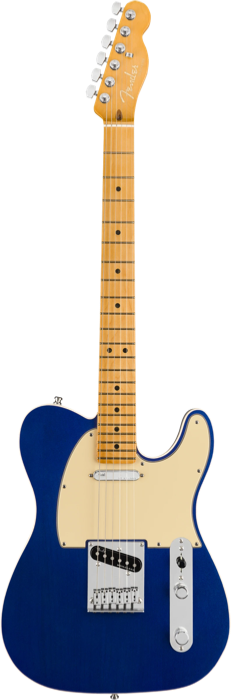

Pickguard: Various (See Profile Pictures)

Serial: Headstock Rear / US-serial

NECK

Wood: Maple

Fretboard: Rosewood, Maple or Ebony (406, 713)

Inlay: White or Black Pearloid Dot

Neck Lacquer: Satin Urethane

Neck Profile: Modern "D"

Neck Thickness .820 - .870  (20.8 - 22.1mm)

Headstock: Standard Tele

Nut Material: Natural Bone

Nut Width: 1.685" (42.8 mm)

Scale: 25.5"

Radius: 10" to 14" Compound

#Frets: 22

Fretwire: 6130 Medium Jumbo

Trussrod: Bi-Flex Headstock-Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: Modern 6-Saddle Bridge String-Thru

Bridge Marking: None

Saddles: Standard Off-set Polished Steel Saddles

Tuners: Fender Die-Cast Locking Tuners (All Short Post)

String Tree: Modern "T"

Knobs: Knurled Flat-Top

Control Plate: Chrome Standard

Strap Buttons: Schaller Locking

Neckplate: 4-Bolt "Fender American Ultra" plate

ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: S1 Switch for Series/Parallel mode in Middle Pos.

Treble Bleed: PCB Treble Bleed

Capacitor: 0.22uf Orange Drop

Pickup Config: SS

Neck Pickup: Ultra Noiseless Vintage Tele

Bridge Pickup: Ultra Noiseless Vintage Tele

CASE: Elite Molded Case
