American Ultra Series (10/2024 - Today)
Replaces: American Ultra Telecaster
Decal:
Colors:

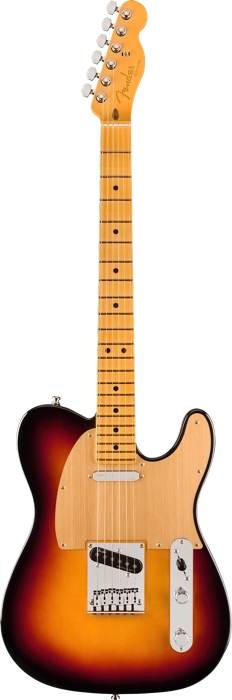

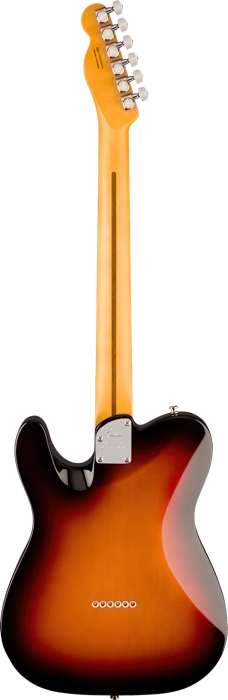

Ultraburst (712)

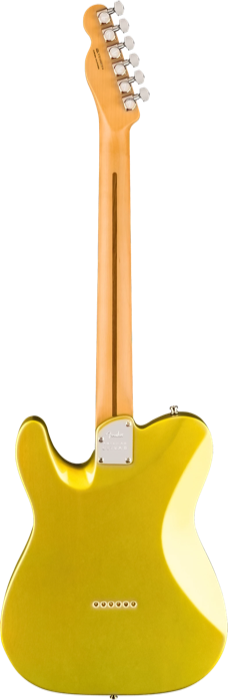

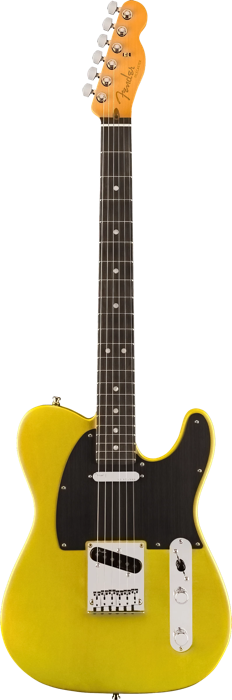

Solar Flare (733)

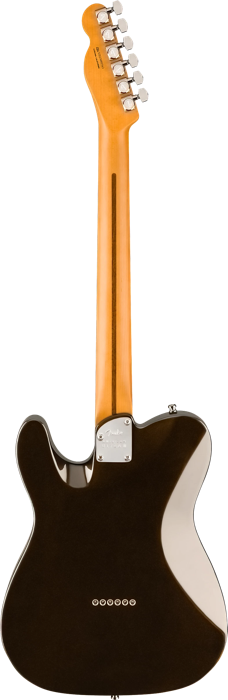

Texas Tea (790)

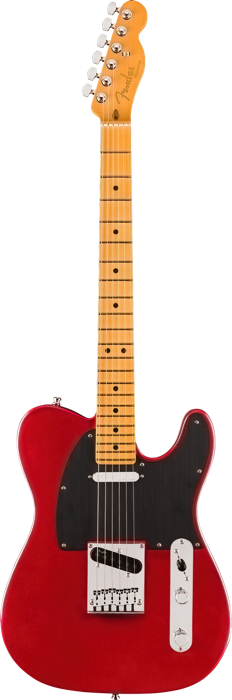

Sinister Red (799)

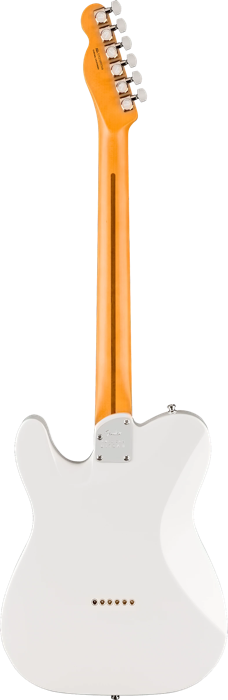

Avalanche (796)
USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 011-9171-XXX
BODY
Wood: Select Alder
Lacquer: Gloss Uretahne
Shape: Ultra Contoured Telecaster | Belly & Arm Cuts
Pickguard: 1-Ply Anodized Aluminum
Serial: Headstock Rear / US Serial
NECK
Wood: Quartersawn Maple
Fretboard: Maple or Ebony
Neck Lacquer: Ultra Satin Urethane
Inlay: Black Pearloid Dots (Maple) / White Pearloid Dots (Ebony)
Side Dots: Fluorscent Luminlay Dots
Neck Profile: Modern "D"
Neck Thickness .840 -.880 (21.3 - 22.2mm)
Headstock: Standard Tele
Nut Width: 1.685" (42.8mm)
Nut Material: Graphtec TUSQ
Scale: 25.5"
Radius: 10" - 14" Compound
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Bi-FLex Headstock Adjust
MicroTilt: No
ContouredHeel: Yes
HARDWARE
Bridge: Modern Flat 6-Saddle String-Thru Chrome
Bridge Marking: None
Saddle: Chromed Brass Block Offset Saddles
Tuners: Fender Chrome Die-Cast Locking Tuners (All Short Post) ⚙︎
String Tree: Modern T-tree
Knobs: HeavyKnurledFlat-Top
Neckplate: 4-Bolt Contour Plate "Fender American Ultra II"
Control Plate: Chrome Plate with Slanted Switch
ELECTRONICS
Switch: 3-Way CRL / Barrel Switch Tip
Wiring: Standard N/NB/B
Treble Bleed: Treble Bleed PCB
Switch Pot: Volume S1: Activates Series Wiring Option in Any Pickup Position)
Pickup Config: SS
Neck Pickup: Fender Ultra II Noiseless Single Coil
Bridge Pickup: Fender Ultra II Noiseless Single Coil
CASE: Deluxe Molded Case
PRICE: $2.199.99
INFO:
CHANGES: (from previous Ultra)
- Quartersawn Neck
- Luminlay Side dots
- New Ultra Noiseless II Pickups
- Anodized Pickguards (Was previously featured on two Ultra FSR Models)
- Full Strat Contours
- TUSQ Nut (only found on Ultra Luxe previously)
- Ebony Fretboard (Was previously featured on two Ultra FSR Models)
- S1 wired more verstatile
- Three new Colors: (Avalanche (Similar to Polar White), Solar Flare, Sinister Red) (Texas Tea and Ultraburst returns)
- Chromed Brass Saddles
- Control Plate with Slanted Switch
- Heavy Knurled Knobs
