USA TELECASTERS
Limited Series (2011) Tele-Bration Collection

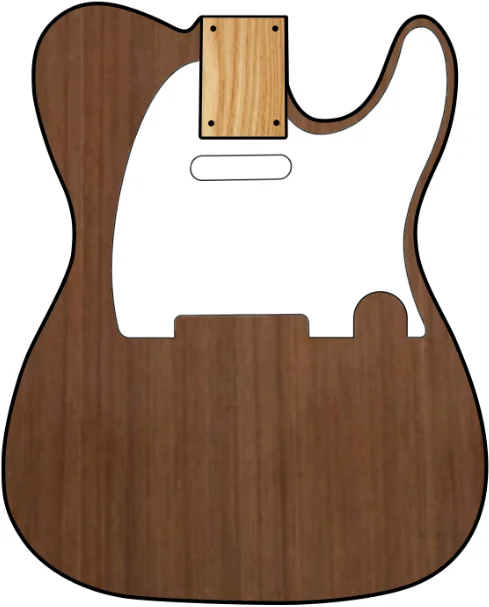

COLORS:
Aged Redwood (821)
Model# 017-0142-721
BODY
Wood: Aged Redwood
Lacquer: Hand Rubbed Urethane based Oil
Shape: Standard Telecaster
Pickguard: 1-Ply Black, 5-Hole
Serial: Headstock Rear / US-serial
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Satin Nitrocellulose
Neck Profile: "U" Shape
Neck Thickness .865”-.945” (22.0 - 24.0mm)
Headstock: Standard Tele
Nut Width: 1.650" (42 mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 21
Fretwire: 6130 Medium Jumbo
Trussrod: Heel-adjust, Single Action rod
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Modern 6-Saddle Flat String-Thru
Bridge Marking: "Fender" Logo
Saddles: Vintage Bent-Steel saddles
Tuners: Kluson Vintage SD91 Split Shaft
String Tree: 50's Round Button
Knobs: Knurled Dome
Neckplate: 4-Bolt. Two Variations
Control Plate: Chrome Standard
Strap Buttons: Standard
ELECTRONICS
Switch: 3-Way / Barrel Switch-Tip
Wiring: Modern Wiring Delta Tone
Pots:
• 250k S1 Master Volume
• CTS 250k Master Tone No-Load
Pickup Config: SS
Neck Pickup: American Vintage '62 Custom Single-Coil Tele
Bridge Pickup: American Vintage '62 Custom Single-Coil Tele
ACCESSORIES
CASE: Deluxe Brown Hardshell (Gold Interior)
INFO
500 Made / Second of 12 models released. Released June 2011
Tele-Bration series was a 60th Anniversary run of 12 Telecasters. Starting May 2011 and ending April 2012
———
Originally introduced as “Brown´s Canyon Redwood Telecaster” at
NAMM ’11 advertised as made of recalimed redwood from the canyon’s train tressle bridge from 1890 that was torn down.
About 140 of these exists as there were problems that the wood supply was overestimated and they did not receive enough to make all 500. Also, most of the wood was not usable as well. Many of the real Brown’s Canyons guitars were sold at NAMM.
The Canyon version have a different neck plate that says “Brown’s Canyon CA, FENDER” in a circular emblem” It also came with information and
photo´s about the bridge.
Fender managed to source up more 100 year old redwood lumber from California and Oregon to deliver the quota of 500, however, all major retailers advertised it as “Brown’s Canyon with its history and such and many customers who pre-ordered were dissapointed that they did not get what was advertised since Fender changed their sales info shortly after release.
Wiring Diagram
Service Manual
DECAL:
