USA TELECASTERS
American Special Series (2010 - 2018)
Replaces: Highway One (Ver.2)
Successor: American Perfomer
COLORS:
3-Color Sunburst (800) MPL/RW
MAPLE ONLY:
Vintage Blonde (807)
Olympic White (805)
Surf Green (857)
ROSEWOOD ONLY:
Lake Placid Blue (802)
Sherwood Green Metallic (846)
FSR/LTD:
Charcoal Frost Metallic (869) Rosewood Fender Ltd Edtion
Daphne Blue (804) Rosewood, FSR for CME
Shell Pink (856) Rosewood, FSR for CME
Fiesta Red (840) Maple, FSR for CME

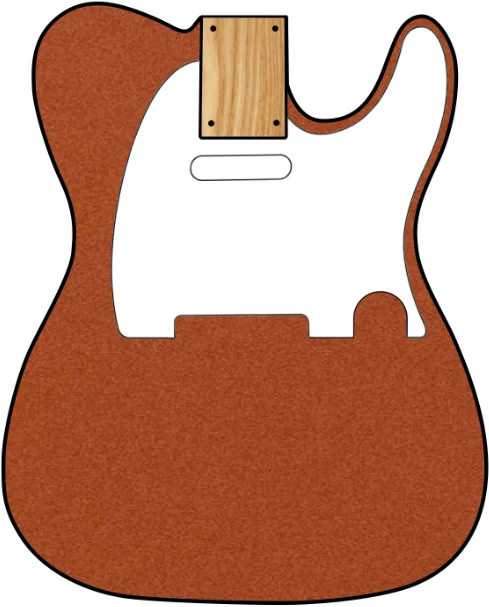

Autumn Blaze Metallic (896) Maple, FSR for CME
Model# 011-5800-XXX (Rosewood)
Model# 011-5802-XXX (Maple)
BODY
Wood: Alder
Lacquer: Gloss Urethane
Shape: Standard Telecaster
Serial: Headstock Rear / Z-serial / later US-Serial
NECK
Wood: Flat Sawn Maple
Fretboard: Maple or Rosewood
Neck Lacquer: Satin Urethane
Neck Profile: Modern "C"
Neck Thickness .820”-.870” (20.8 - 22.1mm)
Headstock: Standard Tele
Nut Width: 1.6875" (42.86 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Standard Headstock-adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Vintage 3-Saddle String-Thru
Bridge Marking: FENDER Pat.Pend
Saddles: Vintage Brass Barrel saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners
Knobs: Knurled Dome
String Tree: Ezy-Glide
Neckplate: 4-Bolt / Blank plate
Control Plate: Chrome Standard
Strap Buttons: Schaller Strap Locks
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard Modern Wiring N/NB/B
Pots:
• CTS 250k Master Volume
• CTS 250k Master Tone
Capacitor: Greasebucket Tone-circuit
Pickup Config: SS
Neck Pickup: Custom Shop Texas Special Single-Coil
Bridge Pickup: Custom Shop Texas Special Single-Coil
ACCESSORIES
BAG: Deluxe Gig Bag
INFO
Replaces Highway One series. There is one year overlap trough 2010 where both was avaliable for purchase.
Wiring Diagram
Service Manual
DECAL:
