American Ultra Telecaster

Model# 011-8032-XXX (Maple)

Model# 011-8030-XXX (Rosewood)

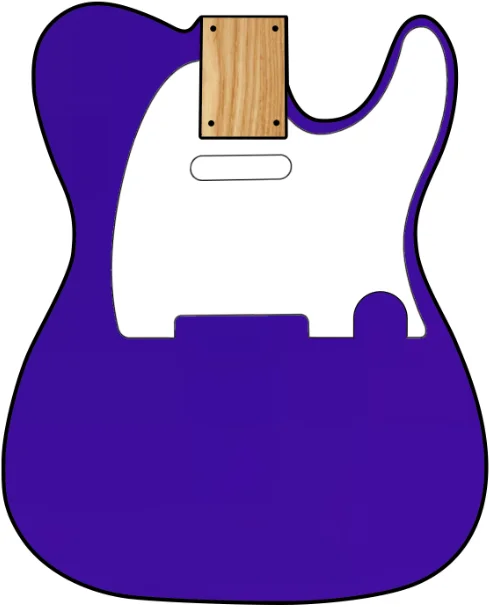

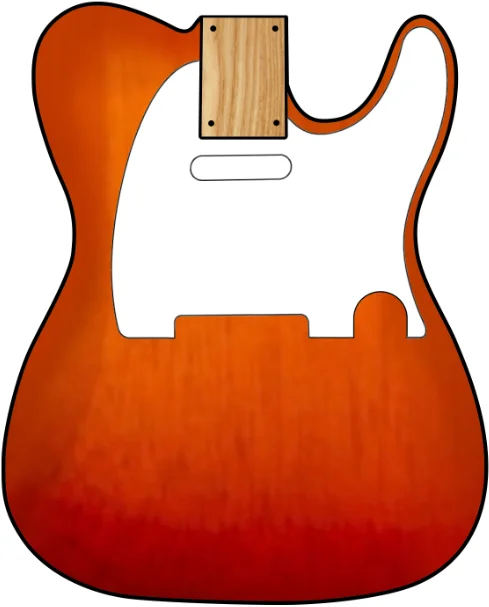

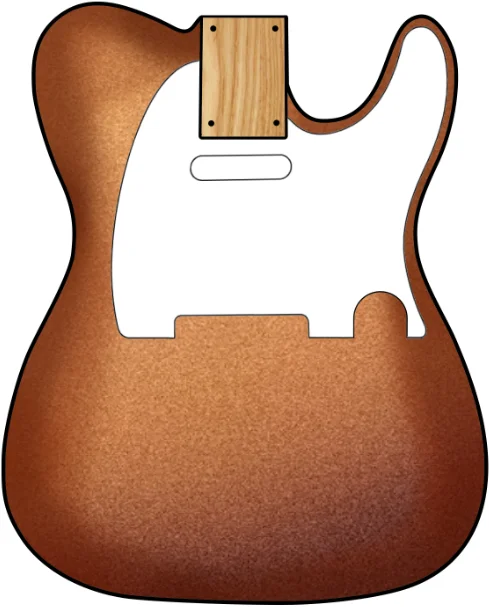

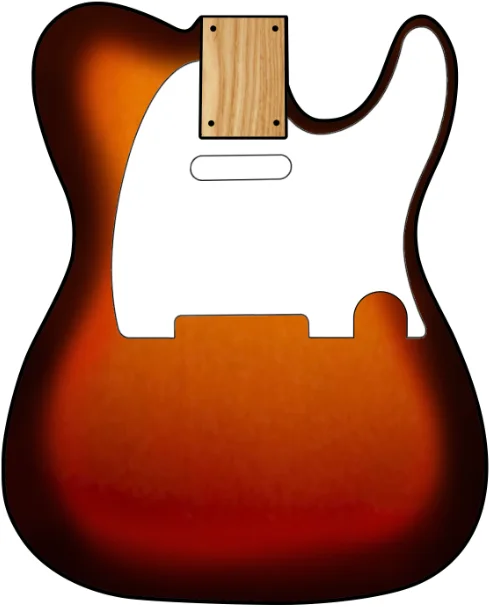

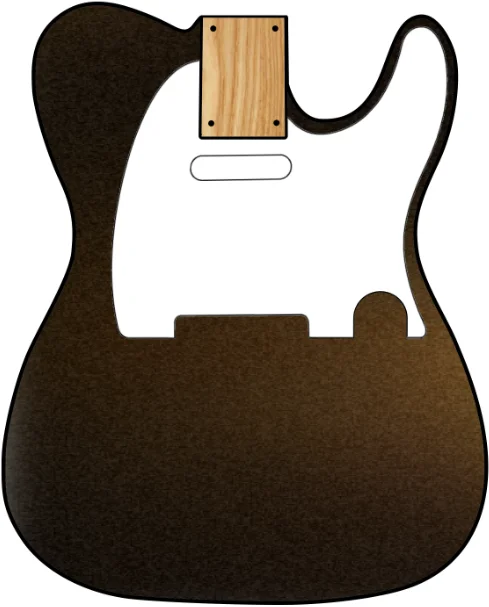

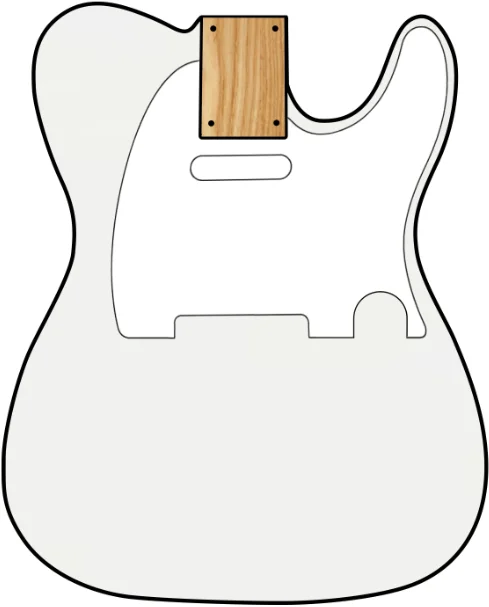

BODY

Wood: Alder

Lacquer: Gloss Urethane

Binding: Top Bound

Shape: Standard Telecaster | Belly Cut | Rear Horn Contoured Carve

Pickguard: Various, 8-Hole

• 3-Ply Mint Green (712, 732)
• 1-Ply Anodized Aluminum (790)
• 1-Ply Anodized Gold (713, 716)
• 4-Ply Aged White Pearloid (773)
• 3-Ply White (781)
• 3-Ply Aged White (795)

Serial: Headstock Rear / US+8 digits

NECK

Wood: Maple

Fretboard: Rosewood, Maple or Ebony (406, 713)

Inlay: White or Black Pearloid Dot

Neck Lacquer: Satin Urethane

Neck Profile: Modern "D"

Neck Thickness .820–.870  (20.8–22.1mm)

Headstock: Standard Tele

Nut Material: Natural Bone

Nut Width: 1.685" (42.8mm)

Scale: 25.5"

Radius: 10"–14" Compound (.106–.036)

#Frets: 22

Fretwire: 6130 Medium Jumbo (.106–.036)

Trussrod: Bi-Flex Headstock-Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: Modern 6-Saddle Bridge String-Thru

Bridge Marking: None

Saddles: Standard Off-Set Polished Steel Saddles

Tuners: Fender Deluxe Locking Tuners (All Short Post)

String Tree: Modern "T"

Knobs: Knurled Flat-Top

Control Plate: Chrome Standard

Strap Buttons: Schaller Strap Lock

Neckplate: 4-Bolt "Fender American Ultra" plate

ELECTRONICS

Switch: 3-Way Grigsby Blade / Barrel Switch-Tip

Wiring: Modified Wiring (N/NB/B)

Potentiometers:

• 1x CTS 250k S-1 Master Volume

• 1x CTS 250k Master Tone

AUX: S-1 Toggles Parallel/Series in Middle Position

Treble Bleed: PCB Treble Bleed

Capacitor .022uf Orange Drop

Pickup Config: SS

Neck Pickup: Ultra Noiseless Vintage Tele

Bridge Pickup: Ultra Noiseless Vintage Tele

ACCESSORIES & INFO

STORAGE: Elite Molded Case

STRINGS: 009-042 Nickel Plated Steel
