American Ultra II Telecaster

Model# 011-9171-XXX

 BODY

Wood: Select Alder

Lacquer: Gloss Uretahne

Shape: Ultra Contoured Telecaster | Belly & Arm Carve

Pickguard: 1-Ply Anodized Aluminum (8-Hole)

Serial: Headstock Rear / US Serial

NECK

Wood: Quartersawn Maple

Fretboard: Maple or Ebony

Neck Lacquer: Ultra Satin Urethane

Inlay: Black Pearloid Dots (Maple) / White Pearloid Dots (Ebony)

Side Dots: Fluorscent Luminlay Dots

Neck Profile: Modern "D"

Neck Thickness .820–.870  (21.3–22.2mm)

Headstock: Standard Tele

Nut Width: 1.685" (42.8mm)

Nut Material: Graph Tech TUSQ

Scale: 25.5"

Radius: 10”–14" Compound

#Frets: 22

Fretwire: 6130 Medium Jumbo (.106–.036)

Trussrod: Headstock Adjust Bi-Flex

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: Modern Flat 6-Saddle String-Thru Chrome

Bridge Marking: None

Saddle: Chromed Brass Block Offset Saddles

Tuners: Fender Deluxe Chrome Locking Tuners (All Short Post)

String Tree: Modern-T

Knobs: Heavy Knurled Flat-Top

Neckplate: 4-Bolt Contour Plate "Fender American Ultra II"

Strap Buttons: Schaller Strap-Lock

Control Plate: Slanted Switch Chrome Plate

ELECTRONICS

Switch: 3-Way CRL Blade / Barrel Switch Tip

Wiring: Modern Standard (N/NB/B)

Potentiometers:

• 1x 250k S-1 Master Volume
• 1x 250k Master Tone

Aux: Volume S-1 activates Series Wiring Option in any pickup position)

Treble Bleed: Treble Bleed PCB

Pickup Config: SS

Neck Pickup: Fender Ultra II Noiseless Single Coil

Bridge Pickup: Fender Ultra II Noiseless Single Coil

ACCESSORIES & INFO

CASE: Deluxe Molded Case

STRINGS .009-.042 Nickel Plated Steel

PRICE: $2.199.99 (on release)

CHANGES: (from previous Ultra)

- Quartersawn Neck

 - Luminlay Side dots

 - New Ultra Noiseless II Pickups

 - Anodized Pickguards (Was previously featured on two Ultra FSR Models)

 - Full Strat Contours

 - TUSQ Nut (only found on Ultra Luxe previously)

 - Ebony Fretboard (Was previously featured on two Ultra FSR Models)

 - S1 wired more verstatile

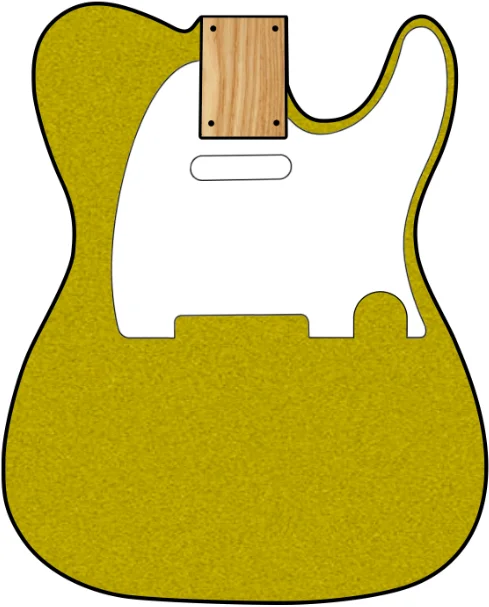

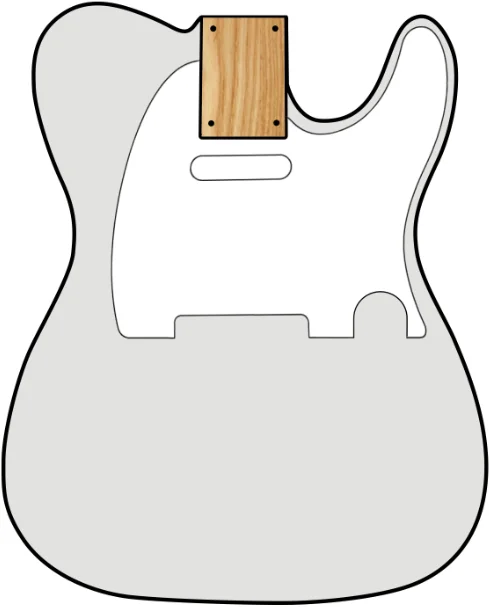

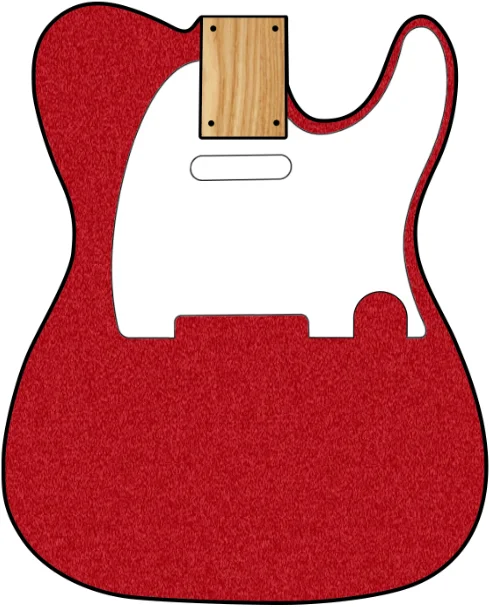

 - Three new Colors: (Avalanche (Similar to Polar White), Solar Flare, Sinister Red) (Texas Tea and Ultraburst returns)

 - Chromed Brass Saddles

 - Control Plate with Slanted Switch

 - Heavy Knurled Knobs
