USA STRATOCASTERS
American Deluxe Series (7/1998 -2004)
Successor: American Deluxe Stratocaster V.2
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Colors:
ALDER BODY:
3 Tone Sunburst *(857)
Black* (806)
Crimson Red Transparent* (838) (1998-2001)
Chrome Red* (725) (2001-2004)
Candy Tangerine (725) (2001-2004)
ASH BODY:
Teal Green Transparent (848)

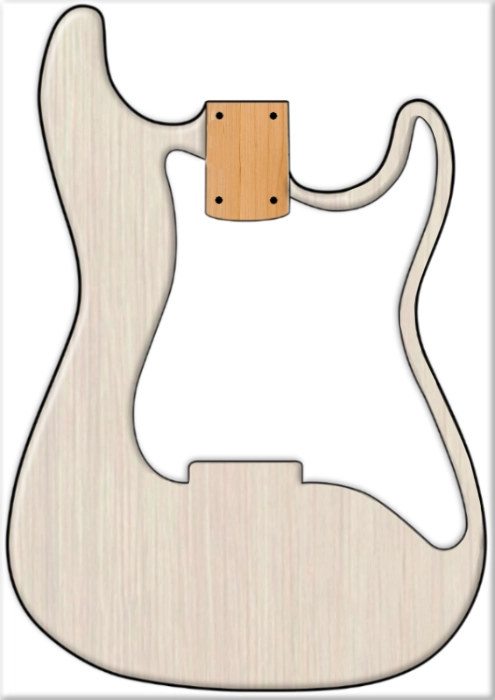

White Blonde *(883)
Purple Transparent (894) (1998-1999)
Natural (821) (7/1999-)

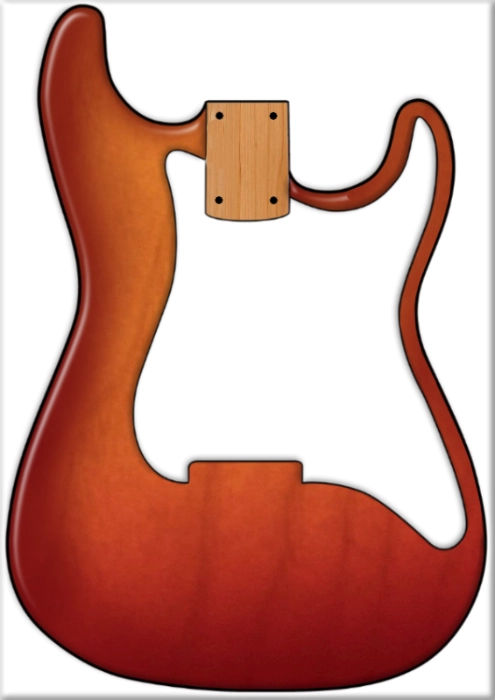

Aged Cherry Burst* (731) (2001-2004)
FSR: (Yamano International Distr.)
Daphne Blue (804
Olympic White (805)
Dakota Red (854)
Surf Green (857)
* = Left Handed Models in this color
Model# 010-1002-XXX (Maple)
Model# 010-1000-XXX (Rosewood)
Model# 010-1020-XXX (Maple) Left Handed (2000-)
Model# 010-1022-XXX (Rosewood) Left Handed (2000-)
BODY
Wood: Alder or Select Ash (801, 848, 894, 821)
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: ‘50s Deep Contours
Pickguard: 3-Ply Mint 11-hole
Pickup Routing: HSH
Serial: Rear Headstock | TN+6 digit | Z+6 digit | DZ+ 6 digit
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Abalone Dots
Side Markers: White Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830” - .870”
Headstock:Classic Style Small
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point Deluxe Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In
Tuners: Schaller/Fender Deluxe Staggered Locking
String Tree: Ezy-Glyde
Knobs: Standard Aged White Knobs
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way CRL / Aged White Tip
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pot:
Pickup Config: SSS
Treble Bleed: Yes
Neck Pickup: Fender Vintage Noiseless Single Coil
Middle Pickup: Fender Vintage Noiseless Single Coil
Bridge Pickup: Fender Vintage Noiseless Single Coil
CASE: Standard Tolex or Black Hardshell Case
INFO:
The Deluxe models saw the birth of Fenders own noiseless pickups.
With new CNC machines, they went back to the classic 50s contours and started featuring rolled edges on the USA Line.
Despite being a DELUXE model, the S1 switches are still abscent with just standard switch configuration and no bells and wistles of any kind.
