USA STRATOCASTERS
American Deluxe Series (2004-2010)
Deluxe HSS
Model# 010-1500-XXX (Rosewood)
Model# 010-1502-XXX (Maple)
Model# 010-1590-XXX (Maple) Locking Tremolo (2004-2006)
Model# 010-1592-XXX (Maple) Locking Tremolo (2004-2006)
BODY
Wood: Select Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickup Routing: HSH
Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Fret Markers: Abalone Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830”-.870”
Headstock: Classic Style Small | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: LSR Roller Nut
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point American Deluxe Tremolo (010-1500/1502)
Bridge: Floy Rose Mini Locking (010-1590/1592)
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In / No-Tip
Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered
String Tree: None
Neckplate: 4-Bolt “Fender Corona California”
Strap Buttons: Schaller Strap Lock
PLASTIC HARDWARE
Pickguard: Various 11-hole:
• 4-Ply Black Moto (791)
• 3-Ply Mint Green (700)
• 4-Ply Brown Shell (720, 723)
• 4-Ply White Pearloid (782)
• 1-Ply Beveled Vinyl Gold (764)
Plastic Kit: (Knobs, PU Covers, Tips)
• Aged White (700, 720, 782, 723)
• Black (764, 791, 838)
ELECTRONICS
Switch: 5-Way Grigsby Super Switch / Std. Tip
Wiring: Custom Wiring (Standard N/NM/M/MB/B (with S-1 Off)
S-Switch Engaged (Down):
Pots: 3 Pots
AUX: S1-Switch Activate Series / Parallell modes
Capacitor: .022uf
Pickup Config: HSS
Neck Pickup: Hot Samarium Cobalt Noiseless (SCN) Single-Coil (10.3k)
Middle Pickup: Hot Samarium Cobalt Noiseless (SCN) Single-Coil (10.3k)
Bridge Pickup: Fender DH-1 Humbucker (14.8k)
ACCESSORIES & INFO
CASE: Standard Molded
STRINGS: Nickel Plated Steel .009-.042
Colors:
RH
3 Tone Sunburst (700)

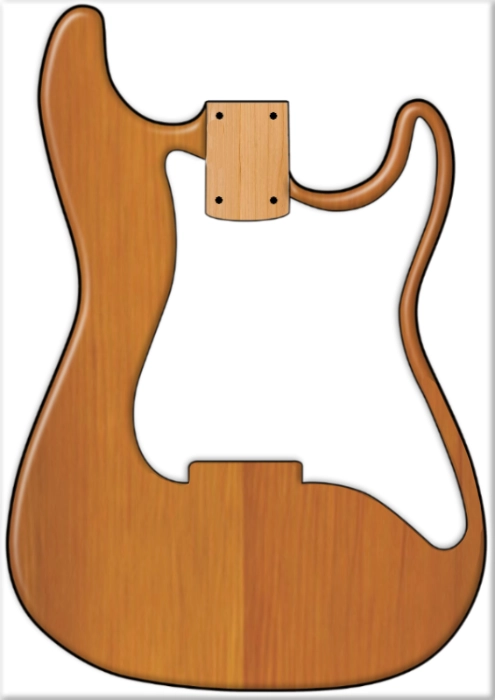

Amber (720)
Montego Black (764)
Candy Tangerine (782) (2004-7/2006)

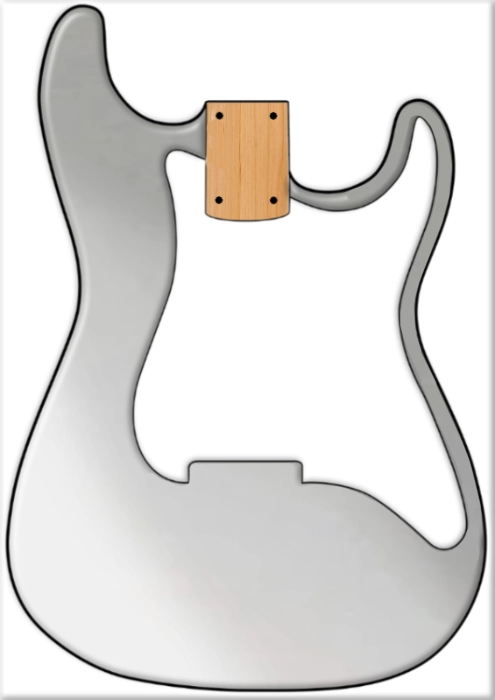

Chrome Silver (791)
Olympic Pearl (723) (7/2006-)
Colors:
LH
3 Tone Sunburst (700)
Montego Black (764)

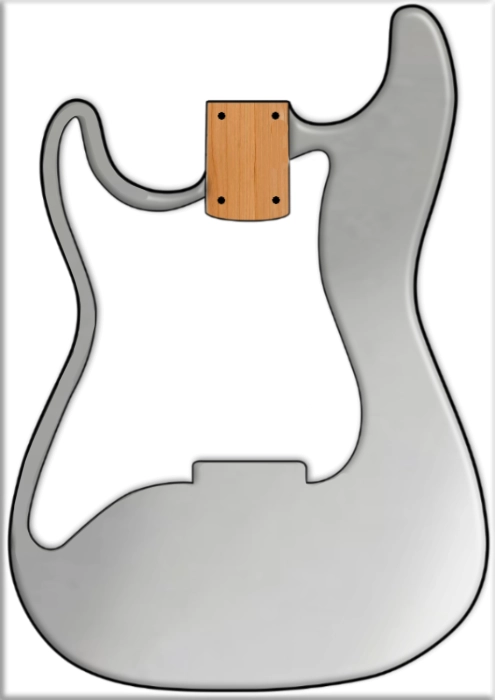

Chrome Silver (791)
Replaces: American Deluxe Fat Strat
Wiring Diagram
Bridge Info
Service Manual
DECAL:
USA STRATOCASTERS
American Deluxe Series (2004-2010)
Colors:
Aged Cherry Burst (731)
Butterscotch Blonde (750)
Tobacco Sunburst (752)
All colors also for Left-Handed
Model # 010-1400-XXX (Rosewood)
Model # 010-1402-XXX (Maple)
Model# 010-1420-XXX (Rosewood) Left Handed
Model# 010-1422-XXX (Maple) Left Handed
BODY
Wood: Premium Ash
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickup Routing: HSH
Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Abalone Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830” - .870”
Headstock: Classic Style Small
Nut Width: 1.685” (42.8mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point American Deluxe Synchronized Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In / No-Tip
Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered
String Tree: Ezy-Glyde
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
PLASTIC HARDWARE
Pickguard: Various 11-hole:
Plastic Kit: (Knobs, PU Covers, Tips)
ELECTRONICS
Switch: 5-Way Oak Grigsby Super Switch w/ Std Tip
Wiring: Custom Wiring (Standard N/NM/M/MB/B with S-1 Off)
S-Switch Engaged (Down):
Pots: 3 Pots
AUX: S1-Switch Activated Series / Parallell mode
Capacitor .022uf
Pickup Config: SSS
Neck Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Middle Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Bridge Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (7.1k)
ACCESSORIES & INFO
CASE: Standard Molded Case
STRINGS: 009-042 Nickel Plated Steel
Wiring Diagram
Bridge Info
Service Manual
DECAL:
USA STRATOCASTERS
American Deluxe Series (2004-2010)
Colors:
2-Tone Sunburst (703)
Montego Black (764)
Candy Apple Red (709)
Honey Blonde (767)
Deluxe V-Neck
Model# 010-1302-XXX (Maple)
BODY
Wood: Select Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickup Routing: HSH
Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Abalone Dots
Neck Finish: Satin Urethane
Neck Profile: Soft “V”
Neck Depht .870”-.890”
Headstock: Classic Style Small
Nut Width: 1.685” (42.8mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point American Deluxe Synchronized Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In / No-Tip
Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered
String Tree: Ezy-Glyde
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
PLASTIC HARDWARE
Pickguard: 1-Ply Beveled Vinyl
Plastic Kit: (Knobs, PU Covers, Tips)
ELECTRONICS
Switch: 5-Way Blade / Std. Tip
Wiring: Custom Wiring (Standard N/NM/M/MB/B with S-1 Off)
S-Switch Engaged (Down):
Pots: 3 Pots
AUX: S1-Switch Activates Series / Parallell mode
Capacitor .022uf
Pickup Config: SSS
Neck Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Middle Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Bridge Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (7.1k)
ACCESSORIES & INFO
CASE: Standard Molded Case
STRINGS: Nickel Plated Steel .009-.042
Wiring Diagram
Bridge Info
Service Manual
DECAL:
USA STRATOCASTERS
American Deluxe Series (2004-2010)
Deluxe SSS
Model# 010-1200-XXX (Rosewood)
Model# 010-1202-XXX (Maple)
Model# 010-1220-XXX (Rosewood) Left Handed
Model# 010-1222-XXX (Maple) Left Handed
BODY
Wood: Select Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickup Routing: HSH
Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Abalone Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830”-.870”
Headstock: Classic Style Small | Gloss Urethane
Nut Width: 1.685” (42.8mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point American Deluxe Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In / No-Tip
Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered
String Tree: Ezy-Glyde
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
PLASTIC HARDWARE
Pickguard: Various 11-hole:
Plastic Kit: (Knobs, PU Covers, Tips)
ELECTRONICS
Switch: 5-Way Grigsby Super Switch / Std-Tip
Wiring: Custom Wiring (Standard N/NM/M/MB/B with S-1 Off)
S-Switch Engaged (Down):
Pots: 3 Pots
AUX: S1-Switch Activates Series / Parallel modes
Capacitor .022uf
Pickup Config: SSS
Neck Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Middle Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Bridge Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (7.1k)
ACCESSORIES & INFO
CASE: Standard Molded Case
STRINGS: Nickel Plated Steel .009-.042
Colors:
3 Tone Sunburst (700)
Montego Black (764)
Chrome Silver (791)
3 Tone Sunburst (700)
Amber (720)
Montego Black (764)
Candy Tangerine (782) (2004-7/2006)
Chrome Silver (791)
Olympic Pearl (723) (7/2006-)
FSR & LIMITED EDITIONS
Crimson Red Tranparent (838) (2004) Mahogany Body Matching Headstock
Replaces: American Deluxe Stratocaster
