USA STRATOCASTERS
American Deluxe Series (2000-2007)
Successor: American Standard V.1
Colors:
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
ALDER BODY:
3 Tone Sunburst* (700)
Black* (706)
Hot Rod Red* (715) (2000-2002)
Chrome Red* (725) (2000-)

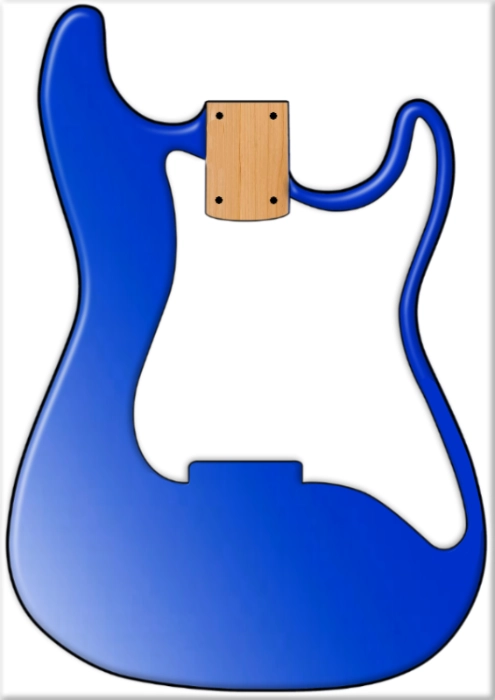

Chrome Blue (795) (2000-7/2006)
Aqua Marine Metallic (774) (2000-8/2002)
Olympic White (705) (2000-)

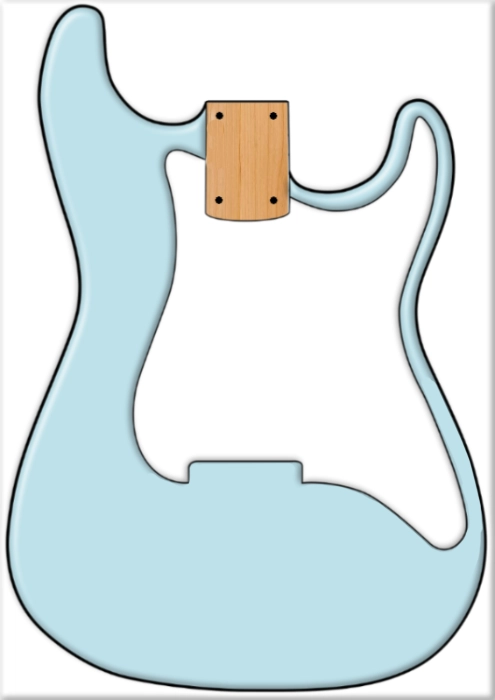

Sky Blue (751) (2000-7/2003)
Crimson Red Transparent (738) (2000-8/2002)
Butterscotch Blonde (750) (7/2003-) MPL neck Only
Charcoal Frost Metallic (769) (7/2006-2/2007)
Shoreline Gold (744) (7/2006-End)
ASH BODY:
2-Tone Sunburst (703) (2000-8/2002) MPL Neck only
White Blonde* (701) (2000-8/2002)
Natural (721) (2000-8/2002)
FSR:
Coral Metallic (742) Rosewood (2001) 100 made
* = Hard Tail & Left Handed in this color
Model# 011-7402-XXX (Maple)
Model# 011-7400-XXX (Rosewood)
Model# 011-7430-XXX (Hard-Tail ,Rosewood)
Model# 011-7432-XXX (Hard-Tail, Maple)
Model# 011-7420-XXX (Left-Hand Rosewood)
Model# 011-7422-XXX (Left-Hand Maple)
BODY
Wood: Alder or Ash (703, 701, 721)
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Standard Modern USA Contours
Pickguard: 3-Ply Parchment 11-hole (1-Ply Black on 750)
Pickup Routing: HSH
Serial: Rear Headstock | Z+6-digits
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Black or White Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830” - .880”
Headstock: Classic Style Small
Nut Width: 1.685 (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point American Standard Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Tapered Steel Block
Saddles: Stainless Steel, Matte Block Saddles
Trem Arm: Pop-In w/ Tip
Tuners: Schaller/Fender Standard Die Cast, Sealed
String Tree: Ezy-Glyde
Knobs/Cover: Parchment Standard (Black on 750)
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way Oak Grigsby / Aged White Tip
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pots
Pickup Config: SSS
Neck Pickup: American Standard 016730 Single Coil Plastic Bobbin
Middle Pickup: American Standard 016730 Single Coil Plastic Bobbin
Bridge Pickup: American Standard 016730 Single Coil Plastic Bobbin
CASE: Standard Molded Case
Wiring Diagram
Bridge Info
Service Manual
DECAL:
