USA STRATOCASTERS
Artist Signature Series (2023-Today)
Colors:
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance

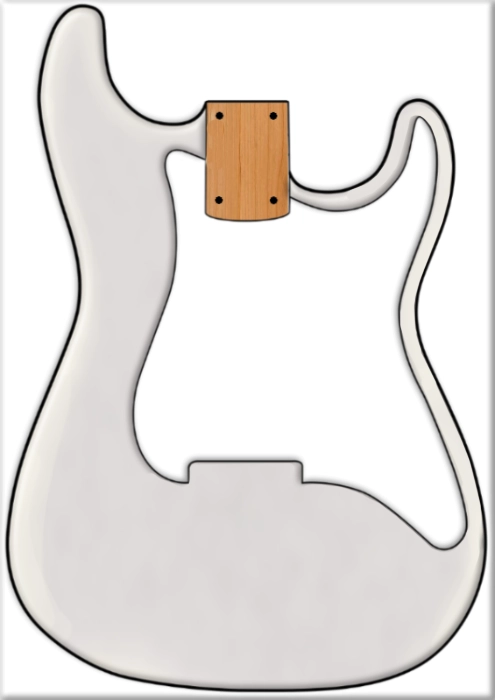

Luna White (782)
Model# 011–5610-839 (Maple)
BODY
Wood: Alder
Lacquer: Satin Nitrocellulose
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickguard: 3-Ply Parchment, 11-Hole
Pickup Routing: HSH
Serial: Under Decal Headstock | JL + 6 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple
Fret Markers: Black Dot
Neck Finish: Satin Urethane
Neck Profile: Deep “C”
Neck Depht .820”–.920”
Headstock: Standard Classic | Gloss Urethane
Nut Width: 1.650” (42.0 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 10”–14” Compound
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Professional Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Slanted Cold-Rolled Steel Block
Saddles: Nickel Plated Bent Steel “FENDER”
Trem Arm: Pop-In w/ Tip
Tuners: Fender/Schaller Staggered Locking Tuners
String Tree: Modern-T
Plastic HW: Standard Parchment Plastic
Neckplate: 4-Bolt Guitarista Ornament “Fundacion Mi Sangre” Laser Etched
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way Oak Grigsby / Std Tip
Wiring: Custom Modern (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k S-1 Master Volume (Mid-Boost On/Off)
• 1 x CTS 250k Master Tone
• 1 x CTS 250k Custom Mid-Boost Circuit Pot
AUX: Custom Voiced 12db Mid-Boost Kit
Other: Battery 9V Operated
Capacitor .022uf (T1)
Pickup Config: HSS
Neck Pickup: Custom Juanes Ultra Noiseless (Alnico 5)
Middle Pickup: Custom Juanes Ultra Noiseless (Alnico 5)
Bridge Pickup: Custom Juanes Alnico II Humbucker
CASE: Deluxe Molded Case
STRINGS .010 -.046 Nickel Plated Steel
INFO:
based on American Professional blueprint.
