USA STRATOCASTERS
American Ultra Series (2023-Today)
Replaces: American Ultra
Colors:
EBONY FRETBOARD:
Ultraburst (712)
Noble Blue (776)
Texas Tea (790)
MAPLE FRETBOARD:
Solar Flare (733)

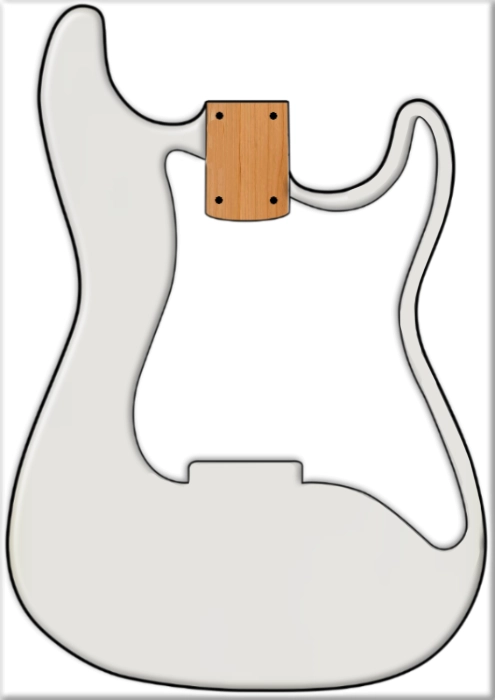

Avalanche (796)
Sinister Red (799)
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Left Handed Versions:

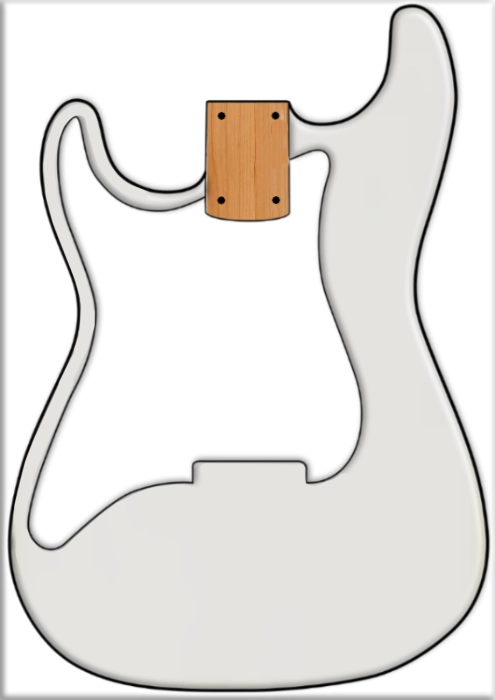

Ultraburst (712), Texas-Tea (709), Avalanche (796)
Model# 011-9141-XXX (Ebony)
Model# 011-9142-XXX (Maple)
Model# 011-9161-XXX (Ebony Left-Handed)
Model# 011-9162-XXX (Maple Left-Handed)
BODY
Wood: Select Alder
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours, Carved Rear Upper Horn
Pickguard: Anodized Aluminum , 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 or 9 digits
NECK
Wood: Quartersawn Maple
Fretboard: Maple or Ebony
Fret Markers: White or Black Pearloid Dot
Neck Finish: Ultra Satin Urethane
Neck Profile: Modern “D”
Neck Depht .820”–.870”
Headstock: Standard Classic | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Graph Tech TUSQ
Scale: 25.5"
Radius: 10”–14” Compound
#Frets: 22
Fretwire: 6120 Medium Jumbo (.056-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: No
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Ultra/Deluxe Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Saddles: Polished Stainless Steel Blocks
Trem Arm: Pop-In, No-Tip
Tuners: Fender/Schaller Short-Post Locking Tuners
String Tree: Modern T-Wing
Knobs: Soft Touch Knobs Plastic (Various Colors)
Neckplate: 4-Bolt “Fender American Ultra II”
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way- 4-Pole Descrete Super Switch
Wiring: 7-Way Wiring (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume , S-1 Switch
• 1 x CTS 250k Tone Control (Neck)
• 1x CTS 250k Tone Control (Middle+Bridge)
AUX: S-1 Switch adds Neck Pickup in pos. 4 & 5
Capacitor .022uf (T1+T2)
Treble Bleed: PCB Circuit
Pickup Config: SSS
Neck Pickup: Ultra II Noiseless Vintage Single Coil
Middle Pickup: Ultra II Noiseless Vintage Single Coil
Bridge Pickup: Ultra II Noiseless Vintage Single Coil
CASE: Elite Molded Case
STRINGS .009 -.042 Nickel Plated Steel
