USA STRATOCASTERS
American Ultra Series (2019-2024)
Replaces: American Elite | Successor: American Ultra II
Colors:
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
ALDER BODY:
Ultraburst* (712)

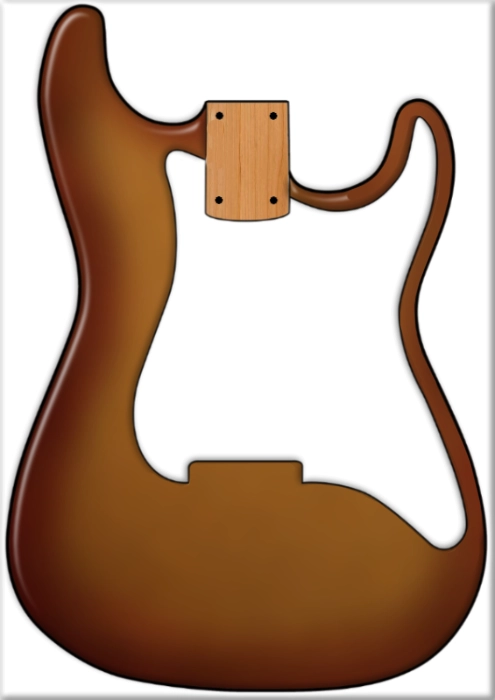

Mochaburst* (732)

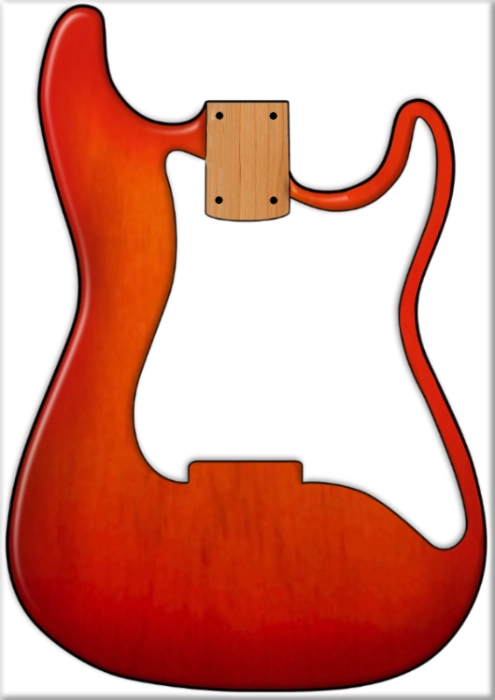

Plasma Red Burst (773) (2020 Only)

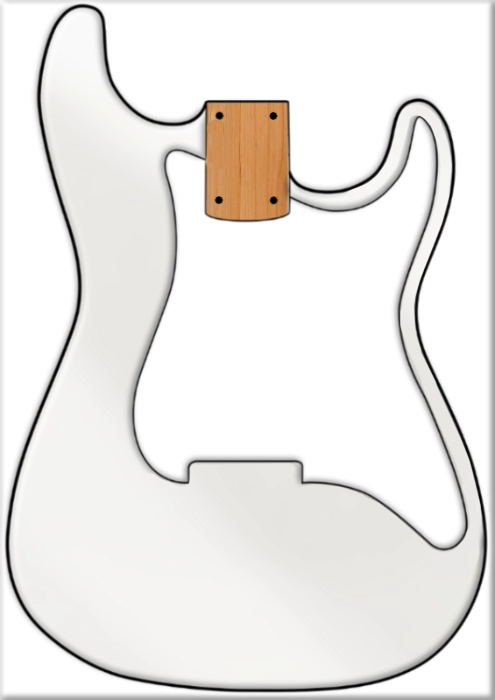

Arctic Pearl* (781)

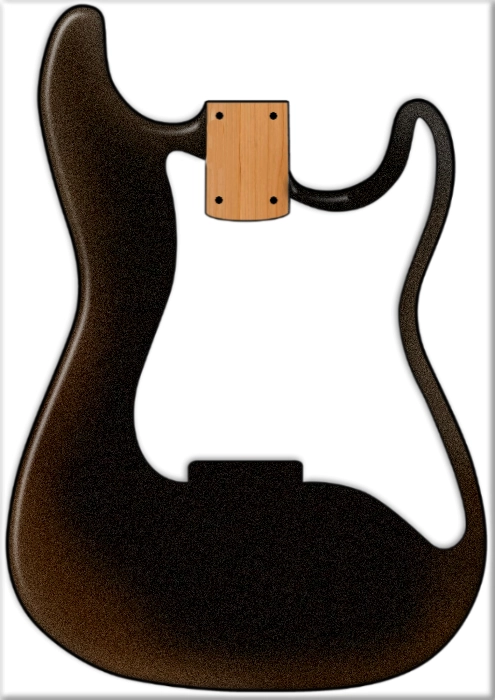

Texas Tea* (790)
Cobra Blue* (795) Rosewood Only

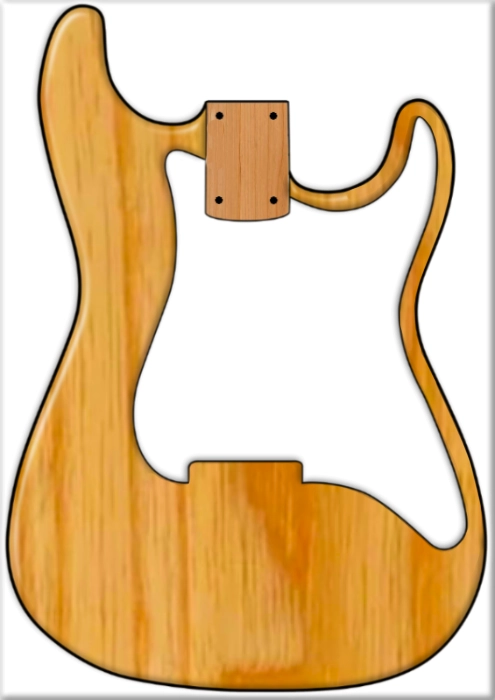

Aged Natural (734) (2020 Only) Ash Body
LTD / FSR:
Black (706) (2020) Roasted Maple Neck FSR
Seafoam Green (757) (2022) Roasted Neck
Honeyburst (742) (2022) Roasted Neck Sweetwater Exclusive

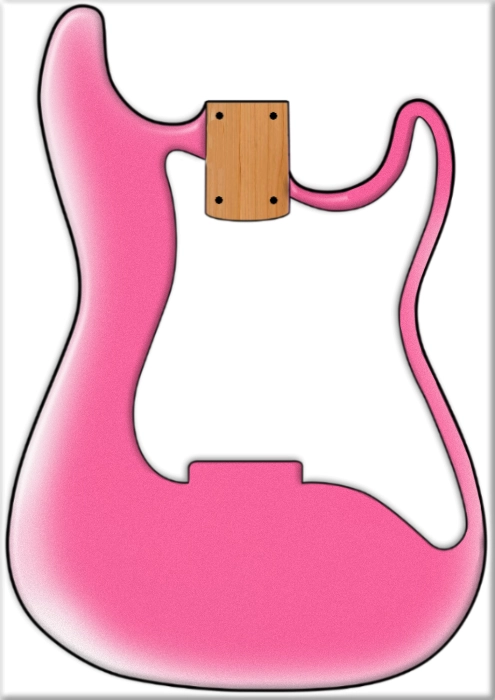

Bubble Gum Metallic (798) (2023) Ebony Fretboard Fender LTD

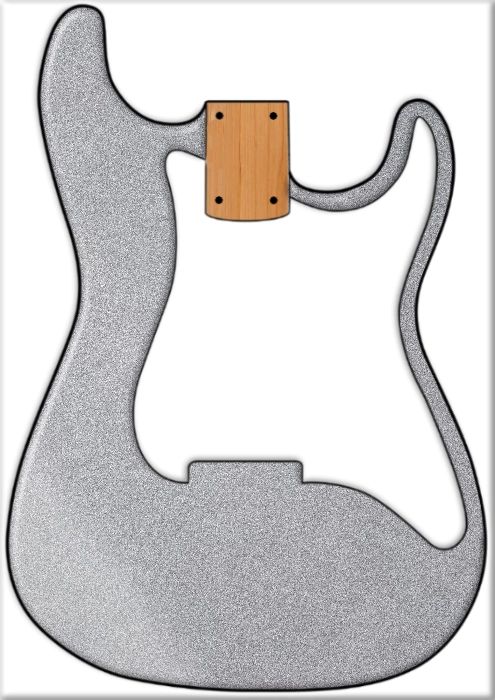

Quick Silver (722) (2022) Ebony Fretboard
Plum Metallic (713) (2023) Ebony Fretboard
Mystic Pine (716) (2023) Ebony Fretboard CME Exclusive
* = Left Handed Version
Model# 011-8010-XXX (Rosewood)
Model# 011-8012-XXX (Maple)
Model# 011-8130-XXX (Rosewood Left-Handed)
BODY
Wood: Alder (Ash on 734)
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours, Carved Rear Upper Horn
Pickguard: Various, 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple or Rosewood
Fret Markers: White or Black Pearloid Dot
Neck Finish: Ultra Satin Urethane
Neck Profile: Modern Deep “D”
Neck Depht .820”–.870”
Headstock: Standard Classic | Gloss Urethane
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 10” - 14” Compound
#Frets: 22
Fretwire: 6120 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: No
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Ultra Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Steel Block Tapered
Saddles: Chrome Polished Steel Offset Block Saddles
Trem Arm: Pop-In, No-Tip
Tuners: Fender/Schaller Staggered Locking Tuners
String Tree: Modern T-Wing
Knobs/Cover: Standard Plastic, Vintage White
Neckplate: 4-Bolt “Fender American Ultra”
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way, 4-Pole Descrete Super Switch
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pots
AUX: S-1 Switch adds Neck Pickup in pos. 4&5
Capacitor .022uf (T1+T2)
Treble Bleed: PCB Circuit
Pickup Config: SSS
Neck Pickup: Ultra Noiseless Vintage Single Coil
Middle Pickup: Ultra Noiseless Vintage Single Coil
Bridge Pickup: Ultra Noiseless Vintage Single Coil
CASE: Elite Molded Case
STRINGS .009 –.042 Nickel Plated Steel
LIMITED EDITIONS
American Ultra Series (2021-2023)
Colors:
Colors:

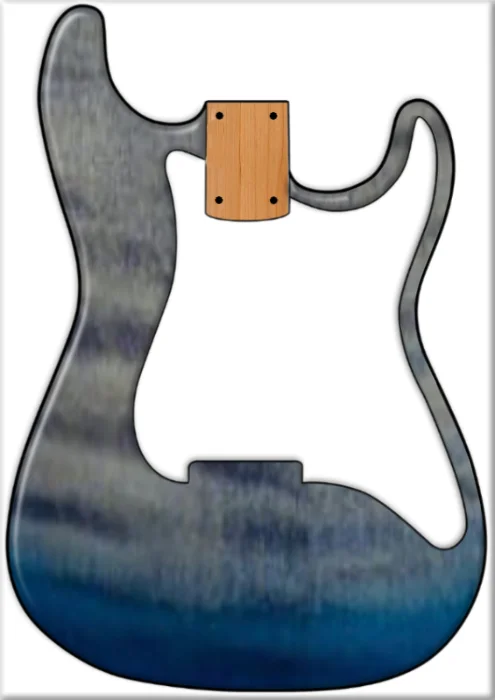

Denim Burst (712) 2021
Umbra Burst (732) 2022
Tiger’s Eye (773) 2023
Model# 011-8010-XXX (Ebony)
BODY
Wood: Alder w/ Flame Maple Top
Lacquer: Gloss Urethane
Shape: Standard Stratocaster
Contours: Modern USA Contours, Carved Rear Upper Horn
Pickguard: 3-Ply Black, 11-Hole
Pickup Routing: HSH
Serial: Rear Headstock | US + 8 digits
NECK
Wood: Flatsawn Maple
Fretboard: Striped Ebony
Fret Markers: White Pearloid Dot
Neck Finish: Ultra Satin Urethane
Neck Profile: Modern Deep “D”
Neck Depht .850”–.880”
Headstock: Standard Classic | Gloss Black
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 10” - 14” Compound
#Frets: 22
Fretwire: 6120 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: No
Contoured Heel: Yes
HARDWARE
Bridge: 2-Point American Ultra Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Steel Block Tapered
Saddles: Chrome Polished Steel Offset Block Saddles
Trem Arm: Pop-In, No-Tip
Tuners: Fender/Schaller Deluxe Staggered Locking Tuners
String Tree: Modern T-Wing
Knobs/Cover: Standard Plastic, Vintage White
Neckplate: 4-Bolt “Fender American Ultra”
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way, 4-Pole Descrete Super Switch
Wiring: Standard Modern (N/NM/M/MB/B)
Pots: 3 Pots
AUX: S-1 Switch adds Neck Pickup in pos. 4&5
Capacitor .022uf (T1+T2)
Treble Bleed: PCB Circuit
Pickup Config: SSS
Neck Pickup: Ultra Noiseless Vintage Single Coil
Middle Pickup: Ultra Noiseless Vintage Single Coil
Bridge Pickup: Ultra Noiseless Vintage Single Coil
CASE: Elite Molded Case
STRINGS .009 –.042 Nickel Plated Steel
INFO:
Each color came yearly and replaced the previous.
