American Ultra II HSS Stratocaster

Model# 011-9151-XXX (Ebony)

Model# 011-9152-XXX (Maple)

Model# 011-9161-XXX (Ebony Left-Handed)

Model# 011-9162-XXX (Maple Left-Handed)

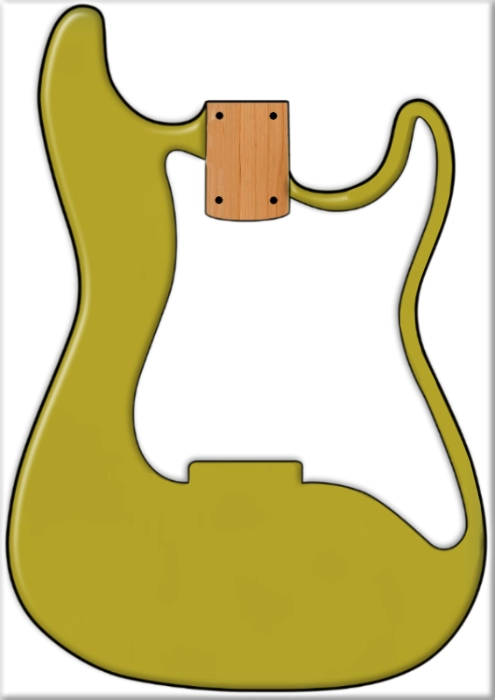

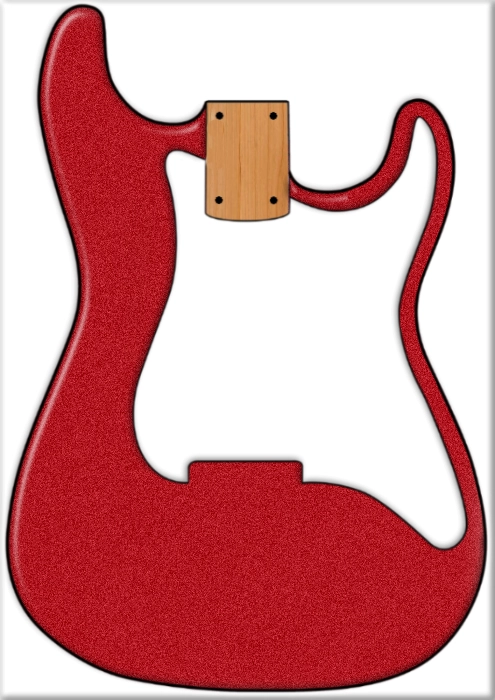

BODY

Wood: Select Alder

Lacquer: Gloss Urethane

Shape: Standard Stratocaster

Contours: Modern USA Contours, Carved Rear Upper Horn

Pickup Routing: HSH

Serial: Rear Headstock | US + 8 or 9 digits

NECK

Wood: Quartersawn Maple

Fretboard: Maple or Ebony

Fret Markers: White Pearloid or Black Pearloid Dot

Neck Finish: Ultra Satin Urethane

Neck Profile: Modern “D”

Neck Depht .820”–.870”

Headstock: Standard Classic | Gloss Urethane

Nut Width: 1.685” (42.8nm)

Nut Material: Graph Tech TUSQ

Scale: 25.5"

Radius: 10”–14” Compound

#Frets: 22

Fretwire: 6120 Medium Jumbo (.056-.103)

Trussrod: Bi-Flex Headstock Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: 2-Point American Ultra Tremolo

• Mount Spacing: 2–7/32 (56.4mm
• Bridge Spacing: 2–1/16 (52.4mm)

Block: Cold Rolled Steel

Saddles: Polished Stainless Steel Blocks

Trem Arm: Pop-In, No Tip

Tuners: Fender/Schaller All Short-Post Locking Tuners

String Tree: Modern T-Wing

Neckplate: 4-Bolt “Fender American Ultra II”

Strap Buttons: Schaller Strap Lock

PLASTIC HARDWARE

Pickguard / Rear Cover: 1-Layer Anodized Aluminum , 11-Hole

• Black (776, 773, 799)

• Silver (790, 796)

• Gold (712, 716)

Plastic Kit: (Soft Touch Knobs, PU Covers & Switch Tip)

• Black (733)

• Parchment (776, 796, 790)

• Aged White (712, 716, 799)

ELECTRONICS

Switch: 5-Way/4-Pole Descrete Super Switch / Std. Tip

Wiring: Standard Modern (N/NM/M/MB/B)

Pots: 3 Pots

• 1x CTS 250k Master Volume , S-1 Switch
• 1x CTS 250k Tone Control (Neck+Middle)
• 1x CTS 250k Tone Control (Bridge)

AUX: S-1 Switch Coil Splits Humbucker

Capacitor .022uf (T1+T2)

Treble Bleed: PCB Circuit Bleed

Pickup Config: HSS

Neck Pickup: Ultra II Noiseless Vintage Single Coil

Middle Pickup: Ultra II Noiseless Vintage Single Coil

Bridge Pickup: Fender Haymaker Humbucker

ACCESSORIES & INFO

CASE: Elite Molded Case

STRINGS .009 -.042 Nickel Plated Steel
