Wilkinson has the largest selection of Tremolo systems. They have both a high-end line and then they have the M-series line which is the economy models. The M-Series is made in Asia trough various factories over time. These days made in China at the Mingshi Musical Instruments factory. This page gather various models under the M-Series line that Wilkinson Direct do not list. And there is several of them. The M-series are sold on various sites and the series sort of lives it own life. Wilkinson themselves do not stock them. Specs also presented
The WOV line comes in 10 different models and spacings, and is the most budget friendly ones. Some comes with shorter 36mm blocks and some with 40mm blocks. Be vary of this when ordering. All models comes in 3 colors and features Push-Fit tremolo arms and all parts for mount.

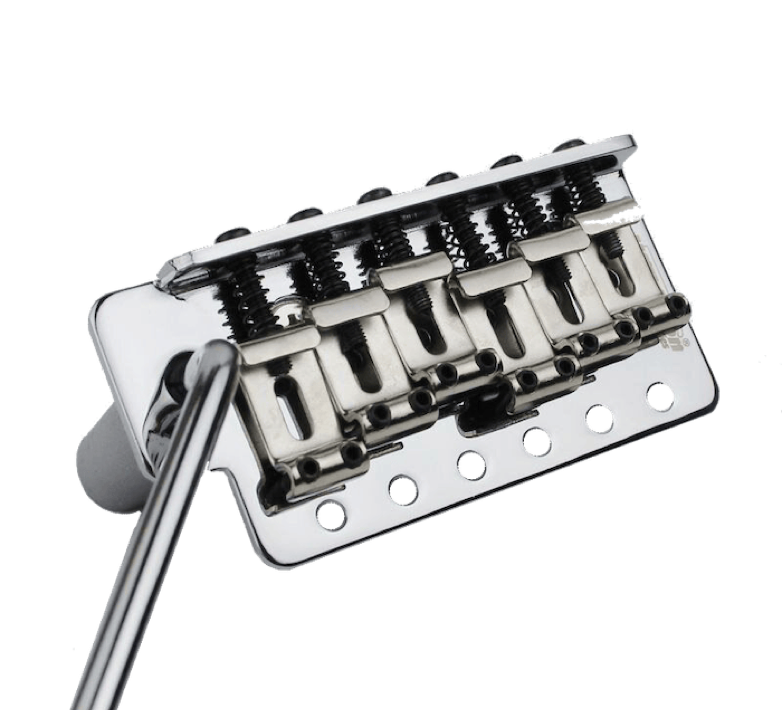

WOV01
Mount Spacing: Narrow 2-1/16 (52.5mm) or 2-7/32 (56mm)
String Spacing: Narrow 2-1/16 (52.5mm)
Block: Full Size 36mm Zink block
Saddles: Non-branded bent steel Chrome plated
Arm: Chrome Std
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER: Seems both wide and narrow mount spacing goes under the same model name. Be vary of this when ordering.

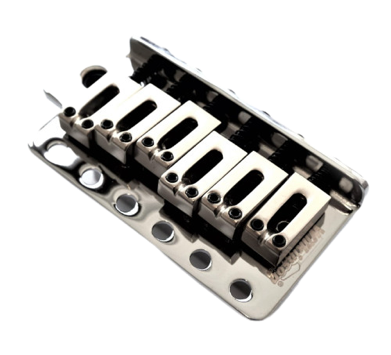

WOV02
Style: 6-Screw Mount Vintage
Mount Spacing: Narrow 2 1/16 (52.5mm) or 2-7/32 (56mm)
String Spacing: Narrow 2 1/16 (52.5mm)
Block: Full Size Zink block (40 or 36mm)
Saddles: Block Aluminum Saddles (10.4mm)
Arm: Chrome Std
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER: Same as WOV01, but with block saddles.
Seems both wide and narrow mount spacing goes under the same model name. Be vary of this when ordering.
Also seems like these can come with Squier size block. 36mm.

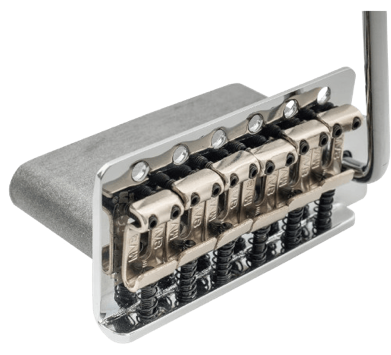

WOV03
Style: 6-Screw Mount Vintage
Mount Spacing: Japan 2 1/8 (54mm)
String Spacing: Japan 2 1/8 (54mm)
Block: Full Size Zink block (36mm)
Saddles: 10.8mm Bent Steel with "MVB" stamp
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:
This model is for Japan models only. Will not fit Mexican/USA strats.

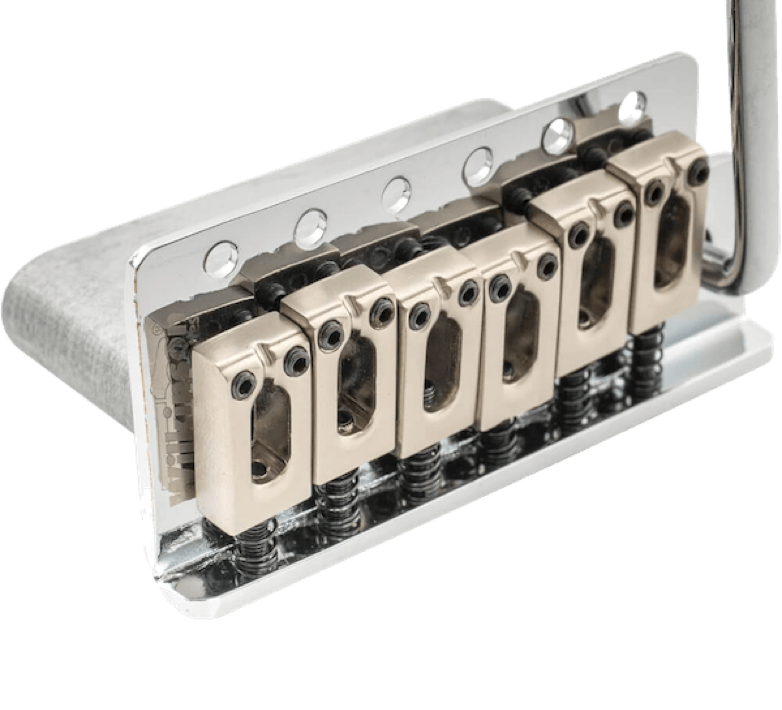

WOV04
Style: 6-Screw Mount Vintage
Mount Spacing: Japan 2 1/8 (54mm) Six Screw
String Spacing: Japan 2 1/8 (54mm)
Block: Full Size Zink block (36mm)
Saddles: Notched Aluminum Saddles (10.8mm)
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:
This model is for Japan models only. Will not fit Mexican/USA strats.

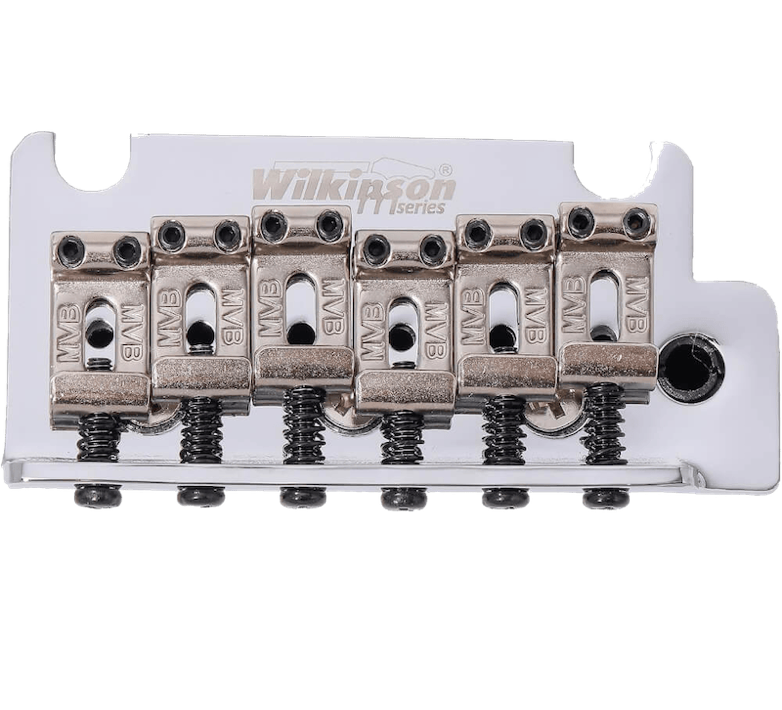

WOV05
Style: 2-Point Mount Modern
Stud Spacing: 2-7-32" (56mm)
String Spacing: 2 1/8 (54mm)
Block: Full Size Zink block (36mm)
Saddles: Bent Steel w/ MVB logo stamp (10.8mm)
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:

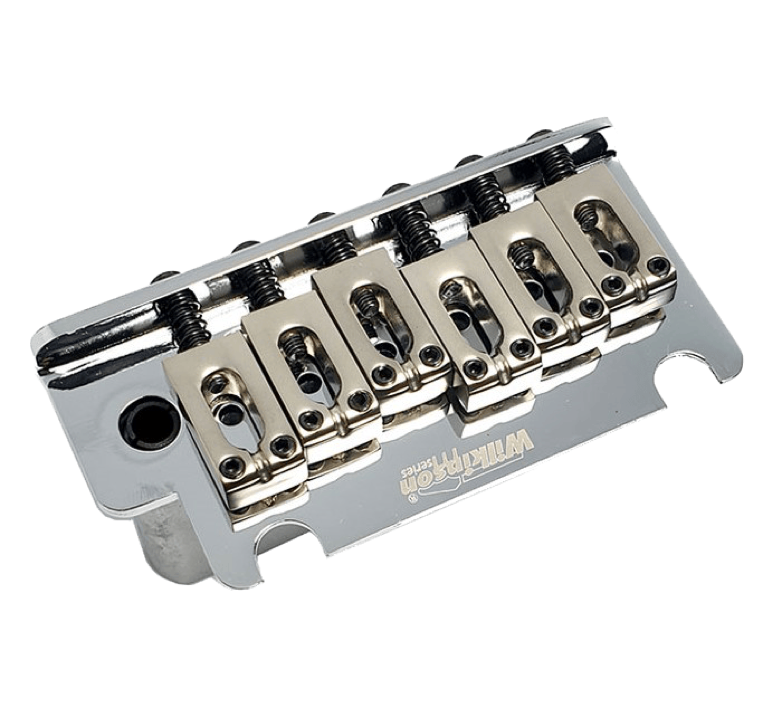

WOV06
Style: 2-Point Mount Modern
Stud Spacing: 2-7⁄32" (56mm)
String Spacing: 2 1/8 (54mm)
Block: Full Size Short Zink block (36mm)
Saddles: Block Aluminum Saddles (10.8mm)
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:

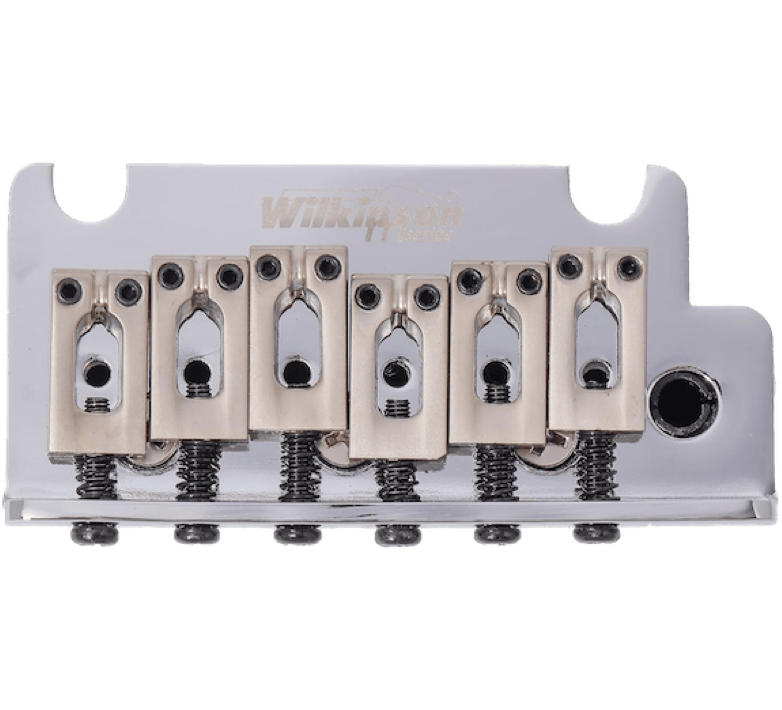

WOV07
Style: 2-Point Mount Modern
Stud Spacing: 2-7⁄32" (56mm)
String Spacing: 2 1/8 (54mm)
Block: Full Size Short Zink block (36mm)
Saddles: Block Aluminum Saddles (10.8mm)
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:

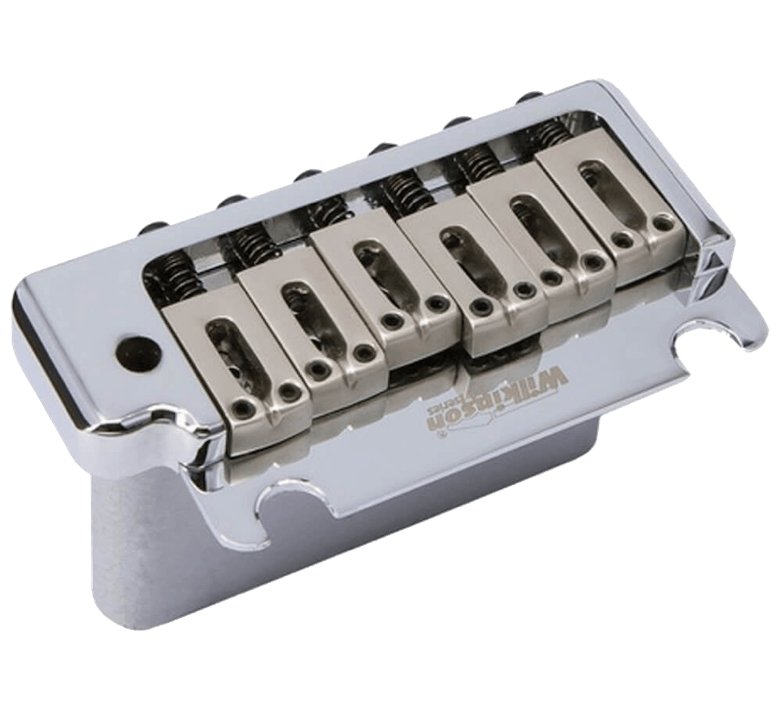

WOV08
Style: 2-Point Mount PRS Style
Stud Spacing: 2-7⁄32" (56mm)
String Spacing: 2-1/16 (52.5mm)
Block: Full Size Zink block (40mm)
Saddles: Block Steel Saddles
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:

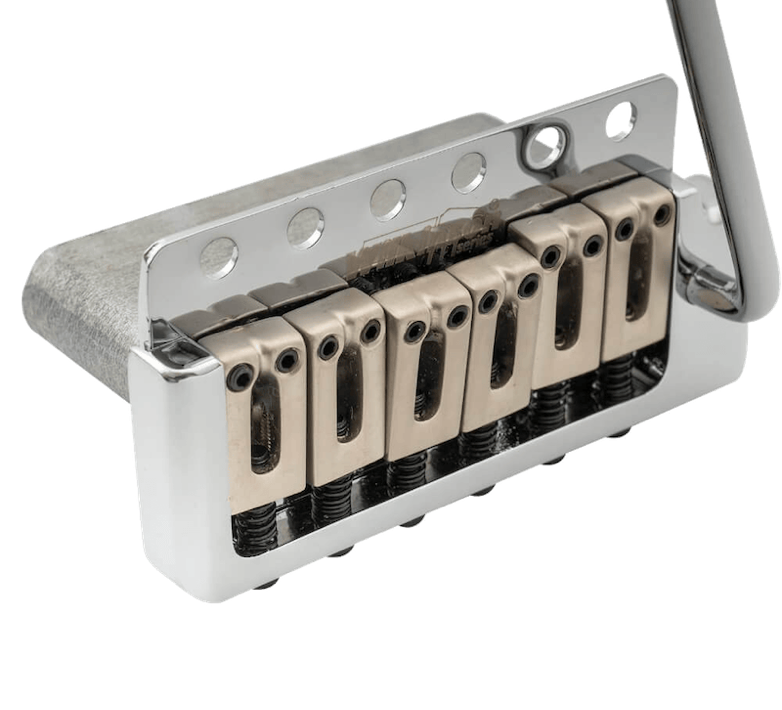

WOV09
Style: 6-Screw Mount PRS Style
Stud Spacing: 2-7⁄32" (56mm)
String Spacing: 2 -1/16 (52.5mm)
Block: Full Size Zink block (40mm)
Saddles: Block Steel Saddles
Arm Mount: Push-in trough Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Black or Gold available.
OTHER:

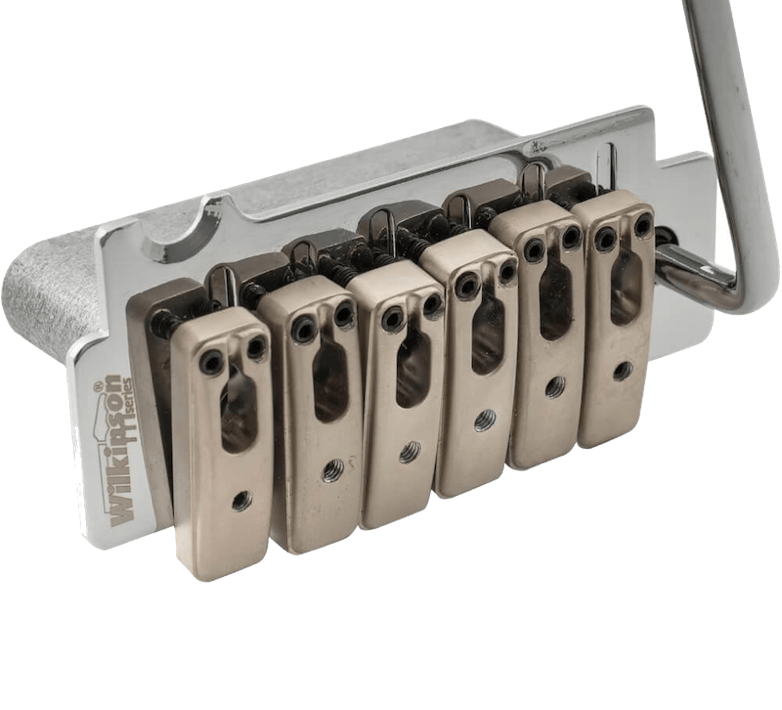

WOV10
Style: 2-Point Moden Flat Slide Mount
Stud Spacing: Universal (Fits all spacings)
String Spacing: 2 1/8 (52.5mm)
Block: Full Size Zink block (36mm)
Saddles: Top Slide Mount Aluminum Saddles
Arm Mount: 5mm Push- Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome or Gold available.
OTHER:
Intonation on these can be a nuisance. it requires detuning string fully before moving the saddles.
Wilkinson WV- Models
These have less aluminum in the mix. Various styles covers the WV line.

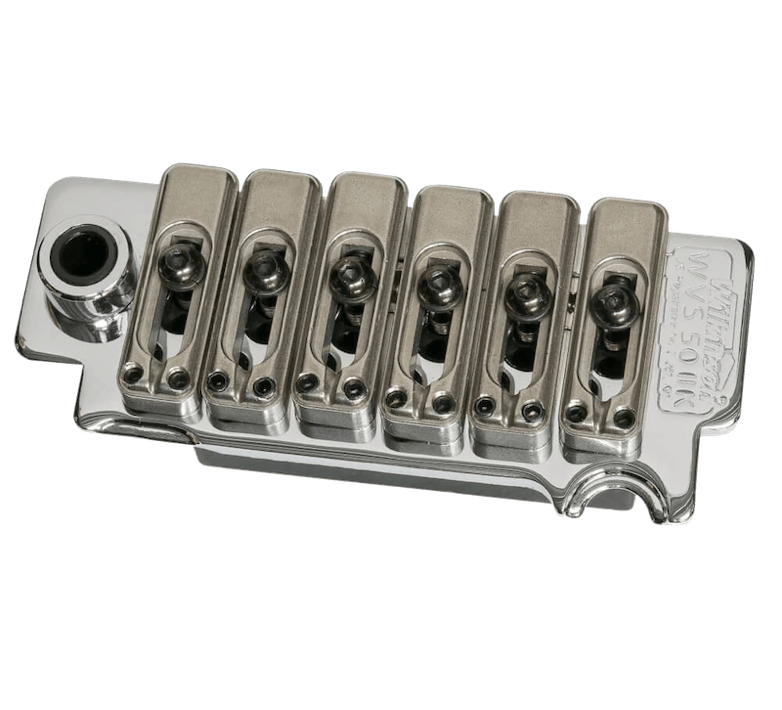

WVS50IIK
Style: 2-Point Moden Flat Slide Mount
Stud Spacing: Universal (Fits all spacings)
String Spacing: 2 1/16 (52.5mm)
Block: Full Size Zink block (36mm)
Saddles: Top Slide Mount Aluminum Saddles
Arm Mount: 5mm Push-In Cylinder Top Mount
Includes: Spring, Screws, Arm, Claw
Colors: Chrome, Nickel, Black & Gold
OTHER:
Not to be confused with the more higher end VS50IIKR.

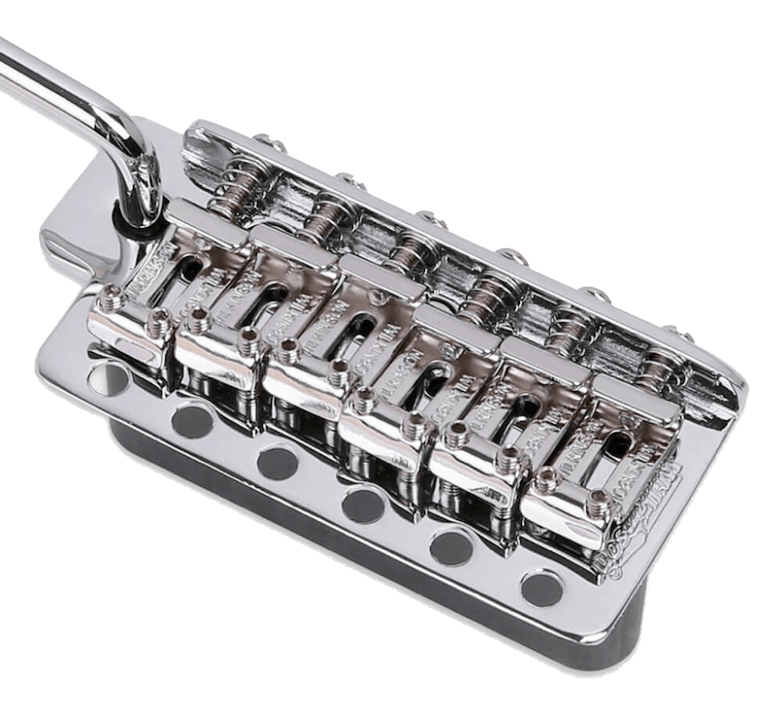

WVC-SB
Style: 6-Screw Original
Mount Spacing: 2-7/32 (56mm)
String Spacing: 2 1/8 (54mm)
Block: Full Size Steel block (42.3mm) w/ Staggered Holes
Saddles :Chromed Bent Steel Saddles (Logo)
Arm Mount: 5mm Push-In Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome or Gold available.
OTHER:
Korean made.

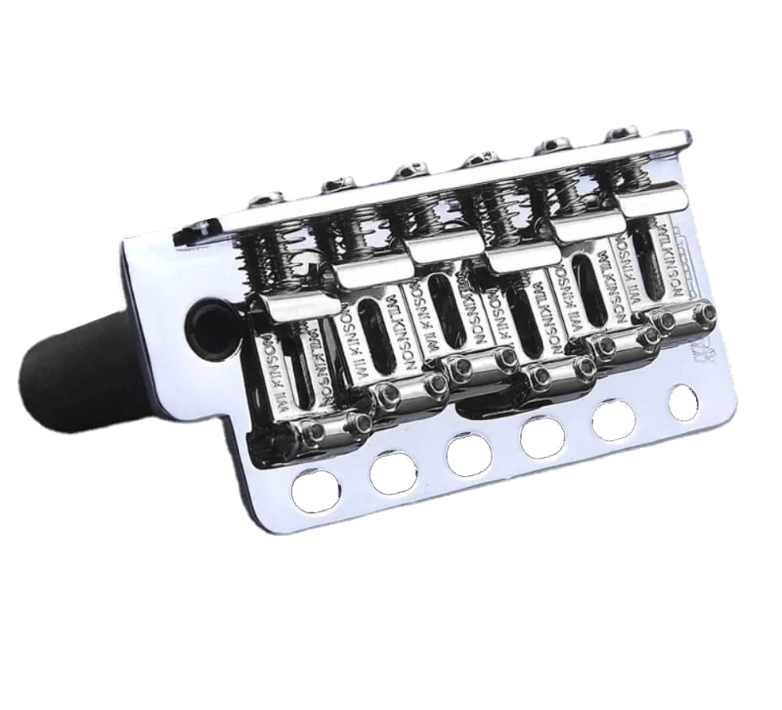

WV6-SB
Style: 6-Screw (5+1 Mounting Holes)
Mount Spacing: Universal
String Spacing: 2-1/8 (54mm)
Block: Full Size Steel block (41mm) w/ Staggered Holes
String Holes: Staggered
Saddles :Nickel Bent Steel Saddles (Logo)
Arm Mount: 5mm Push-In Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Nicke, Black or Gold available.
OTHER:
Black powdercoated block.

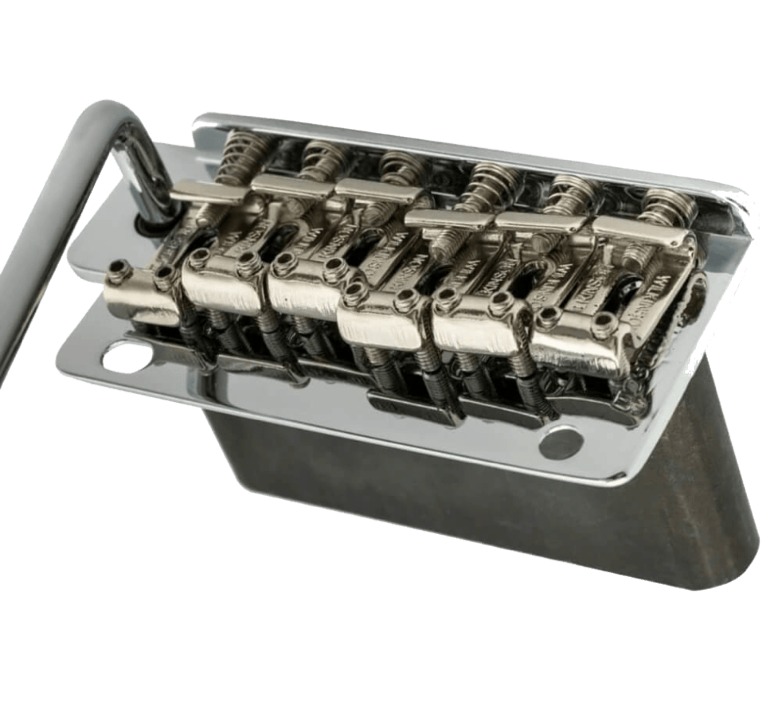

WV2-SB
Style: 2-Screw (1+1 Mounting Holes)
Mount Spacing: 54-57mm (Universal)
String Spacing: 2-1/8 (54mm)
Block: Full Size Steel block (41mm) w/ Staggered Holes
String Holes: Staggered
Saddles :Nickel Bent Steel Saddles (Logo)
Arm Mount: 5mm Push-In Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Nicke, Black or Gold available.
OTHER:
This is like a hybrid of 2-point and 6-Screw

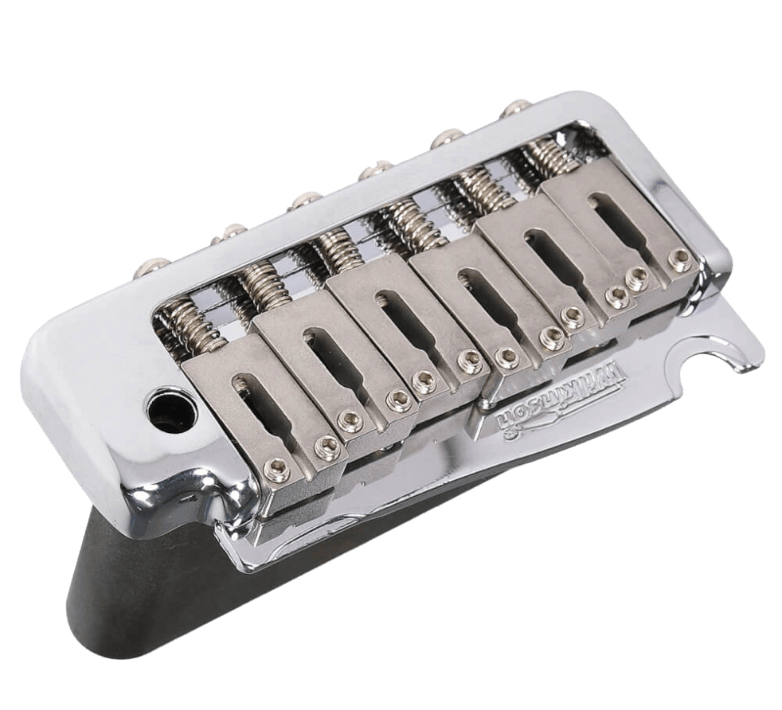

WVP-SP
Style: 2-Point PRS-Style
Mount Spacing: 53-62mm Universal
String Spacing: 2-1/8 (54mm)
Block: Full Size Steel block (41mm) w/ Staggered Holes
String Holes: Staggered
Saddles :Stainless Steel Block Saddles
Arm Mount: 5mm Push-In Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Nickel, Black or Gold available.
OTHER:
This is like a hybrid of 2-point and 6-Screw.

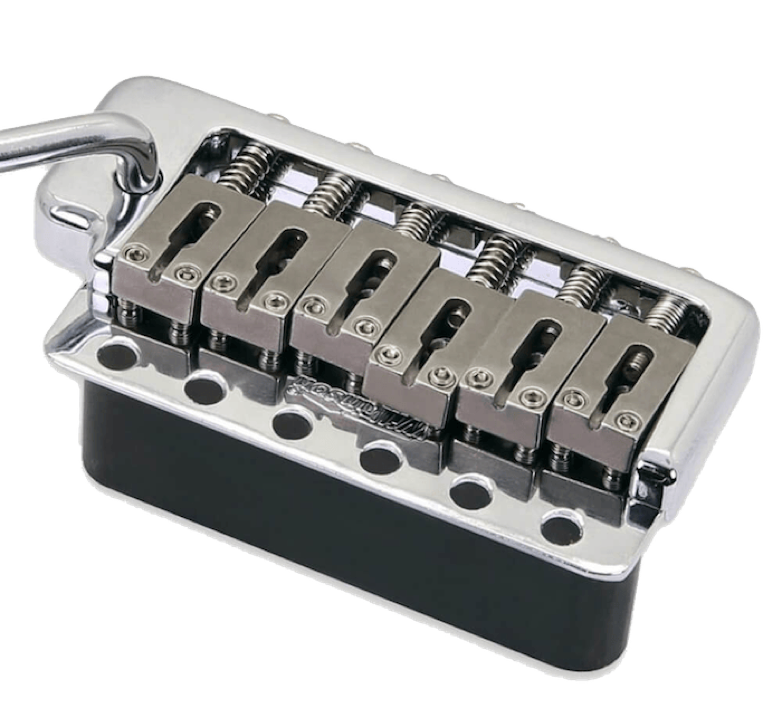

WVPC-SB
Style: 6-Screw Vintage PRS-Style
Mount Spacing: 2-7/32 (56mm)
String Spacing: 2-1/8” (54mm)
Block: Full Size Steel block (41mm) w/ Staggered Holes
String Holes: Staggered
Saddles :Nickel Bent Steel Saddles (Logo)
Arm Mount: 5mm Push-In Delrin bushing (+tension screw)
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Black or Gold available.
OTHER:
Floyd Rose Models

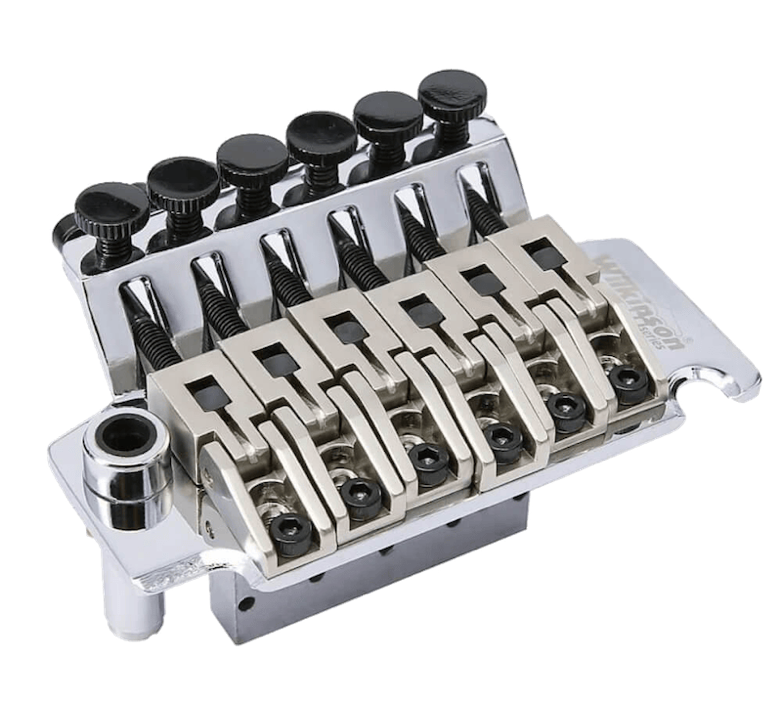

WODL1
Style: Double Locking System
Post Spacing: 74mm
String Spacing: 2 1/8 (54mm)
Block: Die Cast Zink 50x36mm
Baseplate: Steel
Saddles: Steel
Arm: Chrome 5mm
Arm Mount: Cylinder Push-In
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Or Black
OTHER:
By
The Gotoh licenced bridges has been made since 1986. Budgetwise, these models falls between the High-End and the Mid-Range bridges.

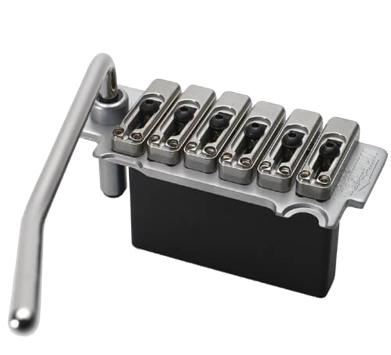

VS100N
Style: 2-Point Modern
Post Spacing: Universal (Stud Lock System)
String Spacing: 2-1/8 (54mm)
Block: Zamak 3 Zink Alloy 41mm
Saddles: Slide Block Saddles
Arm: Chrome 5.5mm
Arm Mount: Cylinder Push-In
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Gold, Black Or Cosmo Black
OTHER: Made under the collaboration of James Tyler
LEFT HAND MODEL AVAILABLE

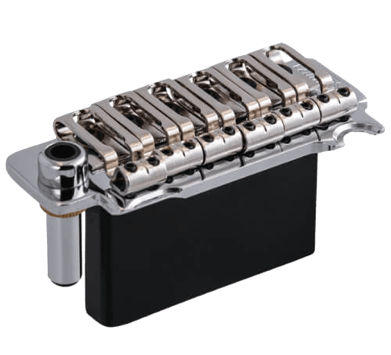

VG300
Style: 2-Point Modern
Post Spacing: Universal
String Spacing: 2 1/8 (54mm)
Block: Zamak 3 (Zink Alloy) 41mm
Saddles: Top Slide Steel Saddles
Arm: Chrome 5.5mm
Arm Mount: Cylinder Push-In
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Gold, Black Or Cosmo Black
OTHER:

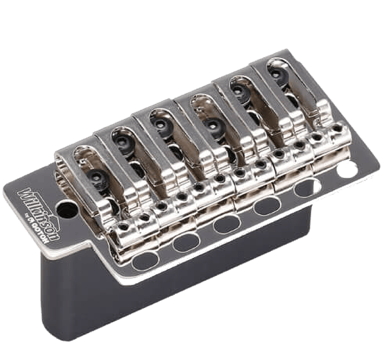

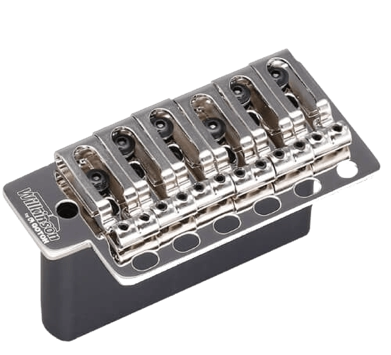

VSVG
Style: 6-Screw 5+1
Post Spacing: Universal (Fits all)
String Spacing: 2-1/8 (54mm)
Block: Die Cast Zink 41mm
Saddles: Bent Steel Hybrid Top-Lock
Arm: Chrome 5mm
Arm Mount: Cylinder Push-In
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Gold, Black Or Cosmo Black
OTHER:

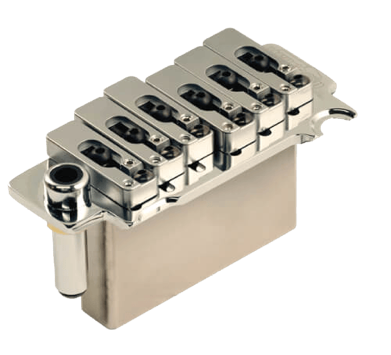

VS1300
Style: 2-Point Modern
Post Spacing: Universal (Fits all)
String Spacing: 2-1/8 (54mm)
Block: Billet Steel Block 40mm (Deep Drilled)
Saddles: Slide Block Saddles w/ String Lock
Arm: 5.5mm (A7 Model)
Arm Mount: Cylinder Push-In
Includes: Spring, Screws, Arm, Claw
Colors: Chrome Gold, Black Or Cosmo Black
OTHER:
